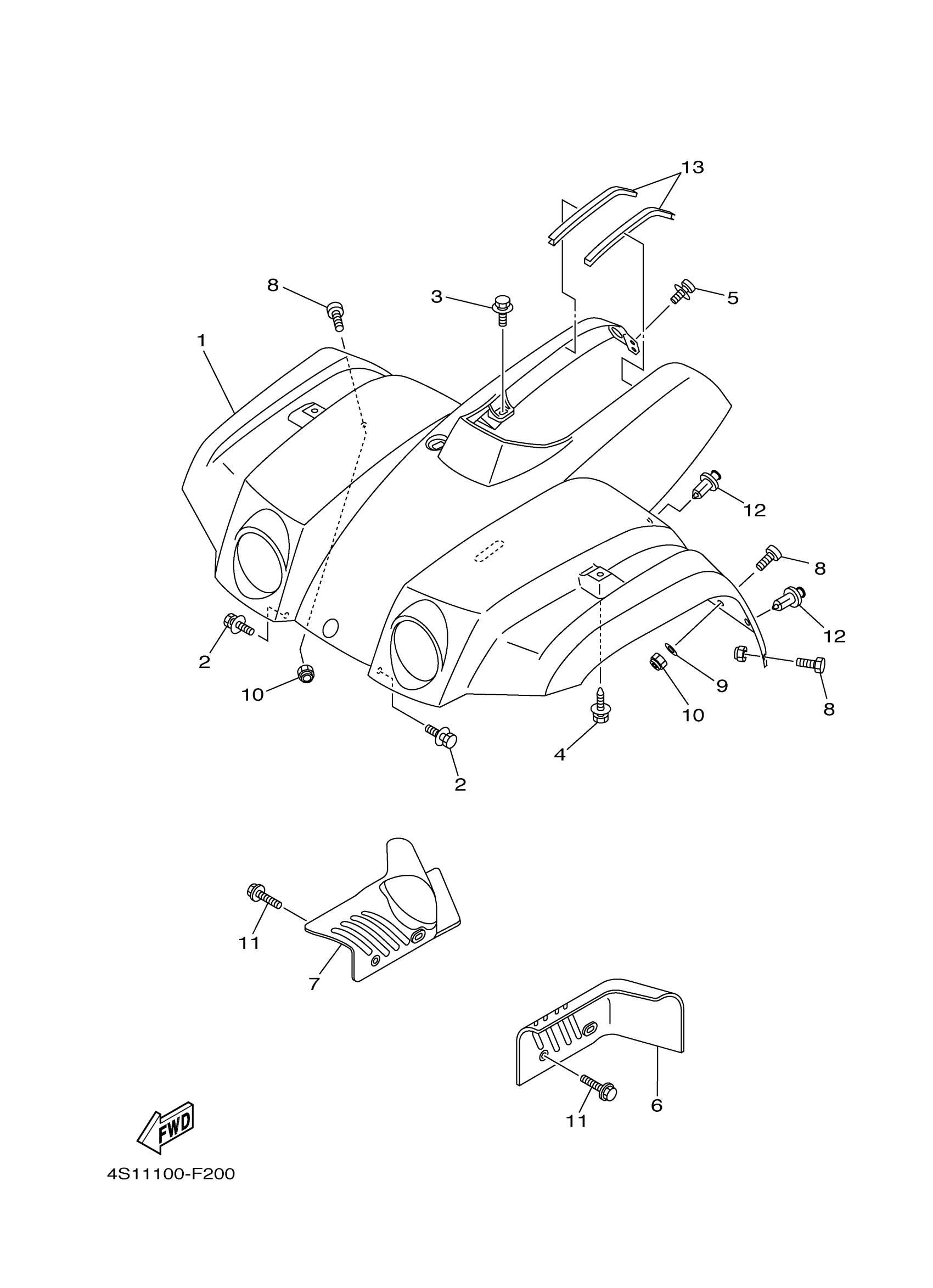

Yamaha YFM40FBHW (BIG BEAR 400 4WD HUNTER-IRS) 4S14 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5FU-F1500-B0-00

Unavailable

2

BOLT, WITH WASHER (25K)

90119-06079-00

$0.95

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

6

FLAP, FRONT FENDER

4S1-F1521-00-00

Unavailable

7

FLAP 2

4S1-F1561-00-00

Unavailable

8

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

9

WASHER,PLATE

90201-068M4-00

$1.32

10

NUT, SELF-LOCKING

95617-06100-00

$2.17

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

RIVET

90269-08813-00

$0.50

13

MOLE, SIDE COVER 1

5FU-2171L-00-00

$5.86
