Description

Price

1

GASKET, CRANKCASE COVER 1

4KB-15451-01-00

$18.08

2

PIN, DOWEL(3VD)

99530-10114-00

$2.23

3

COVER, CRANKCASE 1

4WU-15411-01-00

$320.05

4

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$11.62

5

O-RING (2H9)

93210-14369-00

$5.80

6

BOLT, SMALL FLANGE

95027-06030-00

$3.65

7

COVER, CRANKCASE 2

4KB-15421-00-00

$39.00

8

BOLT,SOCKET

91317-06025-00

$2.05

9

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

$20.58

10

PIN, DOWEL(3VD)

99530-10114-00

$2.23

11

COVER, CRANKCASE 3

4WU-15431-00-00

Unavailable

12

OIL SEAL (3Y1)

93102-14209-00

$9.77

13

OIL SEAL (12X22X5-371)

93102-12106-00

$10.14

14

PLUG, OIL LEVEL

4KB-15362-00-00

$39.45

15

O-RING (5Y1)

93210-19522-00

$5.86

16

BOLT, SMALL FLANGE

95027-06030-00

$3.65

17

BOLT, SMALL FLANGE

95027-06050-00

$1.82

18

BEARING(55X)

93306-07801-00

$51.93

19

OIL SEAL

93102-28476-00

$20.15

20

WASHER, THRUST

1UY-15719-00-00

$21.95

21

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.55

22

BOLT, SMALL FLANGE

95027-06040-00

$2.48

23

BEARING(37F)

93306-20335-00

$29.71

24

OIL SEAL (21V)

93101-17113-00

$10.51

25

PLATE, BEARING COVER

4SH-15381-00-00

Unavailable

26

SCREW, COUNTERSUNK (21V)

90151-06025-00

$5.74

27

CLAMP(4KB)

90465-08377-00

Unavailable

28

BRACKET

4KB-18128-00-00

Unavailable

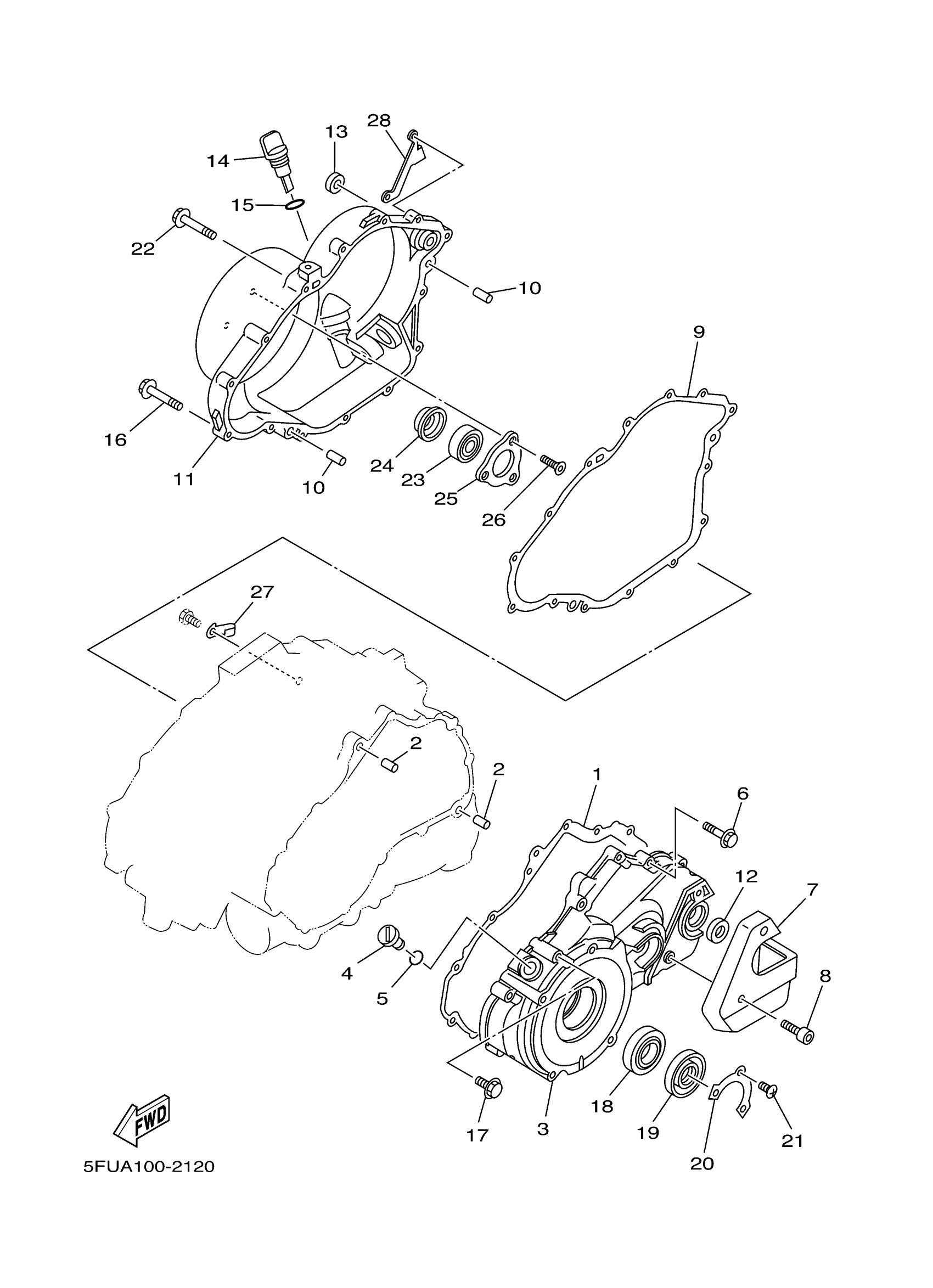

Yamaha YFM40FBHW (BIG BEAR 400 4WD HUNTER-IRS) 4S14 2007 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 3

PLATE, BEARING COVER

CLAMP(4KB)

BRACKET
