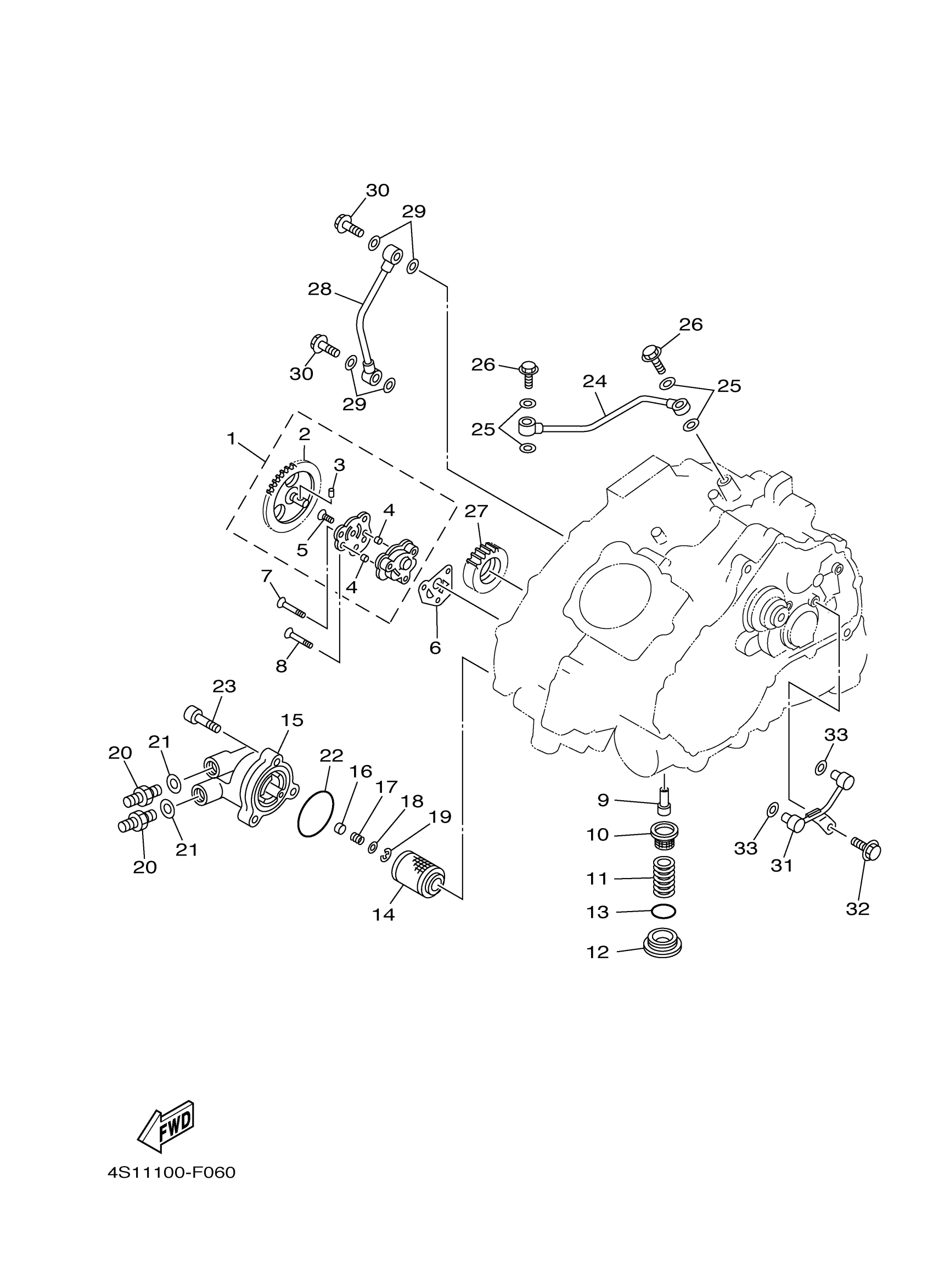

Yamaha YFM40FBEW (BIG BEAR 400 IRS EXPLORING) 4S11 2007 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

1UY-13300-00-00

$173.44

2

GEAR, PUMP DRIVEN 2

1UY-13326-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$1.88

4

PIN, DOWEL

93603-07073-00

$5.20

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

GASKET, PUMP COVER

3GD-13329-00-00

$6.46

7

SCREW, FLAT

98707-06030-00

$6.08

8

SCREW, FLAT

98707-06030-00

$6.08

9

PIPE, OIL 1

2XK-13416-00-00

$6.62

10

STRAINER, OIL

51Y-13411-00-00

$31.03

11

SPRING, COMPRESSION (3Y1)

90501-18576-00

$6.17

12

PLUG, DRAIN

4HC-15351-00-00

$16.28

13

O-RING (5X4)

93210-35512-00

$11.12

14

ELEMENT ASSY, OIL CLEANER

1UY-13440-02-00

$14.64

15

COVER, OIL ELEMENT

4KB-13447-00-00

$126.28

16

PLUG

1YW-13497-00-00

$6.46

17

SPRING, COMPRESSION(1YW)

90501-082E3-00

$3.05

18

WASHER(6TA)

92907-06600-00

$0.78

19

CIRCLIP(1YW)

93420-13073-00

$6.69

20

JOINT

1S3-13132-00-00

$13.85

21

GASKET 256131670000

90430-14043-00

$6.46

22

O-RING (4X7)

93210-54452-00

$9.08

23

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

24

PIPE, DELIVERY 2

4KB-13171-00-00

$47.83

25

GASKET

90430-08119-00

$4.70

26

BOLT, UNION

90401-08006-00

$5.48

27

GEAR, PUMP DRIVE

4KB-13324-00-00

$53.48

28

PIPE, DELIVERY 1

4KB-13161-01-00

$65.18

29

GASKET

90430-08119-00

$4.70

30

BOLT, UNION

90401-08004-00

$6.31

31

PIPE, DELIVERY 3

4KB-13181-00-00

$42.29

32

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

33

O-RING (26H)

93210-06632-00

$6.68
