Description

Price

1

FUEL TANK COMP.

5FU-F4110-11-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$53.05

3

FUEL COCK ASSY 1

3JN-24500-10-00

$41.55

4

SEAL, COCK

3AJ-24534-01-00

$9.32

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

6

O-RING

4X8-24512-00-00

$7.51

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

SCREW 256241430000

90149-06011-00

$1.58

9

GROMMET (4V1)

90480-18290-00

$7.02

10

COLLAR (36R)

90387-066J1-00

$6.86

11

BOLT, WITH WASHER

90119-06883-00

$1.20

12

GROMMET(38W)

90480-01400-00

$10.06

13

WASHER, PLATE

90201-06090-00

$5.17

14

COLLAR (1T2)

90387-07598-00

$4.83

15

BOLT, WITH WASHER

90119-06883-00

$1.20

16

HOSE (L170)

90445-118C6-00

Unavailable

17

CLIP

90467-100A1-00

$6.38

18

HOSE

90445-088C5-00

$4.06

19

FUEL METER ASSY

4SH-24260-11-00

$69.76

20

HOUSING, FUEL METER

4SH-24261-00-00

$15.04

21

DAMPER, LOCATING 1

5FU-F4181-00-00

$25.66

22

DAMPER, PLATE 2

5FU-F414J-00-00

Unavailable

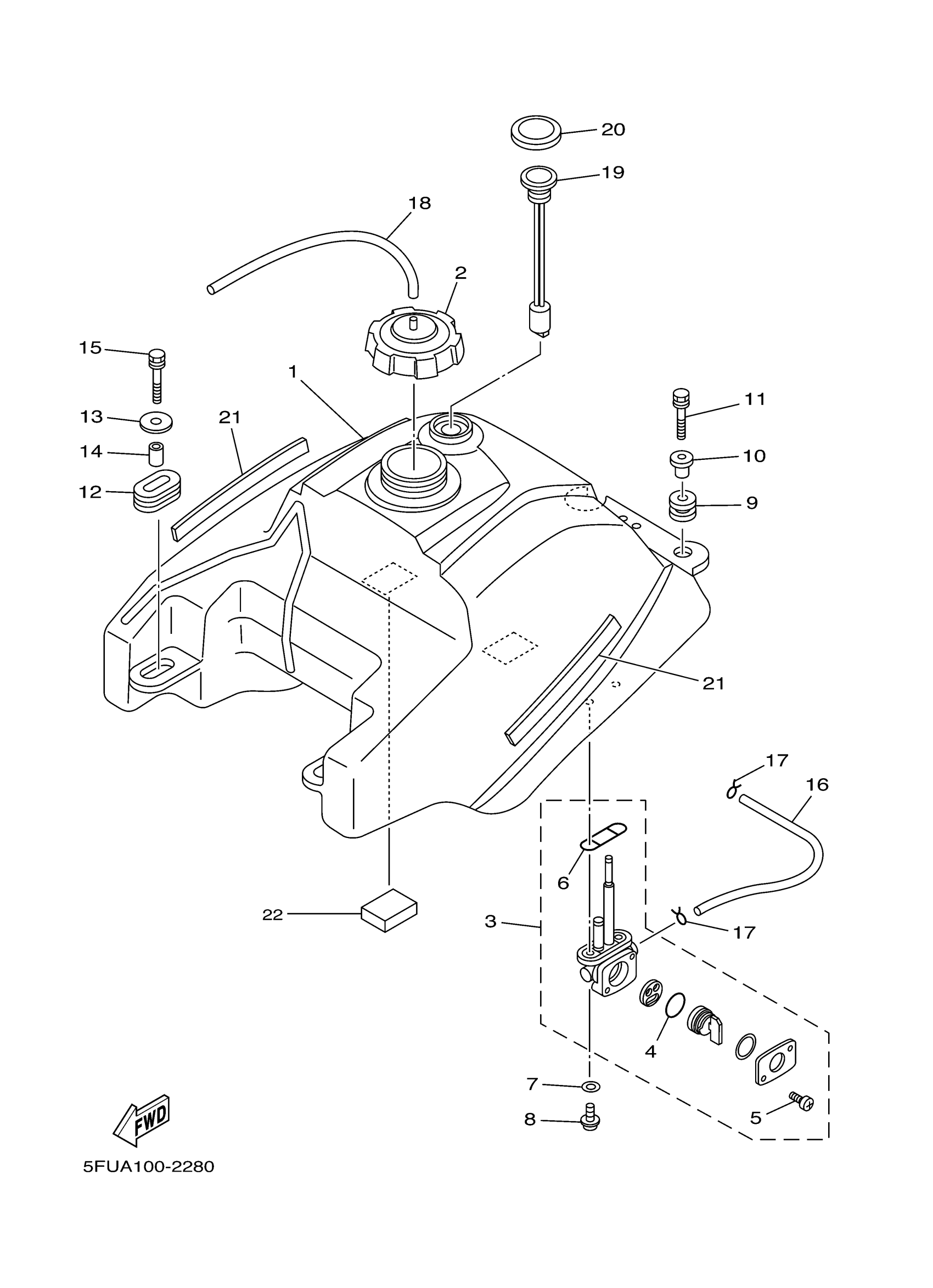

Yamaha YFM40FBEW (BIG BEAR 400 IRS EXPLORING) 4S11 2007 FUEL TANK Diagram

FUEL TANK COMP.

HOSE (L170)

DAMPER, PLATE 2
