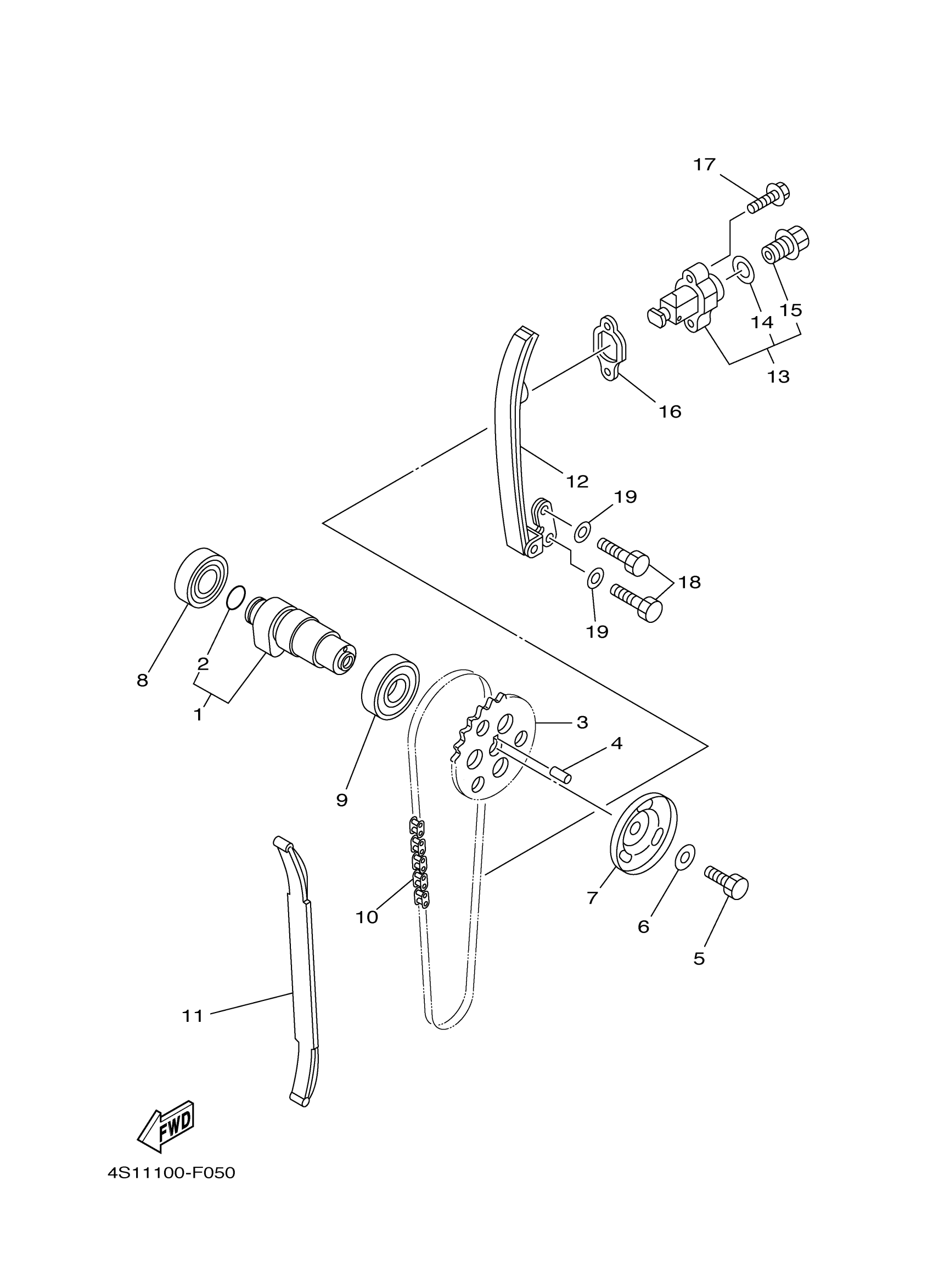

Yamaha YFM40FBEW (BIG BEAR 400 IRS EXPLORING) 4S11 2007 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT ASSY 1

5UH-12170-10-00

$172.65

. O-RING

93210-17003-00

$4.74

SPROCKET, CAM CHAIN

5YT-12176-00-00

$51.47

PIN,DOWEL (603)

93604-10011-00

$5.10

BOLT (583)

90101-10303-00

$6.25

WASHER, PLATE (3L6)

90201-10774-00

$6.25

PLATE, BREATHER 2

4KB-11145-00-00

$10.18

BEARING(3BN)

93306-00438-00

$32.22

BEARING(1FF)

93306-00519-00

$31.24

CHAIN, CAM SHAFT (1L9)

94500-02092-00

$68.10

GUIDE, STOPPER 1

2JN-12231-00-00

$82.36

GUIDE, STOPPER 2

4KB-12241-00-00

$80.77

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$148.89

GASKET, TENSIONER

31G-12214-00-00

$12.27

PLUG

31G-12222-00-00

$21.83

GASKET, TENSIONER CASE

3GD-12213-00-00

$5.75

BOLT, SMALL FLANGE

95027-06025-00

$3.18

BOLT, HEXAGON

97017-06016-00

$6.18

WASHER(6TA)

92907-06600-00

$0.78
