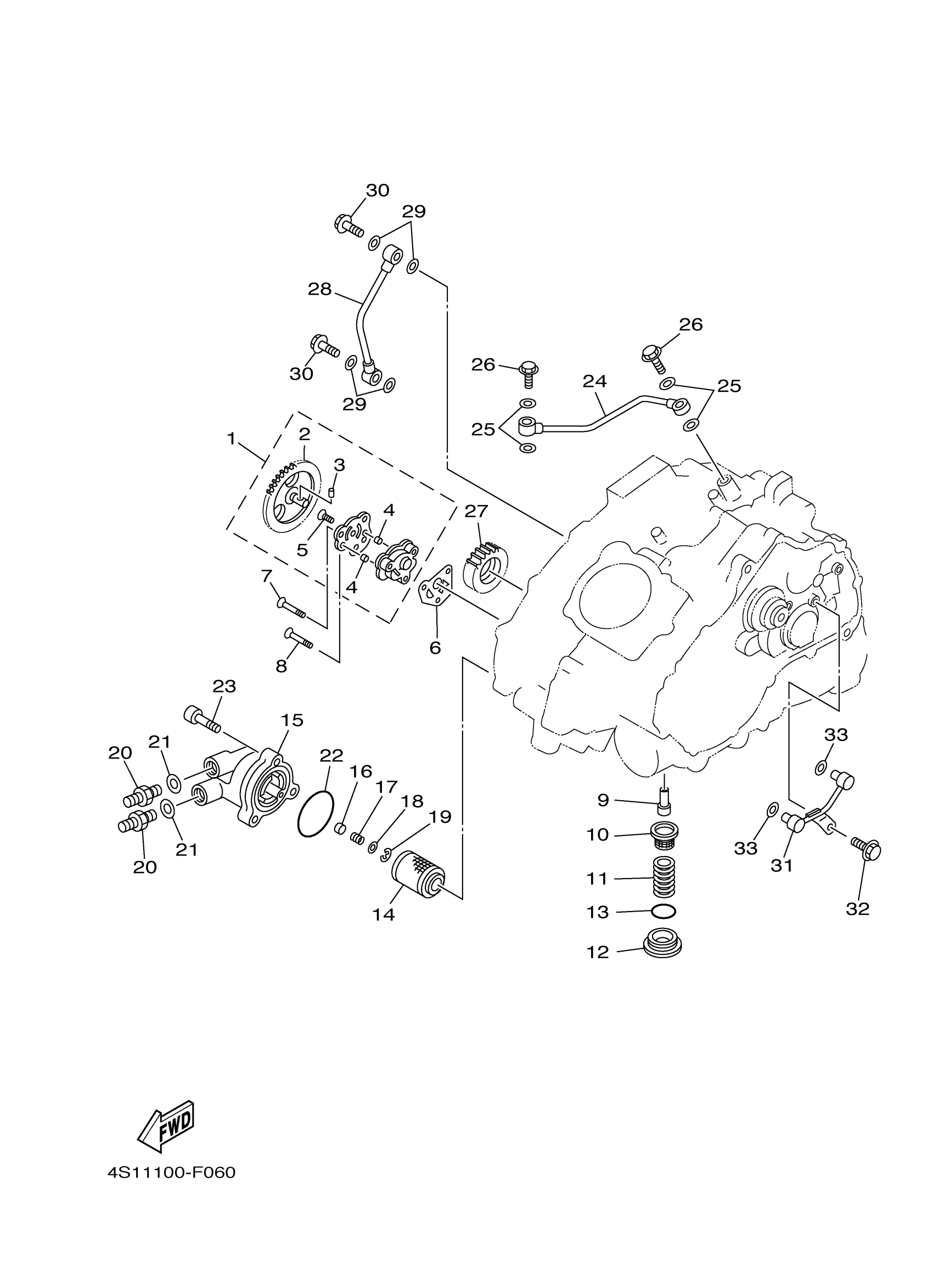

Yamaha YFM40FBAGR (BIG BEAR 400 4WD) 4S1H 2011 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

1UY-13300-00-00

Unavailable

2

GEAR, PUMP DRIVEN 2

1UY-13326-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$1.85

4

PIN, DOWEL

93603-07073-00

$5.88

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$6.84

6

GASKET, PUMP COVER

3GD-13329-00-00

$6.16

7

SCREW, FLAT HEAD

98702-06030-00

$3.47

8

SCREW, FLAT HEAD

98702-06030-00

$3.47

9

PIPE, OIL 1

2XK-13416-00-00

$6.52

10

STRAINER, OIL

51Y-13411-00-00

$41.99

11

SPRING, COMPRESSION (3Y1)

90501-18576-00

$6.08

12

PLUG, DRAIN

4HC-15351-00-00

$15.52

13

O-RING (5X4)

93210-35512-00

$13.99

14

ELEMENT ASSY, OIL CLEANER

1UY-13440-02-00

$14.20

15

COVER, OIL ELEMENT

4KB-13447-00-00

$124.36

16

PLUG

1YW-13497-00-00

Unavailable

17

SPRING, COMPRESSION(1YW)

90501-082E3-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

CIRCLIP(1YW)

93420-13073-00

Unavailable

20

JOINT

1S3-13132-00-00

Unavailable

21

GASKET 256131670000

90430-14043-00

Unavailable

22

O-RING (4X7)

93210-54452-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

24

PIPE, DELIVERY 2

4KB-13171-00-00

Unavailable

25

GASKET

90430-08119-00

Unavailable

26

BOLT, UNION

90401-08006-00

Unavailable

27

GEAR, PUMP DRIVE

4KB-13324-00-00

Unavailable

28

PIPE, DELIVERY 1

4KB-13161-01-00

Unavailable

29

GASKET

90430-08119-00

Unavailable

30

BOLT, UNION

90401-08004-00

Unavailable

31

PIPE, DELIVERY 3

4KB-13181-00-00

Unavailable

32

BOLT, FLANGE

95022-06012-00

Unavailable

33

O-RING (26H)

93210-06632-00

Unavailable
