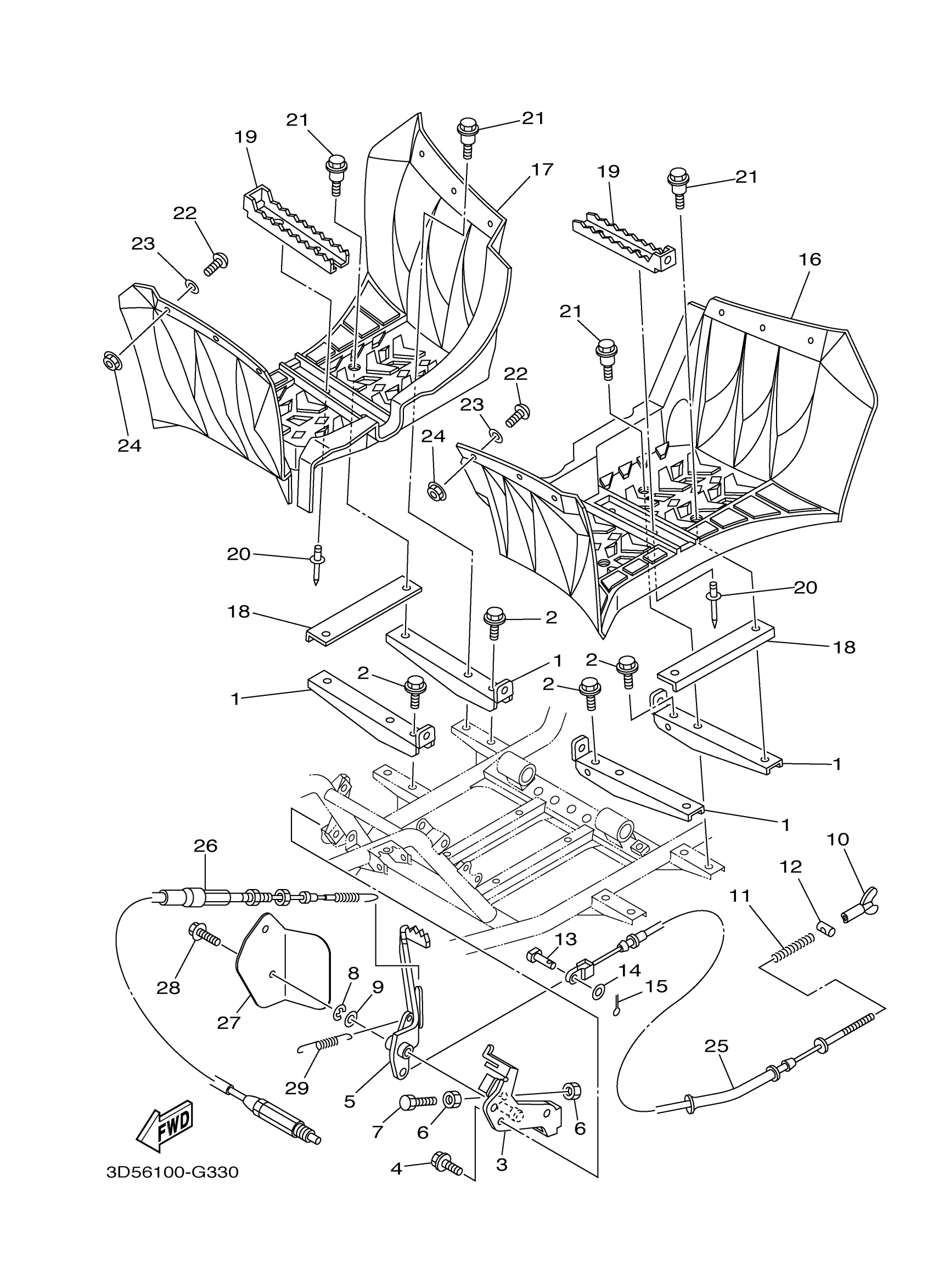

Yamaha YFM35XXGY (WOLVERINE 350 2WD) 3D56 2008 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

3C2-F7471-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$3.98

3

BRACKET, FOOTREST

5TE-F7412-11-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$3.98

5

PEDAL, BRAKE

5TE-F7211-00-00

$16.11

6

NUT(JN5)

95317-06700-00

$6.69

7

BOLT, HEXAGON

97017-06020-00

$2.55

8

CIRCLIP (137)

93430-10015-00

$7.48

9

WASHER, PLATE

90201-14023-00

$5.25

10

NUT, AJUSTING

20E-26343-00-00

$22.28

11

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

12

PIN 1562723700

90249-12008-00

$4.70

13

PIN, CLEVIS

90240-08005-00

$6.17

14

WASHER, PLATE

90201-08066-00

$6.35

15

PIN, COTTER

91490-20025-00

$1.31

16

COVER 1

3C2-F7453-00-00

Unavailable

17

COVER 2

3C2-F7463-00-00

Unavailable

18

PLATE 1

5ND-F7445-00-00

$8.25

19

ARM 1

3C2-F741A-00-00

Unavailable

20

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.32

21

BOLT

90109-06072-00

$5.02

22

SCREW(3YF)

90149-05299-00

$3.52

23

WASHER, PLATE

90201-05042-00

$2.77

24

NUT, NYLON

95707-05300-00

$2.74

25

CABLE, BRAKE

5TE-26361-00-00

$67.31

26

CABLE, CONTROL 2

5GH-2637F-11-00

$50.52

27

PROTECTOR

5UH-F7491-01-00

Unavailable

28

BOLT, WITH WASHER

97527-06512-00

$2.46

29

SPRING, TENSION(2NL)

90506-12403-00

$6.68
