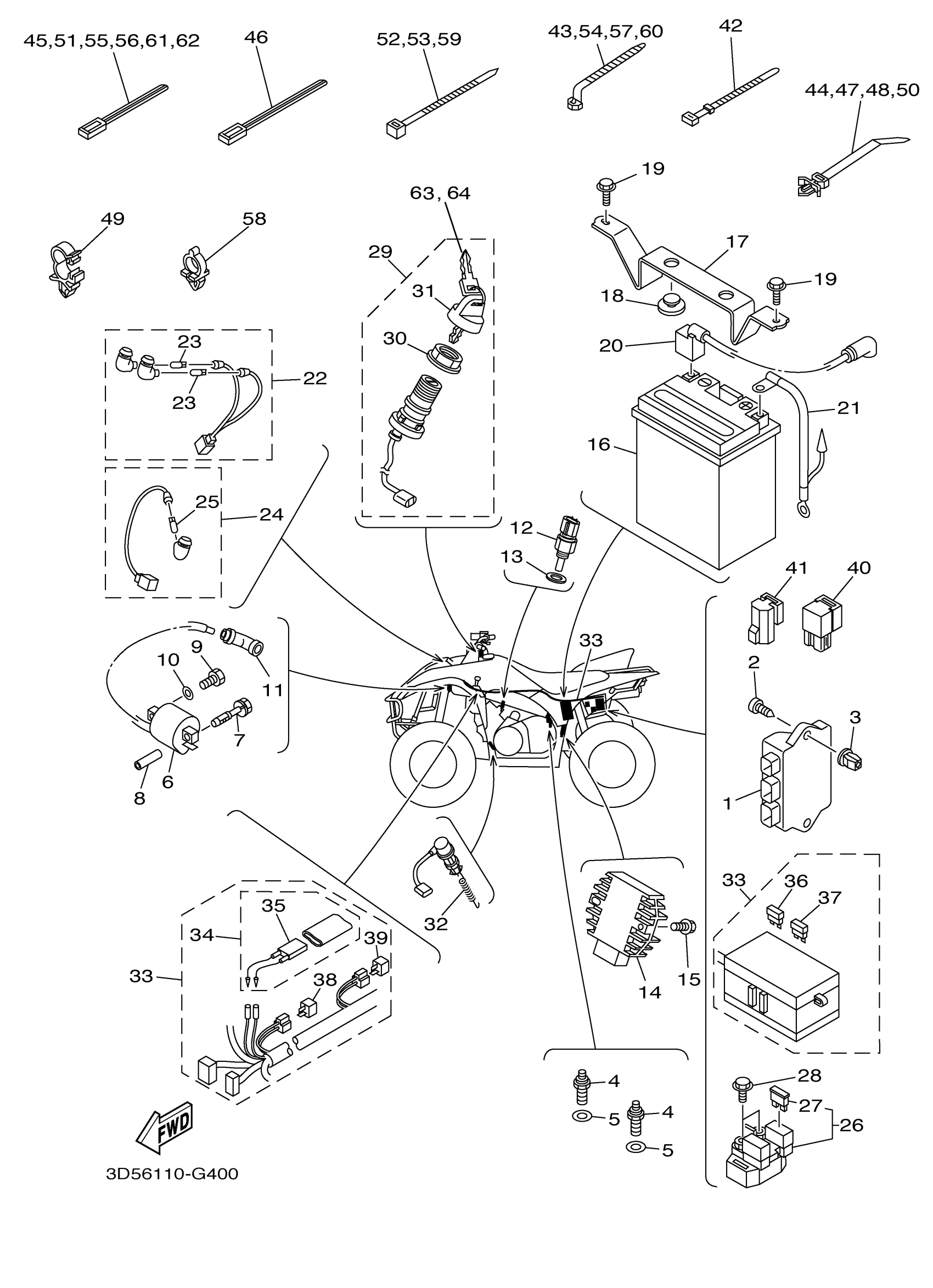

Yamaha YFM35XXGY (WOLVERINE 350 2WD) 3D56 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5UH-85540-00-00

$471.60

2

SCREW, TAPPING

97702-60420-00

$0.78

3

PLUG(4BP)

90338-08226-00

$1.63

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

5

GASKET (1KH,1.0T)

90430-10148-00

$4.74

6

IGNITION COIL ASSY

5KM-82310-03-00

Unavailable

7

BOLT

90109-06865-00

$0.74

8

SPACER

5UH-H1318-00-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$2.55

10

WASHER, PLAIN (646)

92990-06600-00

$2.48

11

PLUG CAP ASSY

3NS-82370-00-00

$31.58

12

THERMO UNIT

4GB-83591-10-00

$155.22

13

WASHER, PLATE 3412175700

90201-12172-00

$2.91

14

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

15

BOLT, FLANGE

95817-06020-00

$2.69

16

YTX14AHBS YUASA BATTERY - SA

YTX-14AHB-S0-00

$143.99

17

BRACKET, BATTERY

5TE-H2128-01-00

$6.65

18

PAD, BATTERY

371-82121-00-00

$7.91

19

BOLT, FLANGE

95817-06020-00

$2.69

20

WIRE, PLUS LEAD

3D5-H2115-00-00

Unavailable

21

WIRE, MINUS LEAD

5UH-H2116-00-00

$22.86

22

PILOT LIGHT ASSY

5TE-83530-00-00

$38.48

23

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

24

PILOT LIGHT ASSY

4KB-83530-31-00

$13.77

25

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

26

STARTER RELAY ASSY (RC19-026)

4XE-81940-12-00

$111.45

27

FUSE (20A)

2GV-82151-00-00

$4.21

28

BOLT, FLANGE

95022-06008-00

$6.26

29

MAIN SWITCH ASSY

5LP-82510-01-00

$60.18

30

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

31

CAP, KEY

3HN-82579-00-00

$12.27

32

STOP SWITCH ASSY

4KB-82530-11-00

$47.60

33

WIRE HARNESS ASSY

3D5-82590-00-00

$377.75

34

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

35

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

36

FUSE (15A)

67F-82151-50-00

$3.71

37

. FUSE (10A)

67F-82151-40-00

$6.67

38

DIODE ASSY

3WP-81980-00-00

$18.85

39

DIODE ASSY

4WA-81980-00-00

$25.93

40

RELAY ASSY

5DM-81950-01-00

$24.72

41

RELAY ASSY (29U-93)

29U-81950-93-00

$67.77

42

CLAMP

90464-51800-00

$11.86

43

CLAMP

90464-12830-00

$1.02

44

CLAMP

90464-25800-00

Unavailable

45

CLAMP(JN6)

90464-31827-00

$2.63

46

CLAMP(JN6)

90464-40825-00

$1.77

47

CLAMP

90464-25800-00

Unavailable

48

CLAMP

90464-25800-00

Unavailable

49

CLAMP

90464-16006-00

$8.31

50

CLAMP

90464-25800-00

Unavailable

51

CLAMP(JN6)

90464-31827-00

$2.63

52

CLAMP

90464-48800-00

$3.54

53

CLAMP

90464-48800-00

$3.54

54

CLAMP

90464-12830-00

$1.02

55

CLAMP(JN6)

90464-31827-00

$2.63

56

CLAMP(JN6)

90464-31827-00

$2.63

57

CLAMP

90464-12830-00

$1.02

58

CLAMP

90464-12830-00

$1.02

59

CLAMP

90464-48800-00

$3.54

60

CLAMP

90464-12830-00

$1.02

61

CLAMP(JN6)

90464-31827-00

$2.63

62

CLAMP(JN6)

90464-31827-00

$2.63

63

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

64

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
