Description

Price

1

SHAFT, SECONDARY

5UH-17681-20-00

$180.71

2

BEARING (5Y1)

93306-00426-00

$35.60

3

BEARING (5X5)

93306-20627-00

$66.08

4

COLLAR

90387-26001-00

$35.78

5

O-RING

93210-26001-00

$4.84

6

OIL SEAL

93102-42004-00

$26.25

7

AXLE, DRIVE

5UH-17421-10-00

$83.48

8

GEAR, MIDDLE DRIVE (21T)

5UH-17582-10-00

Unavailable

9

GEAR, HIGH WHEEL

5UH-17223-10-00

$68.23

10

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

11

SPROCKET, DRIVEN

5UH-17453-00-00

$30.72

12

WASHER PLATE 168171160000

90201-20278-00

$8.95

13

. BEARING

93310-420F2-00

$25.37

14

WASHER, PLATE

90201-17013-00

$3.23

15

CLUTCH, DOG

5UH-17285-00-00

$66.72

16

. O-RING

93210-17003-00

$4.74

17

O-RING (583 VALVE GUIDE)

93210-14299-00

$4.91

18

BEARING(3LD)

93306-20464-00

$34.40

19

BRG,R-B 6203 42MM 70G KY

93306-20306-00

$32.16

20

CHAIN

94591-54034-00

$36.49

21

SHAFT

5UH-17523-00-00

$105.35

22

CIRCLIP (4L0)

93440-25084-00

$3.96

23

GEAR, MIDDLE DRIVEN

5UH-17583-00-00

$79.75

24

PIN, DOWEL(3HN)

93603-14240-00

$1.57

25

CIRCLIP(59V)

93440-14155-00

$0.57

26

BEARING

93311-42077-00

$47.12

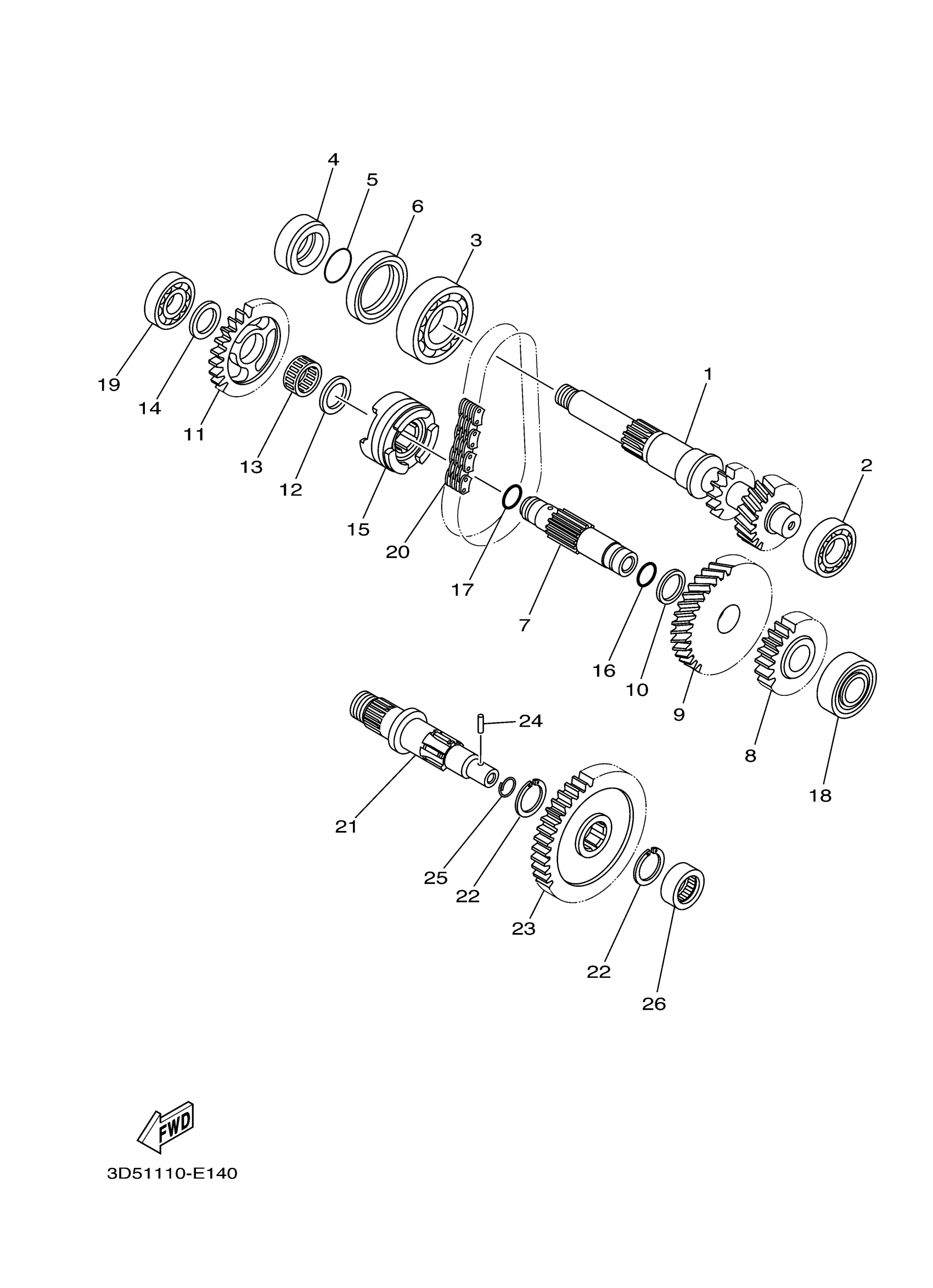

Yamaha YFM35XW (WOLVERINE 350 2WD SPORT) 3D54 2007 TRANSMISSION Diagram
