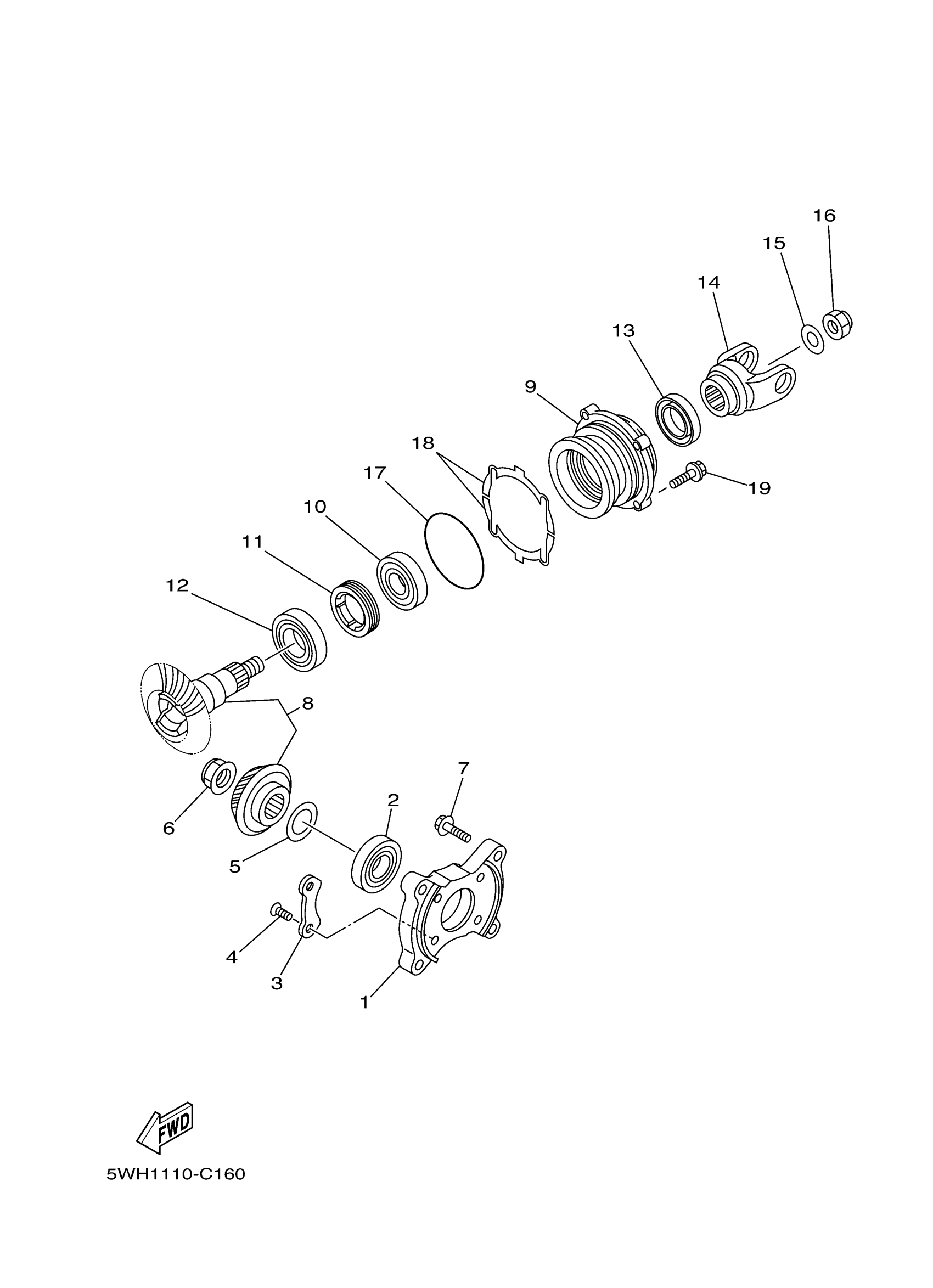

Yamaha YFM35XW (WOLVERINE 350 2WD SPORT) 3D54 2007 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

5UH-17521-00-00

$48.82

2

BEARING

93306-20532-00

$56.05

3

PLATE, BEARING COVER

11H-15383-02-00

$11.03

4

SCREW

90149-08013-00

$6.25

5

SHIM, PINION (0.1T)

5KM-17531-00-00

$6.46

5

SHIM, PINION (0.15T)

5KM-17531-10-00

$3.32

5

SHIM, PINION (0.2T)

5KM-17531-20-00

$3.74

5

SHIM, PINION (0.3T)

5KM-17531-30-00

$5.34

5

SHIM, PINION (0.4T)

5KM-17531-40-00

$3.74

5

SHIM, PINION (0.5T)

5KM-17531-50-00

$6.38

6

NUT

90179-22015-00

$24.97

7

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

8

PINION SET

5UH-17530-00-00

Unavailable

9

HOUSING, BEARING

5GH-17551-00-00

$191.57

10

BEARING(3RR)

93306-30560-00

$71.07

11

NUT(59V)

90179-65305-00

$37.15

12

BEARING (8U9)

93306-20712-00

$69.76

13

OIL SEAL (4H7)

93101-35097-00

$17.78

14

YOKE, JOINT

5GH-17556-01-00

Unavailable

15

WASHER, PLATE (1J7)

90201-14633-00

$5.25

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

17

O-RING (14X)

93210-78544-00

$10.65

18

SHIM, PINION (0.1T)

5GH-17531-00-00

$6.43

18

SHIM, PINION (0.15T)

5GH-17531-10-00

$6.43

18

SHIM, PINION (0.2T)

5GH-17531-20-00

$6.40

18

SHIM, PINION (0.3T)

5GH-17531-30-00

$5.93

18

SHIM, PINION (0.4T)

5GH-17531-40-00

$3.37

18

SHIM, PINION (0.5T)

5GH-17531-50-00

$6.43

18

SHIM, PINION (0.6T)

5GH-17531-60-00

$6.40

19

BOLT, WITH WASHER

97527-08530-00

$0.78
