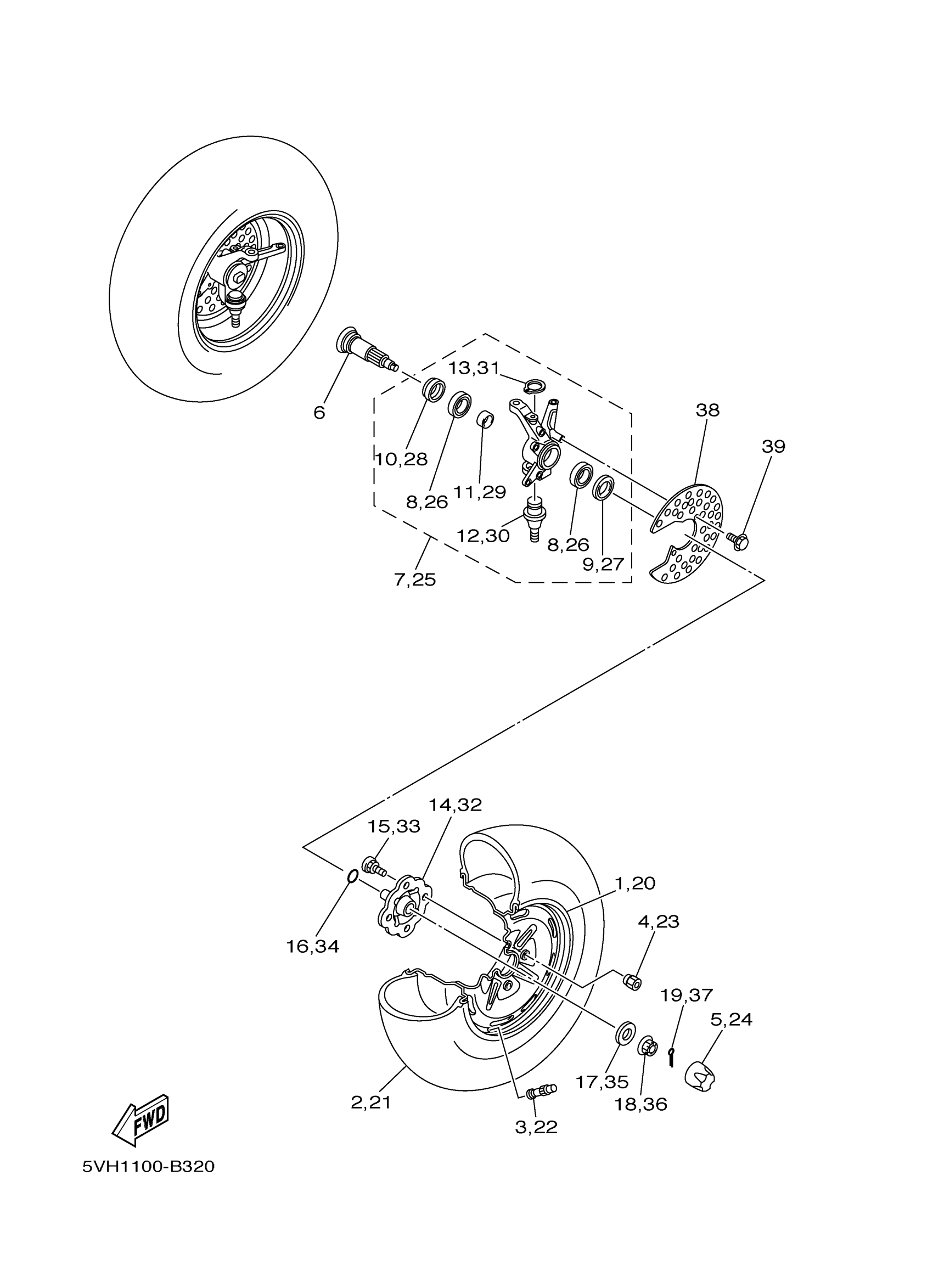

Yamaha YFM35XW (WOLVERINE 350 2WD SPORT) 3D54 2007 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

5ND-F5180-21-00

Unavailable

2

TIRE (AT23X8-12)

94108-12808-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT(2HR)

90179-10540-00

$3.92

5

CAP, WHEEL

5GT-2512A-00-00

$8.70

6

AXLE, WHEEL

5HA-25181-00-00

$177.00

7

STEERING KNUCKLE A

5ND-F3501-11-00

Unavailable

8

BEARING

93306-006Y2-00

$23.74

9

OIL SEAL

93106-38046-00

$14.64

10

OIL SEAL

93106-38047-00

$24.03

11

SPACER(2HR)

90560-30325-00

$11.37

12

BALL JOINT 1

37S-23549-01-00

$67.35

13

CIRCLIP

93410-32075-00

$6.97

14

HUB,FRONT

5ND-F5111-30-00

$62.33

15

BOLT, SERRATION

90114-10014-00

$2.74

16

O-RING(47X)

93210-27666-00

$5.53

17

WASHER, PLATE

90201-16804-00

$9.78

18

NUT, CASTLE

90171-16001-00

$19.52

19

PIN, COTTER

91490-30030-00

$7.15

20

WHEEL COMP.

5ND-F5180-21-00

Unavailable

21

TIRE (AT23X8-12)

94108-12808-00

Unavailable

22

VALVE, RIM

93900-00812-00

$7.49

23

NUT(2HR)

90179-10540-00

$3.92

24

CAP, WHEEL

5GT-2512A-00-00

$8.70

25

STEERING KNUCKLE A

5ND-F3502-11-00

Unavailable

26

BEARING

93306-006Y2-00

$23.74

27

OIL SEAL

93106-38046-00

$14.64

28

OIL SEAL

93106-38047-00

$24.03

29

SPACER(2HR)

90560-30325-00

$11.37

30

BALL JOINT 1

37S-23549-01-00

$67.35

31

CIRCLIP

93410-32075-00

$6.97

32

HUB,FRONT

5ND-F5111-30-00

$62.33

33

BOLT, SERRATION

90114-10014-00

$2.74

34

O-RING(47X)

93210-27666-00

$5.53

35

WASHER, PLATE

90201-16804-00

$9.78

36

NUT, CASTLE

90171-16001-00

$19.52

37

PIN, COTTER

91490-30030-00

$7.15

38

RING, WHEEL 1 (LEF

5ND-F514A-00-00

$6.31

39

BOLT, FLANGE

95817-06012-00

$1.49
