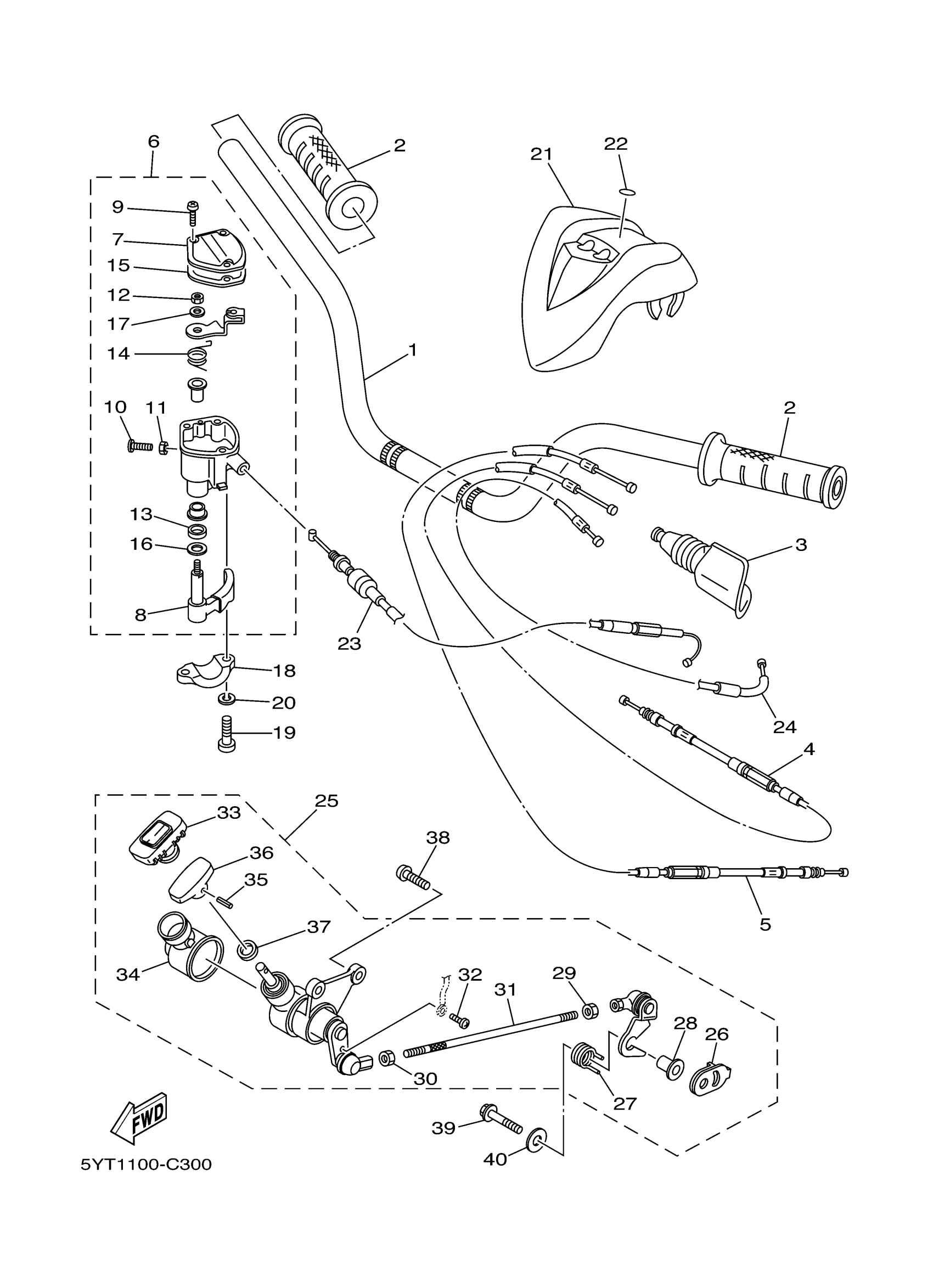

Yamaha YFM35RW (RAPTOR 350) 5YTG 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5YT-26111-10-00

$68.75

2

GRIP (LEFT)

5LP-26241-00-00

$21.75

3

COVER, HANDLE LEVER 1

31A-26372-00-00

$28.00

4

CABLE, CLUTCH

5YT-26335-10-00

$29.19

5

CABLE, BRAKE

5YT-26341-01-00

$59.38

6

THROTTLE LEVER ASSY

4KB-26250-22-00

Unavailable

7

CAP, GEAR

4KB-2628F-20-00

$31.31

8

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

9

SCREW(3HE)

90149-04278-00

$0.74

10

SCREW, PAN HEAD

98517-05020-00

$1.35

11

NUT, U

95617-05100-00

$6.68

12

NUT, HEXAGON SMALL

95317-05700-00

$6.18

13

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

14

SPRING

1NV-26304-00-00

$11.17

15

GASKET

4KB-2628G-00-00

$10.63

16

WASHER

1NV-26129-00-00

$6.43

17

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

18

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

19

SCREW, PAN HEAD

98517-05020-00

$1.35

20

WASHER(3SX)

92907-05100-00

$6.18

21

PROTECTOR, HANDLEBAR

5YT-26124-00-00

Unavailable

21

PROTECTOR, HANDLEBAR

5YT-26124-20-00

$25.78

22

TUNING FORK MARK

5GT-2836B-10-00

$14.37

23

CABLE, THROTTLE 1

5YT-26311-00-00

$34.42

24

CABLE, STARTER 1

5YT-26331-00-00

$38.58

25

REV. LEVER ASSY.

5YT-26150-00-00

Unavailable

26

LEVER

4SH-18198-00-00

$19.46

27

SPRING, TORSION(1YW)

90508-35764-00

$4.20

28

COLLAR

90387-0613B-00

$7.26

29

NUT(JN5)

95317-06700-00

$6.69

30

NUT (2H9)

90170-06228-00

$5.20

31

ROD, JOINT

3GD-26166-10-00

$5.28

32

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.45

33

GRIP, LEVER

1UY-26153-00-00

$19.78

34

COVER, HANDLE LEVER 1

1UY-26372-00-00

$11.38

35

PIN, SPRING (648)

91690-40016-00

$6.68

36

LEVER, LOCK

1UY-26157-00-00

$19.68

37

OIL SEAL

93109-08803-00

$7.85

38

BOLT, BUTTON HEAD

92012-08020-00

$2.15

39

95812-06035

95812-06035-00

$5.35

40

WASHER, PLATE

90201-06036-00

$6.26
