Description

Price

1

HUB, REAR

5YT-25311-00-00

$446.86

2

SPACER, BEARING

5YT-25317-00-00

$38.73

3

BEARING

93306-00710-00

$45.19

4

OIL SEAL

93106-46001-00

$12.69

5

BOLT(3GD)

90101-12695-00

$11.47

6

WASHER, PLATE (4N0)

90201-126A7-00

$6.28

7

NUT(3GG)

90179-12588-00

$5.65

8

BOLT(3GD)

90101-10689-00

$7.51

9

WASHER, PLATE (17K)

90201-106F2-00

$7.66

10

NUT(4KG)

90179-10658-00

$7.49

11

PULLER, CHAIN 1

3GD-25388-00-00

$19.79

12

BOLT(4SR)

90101-08777-00

$6.31

13

NUT(6TA)

95337-08600-00

$6.17

14

REAR WHEEL COMP.

5LP-25390-11-YX

$351.74

15

TIRE (AT20X10-9 DI-K778A T/L)

94110-09028-00

$148.89

16

VALVE, RIM(2GH)

93900-00030-00

$14.46

17

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$67.71

18

BOLT, SERRATION

90114-10013-00

$4.55

19

NUT, FLANGE(3BM)

95704-10500-00

$1.71

20

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.00

21

WASHER, PLATE

90201-14021-00

$5.14

22

NUT, CASTLE

90171-14004-00

$9.80

23

PIN, COTTER

91490-30030-00

$7.15

24

COLLAR, SPROCKET AXLE

5YT-25386-00-00

$130.67

25

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$37.78

26

BOLT

90109-10013-00

$6.11

27

NUT, SELF-LOCKING

90185-10011-00

$3.92

28

AXLE, WHEEL

5YT-F5381-19-00

Unavailable

29

NUT

90170-33010-00

$32.50

30

BOLT, SET (8K2)

90113-06039-00

$6.97

31

CHAIN

9Y581-87097-00

$103.44

32

JOINT, CHAIN

94681-87011-00

$4.89

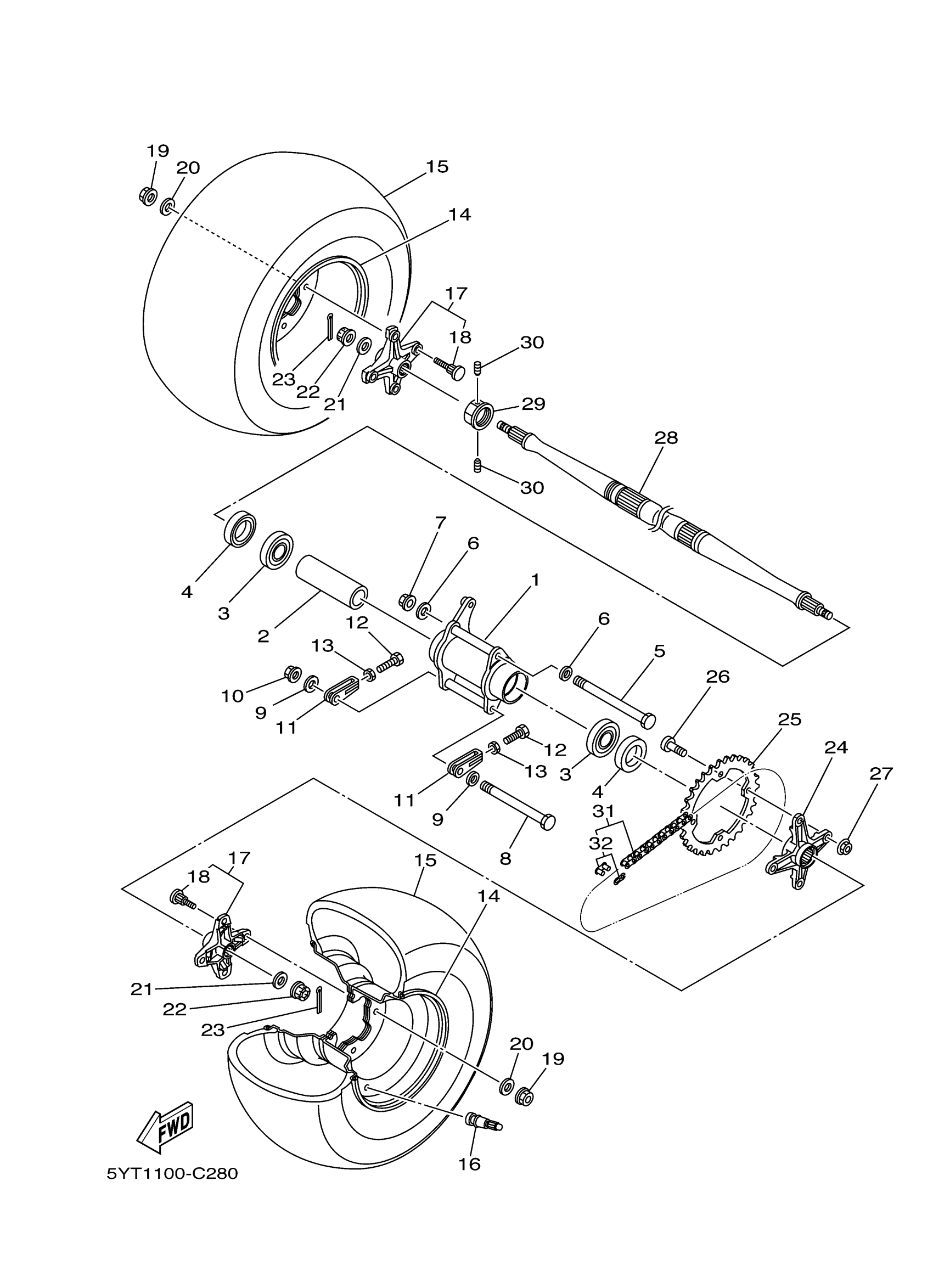

Yamaha YFM35RW (RAPTOR 350) 5YTG 2007 REAR WHEEL Diagram

AXLE, WHEEL
