Description

Price

1

REAR FENDER COMP.

5YT-W2161-30-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$2.74

3

BOLT, WITH WASHER

90119-06152-00

$2.74

4

SCREW(3JM)

90149-06306-00

$2.80

5

NUT, SELF-LOCKING(JA1)

90185-06153-00

$5.22

6

SCREW(3JM)

90149-06306-00

$2.80

7

NUT, SELF-LOCKING(JA1)

90185-06153-00

$5.22

8

SCREW(3JM)

90149-06306-00

$2.80

9

NUT, SELF-LOCKING(JA1)

90185-06153-00

$5.22

10

STAY, FENDER 1

5YT-21613-00-00

Unavailable

11

STAY, FENDER 2

5YT-21614-10-00

$8.55

12

BOLT, FLANGE

95817-08012-00

$3.98

13

FLAP

5LP-21621-00-00

$45.28

14

STAY 1

5YT-2164F-10-00

Unavailable

15

STAY 3

5YT-2164H-00-00

Unavailable

16

SCREW, BINDING (10V)

90154-05013-00

$4.71

17

SCREW, BINDING(3XV)

90154-06061-00

$6.68

18

COLLAR (420)

90387-06241-00

$6.18

19

NUT,SELF-LOCKING

95607-06200-00

$10.25

20

FLAP

5LP-21691-00-00

$59.25

21

STAY 2

5YT-2164G-10-00

$51.97

22

STAY 4

5YT-2164J-10-00

$25.69

23

SCREW, BINDING (10V)

90154-05013-00

$4.71

24

SCREW, BINDING(3XV)

90154-06061-00

$6.68

25

COLLAR (420)

90387-06241-00

$6.18

26

NUT,SELF-LOCKING

95607-06200-00

$10.25

27

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

28

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

29

WASHER (853)

90201-08326-00

$6.17

30

NUT, SELF-LOCKING

90185-08169-00

$7.09

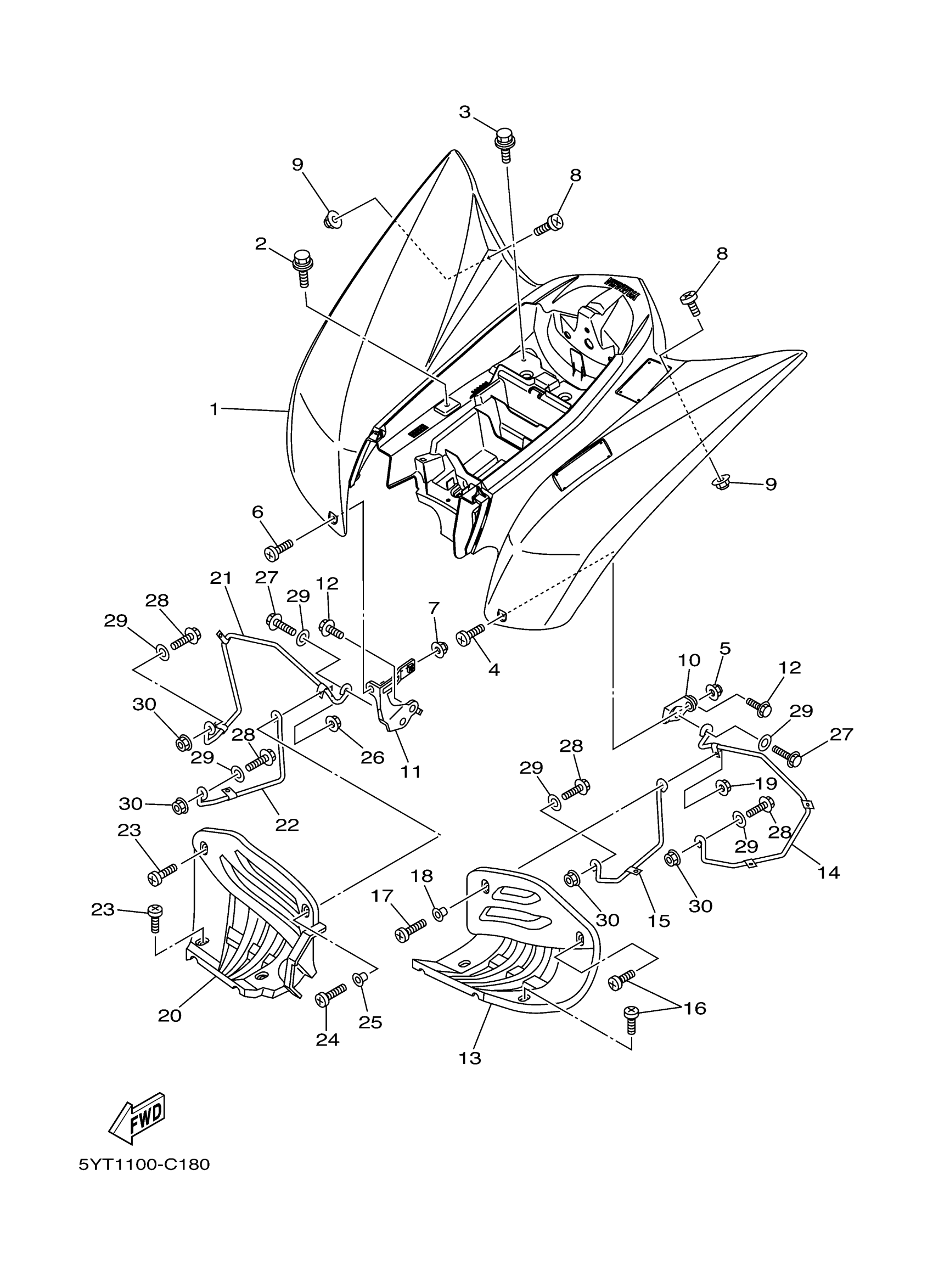

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 REAR FENDER Diagram

REAR FENDER COMP.

STAY, FENDER 1

STAY 1

STAY 3
