Description

Price

1

LEVER HOLDER ASSY

5YT-82910-12-00

$73.76

2

HOLDER, LEVER 1

5YT-82911-10-00

$34.10

3

LEVER 1

2HT-83912-01-00

$33.97

4

BOLT(1FG)

90109-06798-00

$6.26

5

NUT, SELF-LOCKING

95617-06100-00

$2.32

6

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$8.32

7

BOLT(6A1)

97095-05016-00

$1.46

8

SWITCH

5KM-82917-00-00

$50.68

9

BOLT

90123-08002-00

$8.93

10

NUT

90179-08030-00

$3.78

11

BRACKET, LEVER

5TG-25727-01-00

$43.29

12

PLATE, GUIDE

5D3-25689-00-00

$6.71

13

LEVER, BRAKE

5TG-25726-01-00

$26.34

14

COLLAR, LEVER 2

5TG-83923-00-00

$11.66

15

BOLT, BUTTON HEAD

92017-06014-00

$2.78

16

PLUG

90338-07007-00

$2.83

17

BOLT, BUTTON

92014-06016-00

$6.17

18

SWITCH, HANDLE 3

5LP-83973-02-00

Unavailable

19

LEVER, CHOKE

5GH-83941-00-00

$12.80

20

WASHER, SPECIAL

1UY-83909-00-00

$6.46

21

WASHER, STARTER

3L4-83943-00-00

$6.46

22

SCREW, PAN

98517-05012-00

$3.91

23

WASHER(3SX)

92907-05100-00

$6.18

24

SCREW, PAN HEAD

98517-05030-00

$7.92

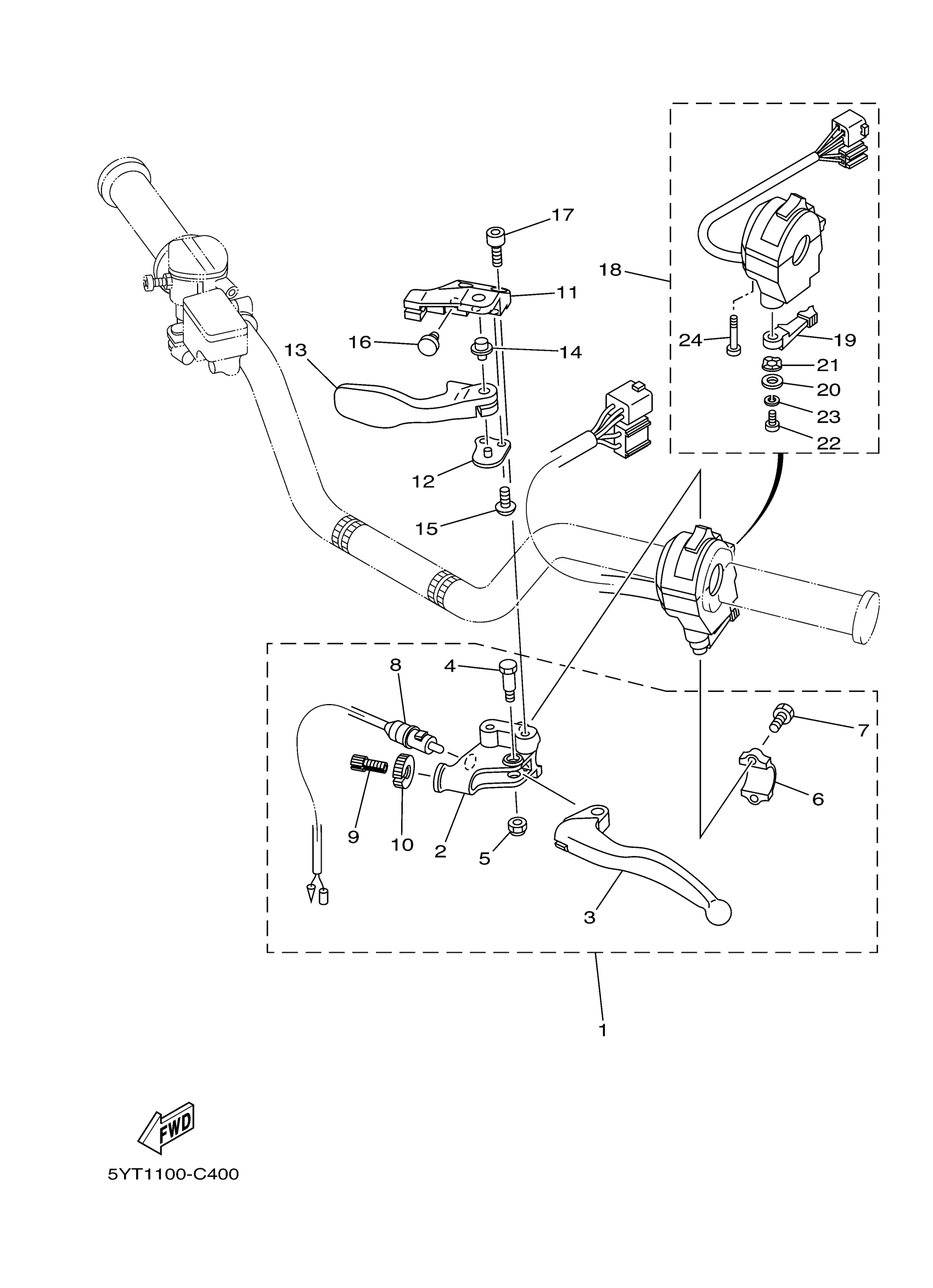

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 HANDLE SWITCH LEVER Diagram

SWITCH, HANDLE 3
