Description

Price

1

GASKET, CRANKCASE COVER 1

3GD-15451-00-00

$19.00

2

PIN, DOWEL

99530-12016-00

$4.12

3

ADAPTOR

3GD-15787-03-00

$222.74

4

BEARING(55X)

93306-07801-00

$51.93

5

OIL SEAL

93102-28476-00

$20.15

6

WASHER, THRUST

21V-15719-00-00

$8.18

7

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.55

8

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$11.62

9

O-RING (2H9)

93210-14369-00

$5.80

10

BOLT, SMALL FLANGE

95027-06025-00

$3.18

11

BOLT, SMALL FLANGE

95027-06045-00

$2.48

12

GASKET 256113960000

90430-06014-00

$7.23

13

COVER, CRANKCASE 2

1UY-15421-00-00

$36.57

14

. BOLT, FLANGE

95027-06020-00

$1.00

15

WASHER, PLATE

90201-06380-00

$0.57

16

BOLT, WASHER BASED(JA9)

90105-06696-00

$6.29

17

GASKET, CRANKCASE COVER 2

3GD-15461-00-00

$24.25

18

PIN, DOWEL

99530-12016-00

$4.12

19

COVER, CRANKCASE 3

3GD-15431-10-00

$212.09

20

PLUG, OIL LEVEL

1UY-15362-01-00

$15.45

21

O-RING (5Y1)

93210-19522-00

$5.86

22

BOLT, SMALL FLANGE

95027-06030-00

$3.65

23

BOLT, SMALL FLANGE

95027-06040-00

$2.48

24

GASKET 256113960000

90430-06014-00

$7.23

25

CLAMP

90465-08045-00

$11.26

26

COVER, CRANKCASE 1

3GD-15411-00-00

Unavailable

27

BOLT, BUTTON HEAD

92017-06025-00

$6.68

28

STOPPER 1

1UY-81175-01-00

$22.55

29

SCREW, PAN

98517-06012-00

$3.14

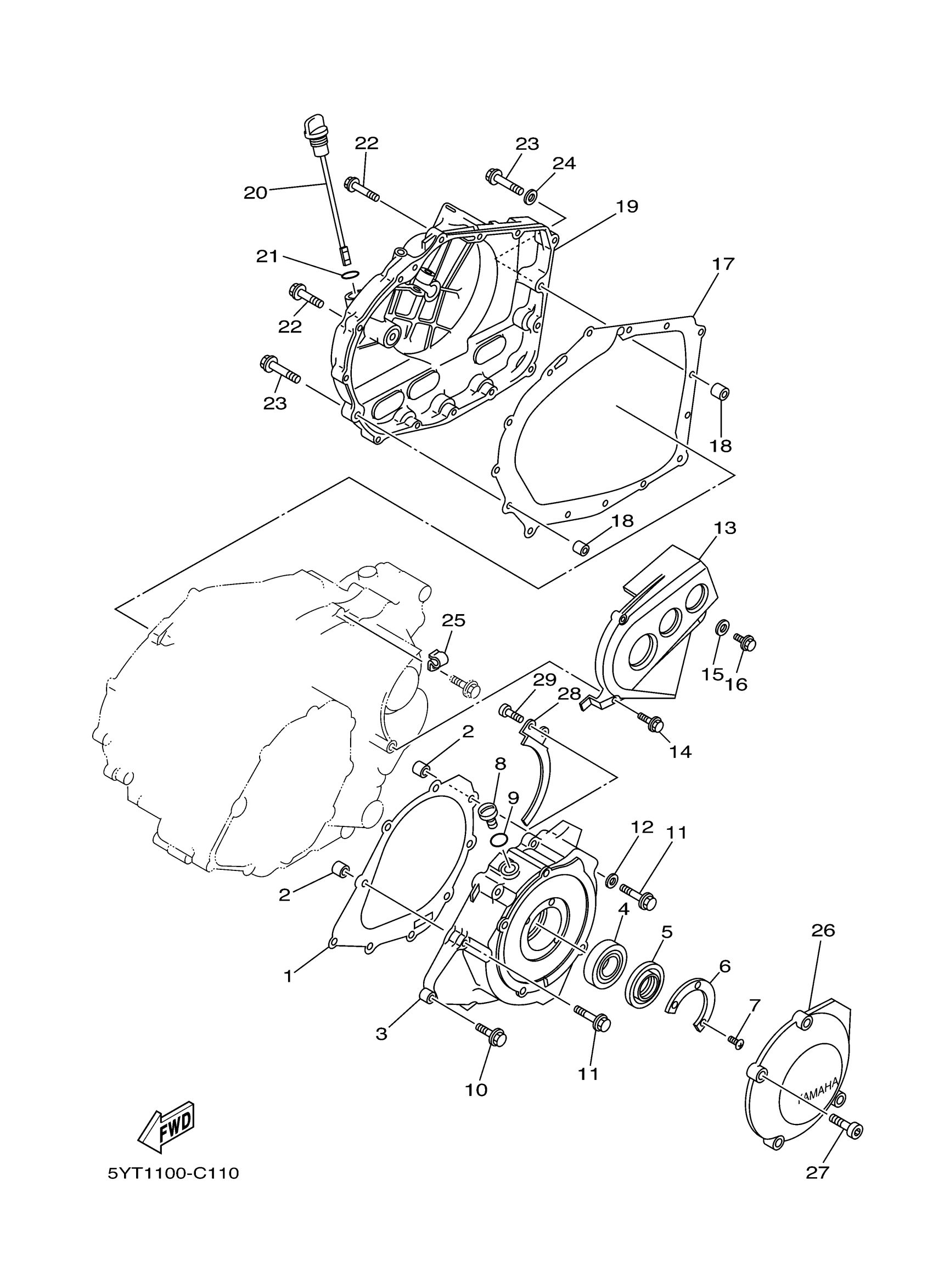

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1
