Description

Price

1

RR. MASTER CYLINDER ASSY.

5YT-2583V-00-00

$128.29

2

CYLINDER KIT, MASTER

5FK-W0042-50-00

$92.92

3

JOINT

47X-2582A-50-00

$12.86

4

O-RING (22U)

93210-15566-00

$5.78

5

SCREW, PAN HEAD

98517-04012-00

$3.28

6

WASHER(6TA)

92907-04100-00

$5.98

7

WASHER(JF2)

92907-04600-00

$1.23

8

NUT, HEXAGON SMALL

95317-08700-00

$7.05

9

JOINT

2YK-27222-00-00

$19.20

10

HOSE, RESERVOIR

5YT-25895-00-00

$15.69

11

CLIP (7K7)

90467-11044-00

$5.10

12

CLIP (5K4)

90467-14057-00

$7.51

13

TANK, RESERVOIR

4EW-25894-00-00

$20.85

14

CAP, RESERVOIR

3XP-25852-50-00

$18.37

15

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$19.62

16

BUSH,DIAPHRAGM

2VN-25855-00-00

$9.49

17

PIN, CLEVIS

90240-08005-00

$6.17

18

WASHER, PLATE

90201-08066-00

$6.35

19

PIN, COTTER

91490-16020-00

$6.23

20

BOLT, UNION(3GM)

90401-10159-00

$8.85

21

WASHER, PLATE(481)

90201-10118-00

$2.91

22

HOSE, BRAKE

5YT-25874-10-00

$52.52

23

BOLT, BUTTON

92017-08030-00

$6.88

24

COVER, RESERVOIR TANK

5YT-25888-00-00

$5.40

25

BOLT

90109-06060-00

$6.62

26

BOLT, UNION(3GM)

90401-10159-00

$8.85

27

WASHER, PLATE(481)

90201-10118-00

$2.91

28

HOLDER, BRAKE HOSE 2

5YT-25876-00-00

Unavailable

29

BOLT, FLANGE

95817-06020-00

$2.69

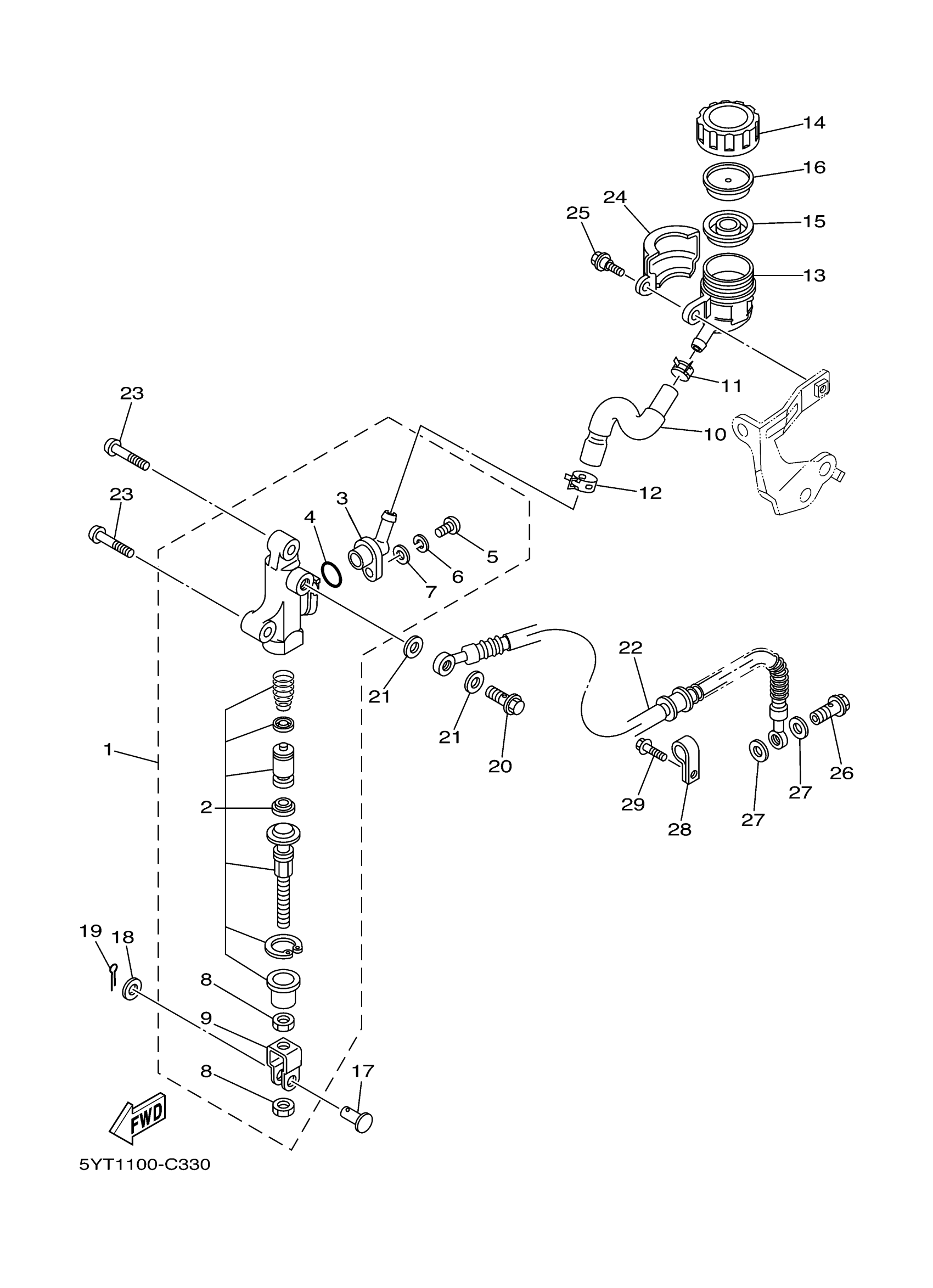

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 REAR MASTER CYLINDER Diagram

HOLDER, BRAKE HOSE 2
