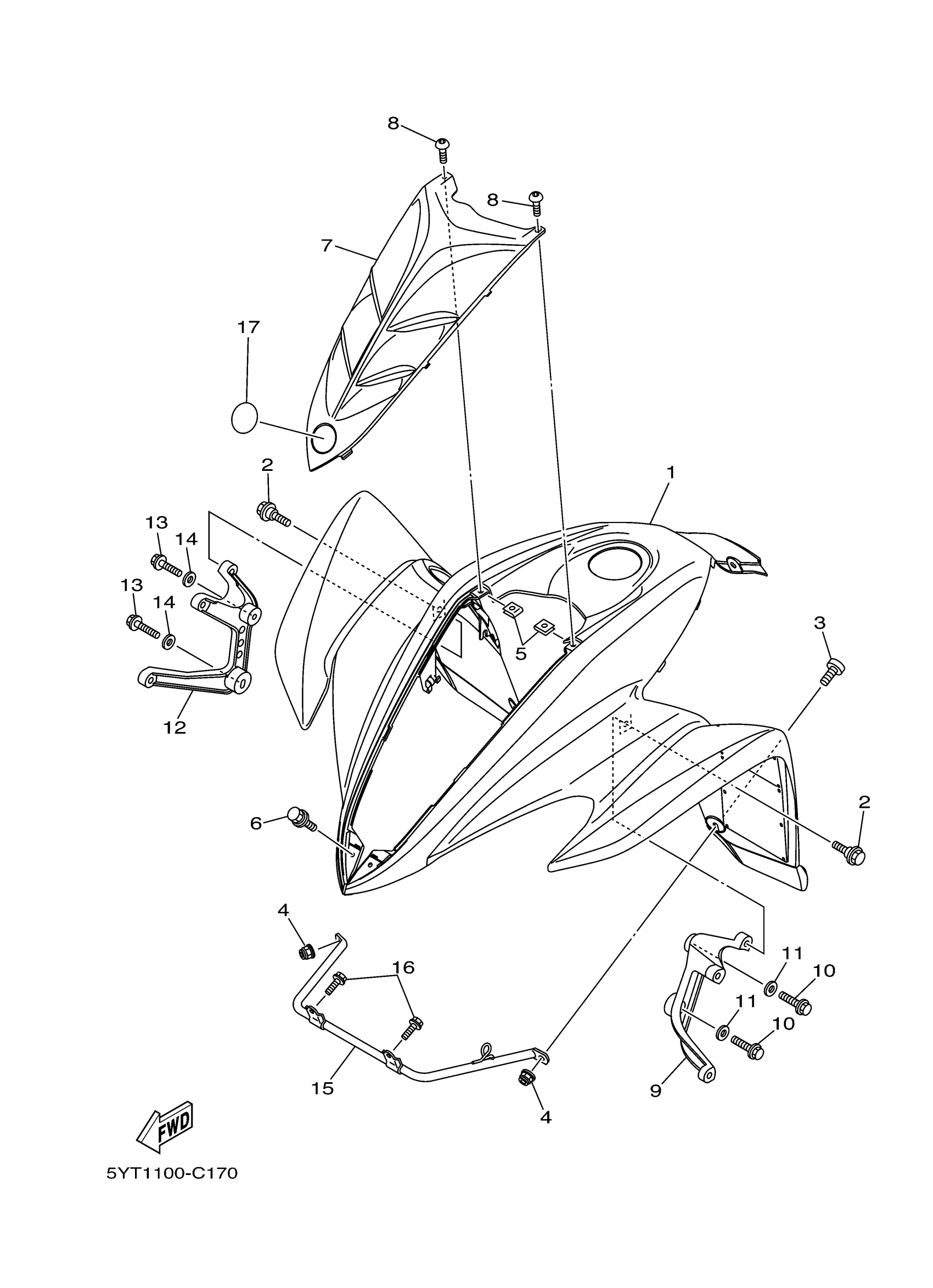

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5YT-W2151-11-00

Unavailable

2

BOLT

90109-06172-00

$2.71

3

SCREW(3JM)

90149-06306-00

$2.80

4

NUT, U FLANGE

95604-06200-00

$2.35

5

NUT, SPRING

90183-05008-00

$6.68

6

BOLT, WITH WASHER

90119-06152-00

$2.74

7

PANEL, FRONT

5YT-23391-D0-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.15

9

STAY, FENDER 1

5YT-21513-00-00

$63.35

10

BOLT, FLANGE

95812-06014-00

$5.45

11

WASHER, PLATE

90201-06089-00

$2.69

12

STAY, FENDER 2

5YT-21514-00-00

$63.35

13

BOLT, FLANGE

95812-06014-00

$5.45

14

WASHER, PLATE

90201-06089-00

$2.69

15

STAY, FENDER 3

5YT-21562-00-00

$70.29

16

BOLT, FLANGE

95812-06010-00

$2.75

17

EMBLEM

8AC-2414B-01-00

$33.63
