Description

Price

1

FRAME COMP.

5YT-21110-30-00

$1,519.99

2

STAY, ENGINE 2

1UY-21315-20-00

$11.06

3

STAY, ENGINE 3

1UY-21316-20-00

$11.06

4

BOLT, FLANGE

95817-08012-00

$3.98

5

NUT, SELF-LOCKING

90185-08169-00

$7.09

6

BOLT, FLANGE

95817-08055-00

$2.82

7

B0LT,FLANGE (1KT)

90105-10323-00

$4.15

8

BOLT, WASHER BASED(1KT)

90105-10409-00

$7.06

9

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

10

NUT, SELF-LOCKING

90185-10002-00

$6.11

11

TENSIONER

3TB-22178-00-00

$22.17

12

BUSH

4V4-22184-00-00

$3.57

13

WASHER, PLATE

90201-08054-00

$6.29

14

BOLT, FLANGE

95817-08012-00

$3.98

15

PROTECTOR, ENGINE

5YT-21471-00-00

$40.42

16

BOLT

90109-08100-00

$5.77

17

BEARING

93306-20348-00

$33.70

18

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

19

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

20

HOLDER, BEARING

2GU-23872-00-00

$22.43

21

PLUG (5R2)

90338-18122-00

$6.71

22

PLUG(1FN)

90338-23172-00

$9.55

23

PAD, SEAT

22W-24741-00-00

$7.72

24

PROTECTOR

5YT-2117G-00-00

$26.80

25

BOLT

90109-08052-00

$6.43

26

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

27

BAND, BATTERY

3TJ-82131-00-00

$19.40

28

GAUGE, AIR

1NV-2811A-01-00

$49.11

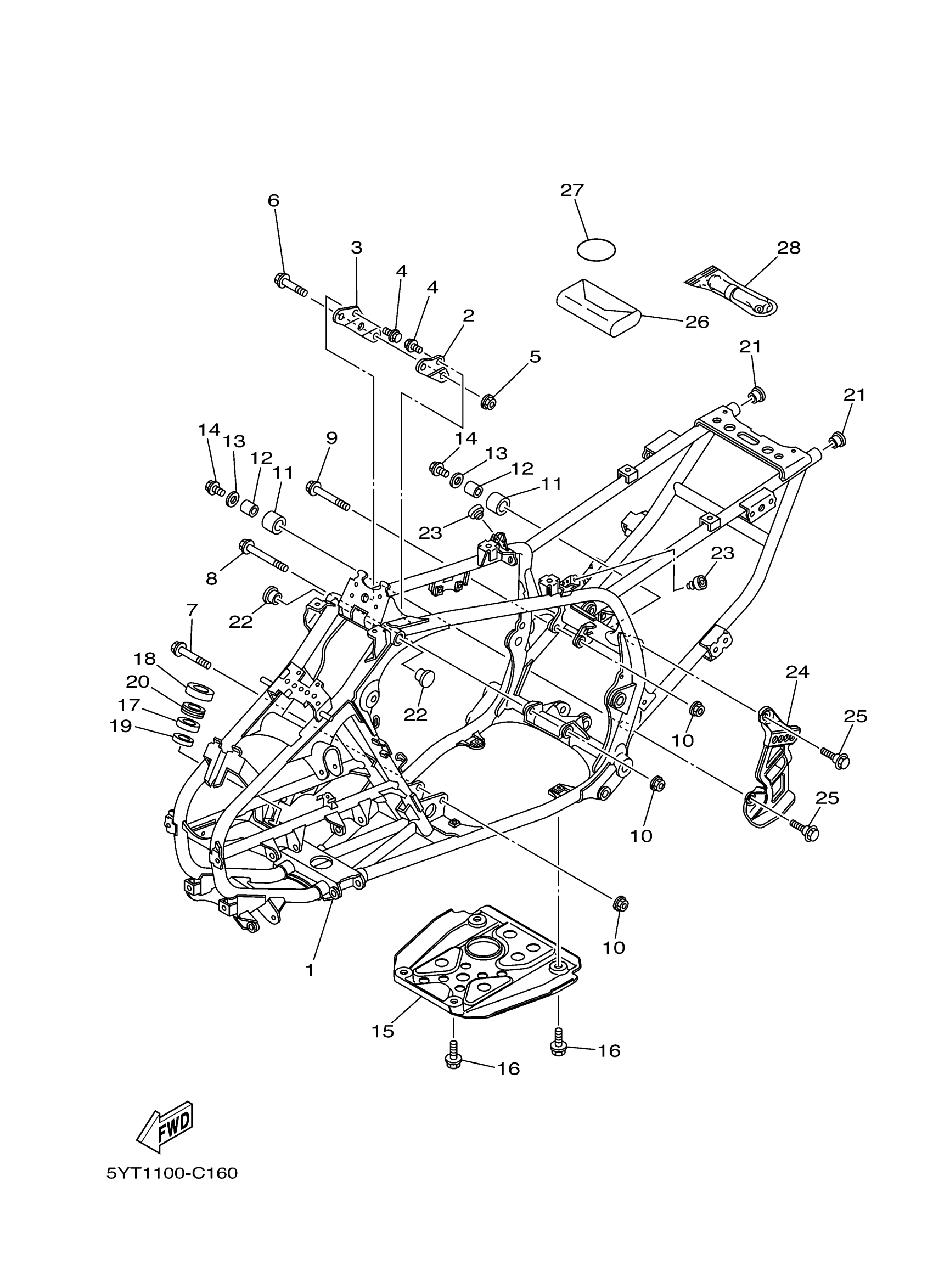

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 FRAME Diagram

TOOL KIT (24W-28100-00)
