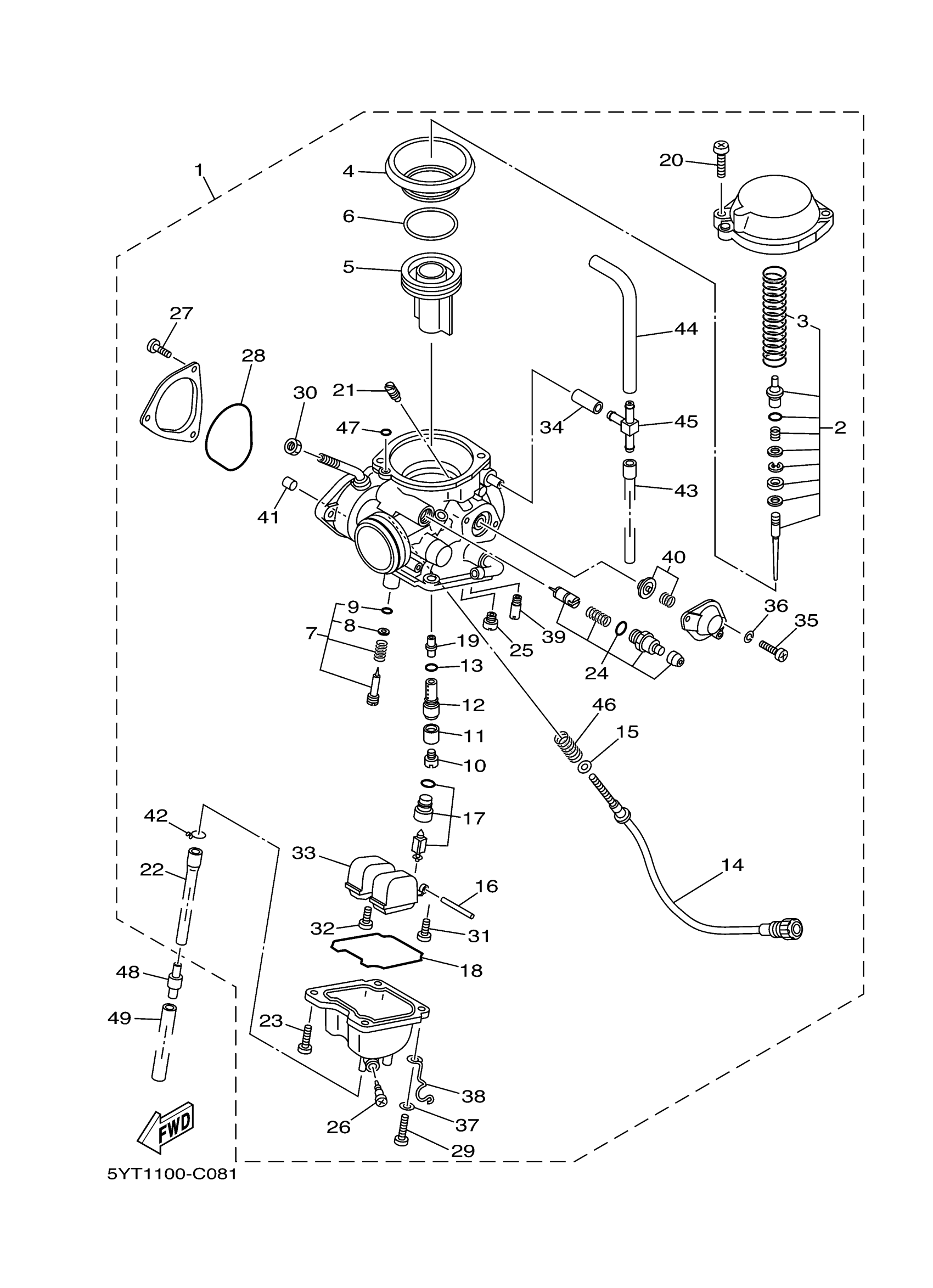

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5YT-14901-10-00

$570.14

2

NEEDLE SET

5YT-1490J-10-00

$29.47

3

SPRING, DIAPHRAGM

5YT-24423-00-00

$11.48

4

DIAPHRAGM ASSY

8FA-14940-00-00

$41.29

5

VALVE, THROTTLE 1

5YT-14112-00-00

$95.40

6

RING

5YT-14194-00-00

$10.37

7

PILOT SCREW SET

5MP-14105-00-00

$17.41

8

WASHER, PILOT SCREW

3H1-14962-00-00

$6.43

9

O-RING, PILOT SCREW

3H1-14147-00-00

$7.51

10

JET,MAIN #142.5

3G2-1423A-79-00

$8.02

11

RING

5GH-14918-00-00

$16.58

12

HOLDER

5YT-14261-00-00

$22.80

13

O-RING

583-14561-00-00

$4.74

14

SCREW, AIR ADJUSTING

5YT-14123-00-00

$75.06

15

WASHER

5FU-14962-00-00

$6.46

16

PIN, FLOAT

127-14186-00-00

$6.23

17

NEEDLE VALVE SET

5YT-14107-25-00

$46.72

18

O-RING

5DM-14561-00-00

$14.82

19

NOZZLE, MAIN

5YT-14141-40-00

$33.00

20

SCREW

4KM-14216-00-00

$6.43

21

. JET, MAIN (#165)

1HX-14231-33-00

Unavailable

22

PIPE

5YT-14193-00-00

$15.75

23

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.26

24

STARTER SET

5YT-1410A-00-00

$65.98

25

JET, MAIN (# 70)

3G2-14231-14-00

$10.75

26

PLUG, DRAIN

5LW-14191-00-00

$9.51

27

SCREW, PAN HEAD(3XP)

98517-04006-00

$4.10

28

O-RING

5LP-14147-00-00

$10.17

29

SCREW, PAN HEAD

98517-04012-00

$3.28

30

NUT, CABLE ADJUSTING

522-14161-00-00

$8.49

31

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.45

32

SCREW

1FN-14565-00-00

$6.43

33

FLOAT

5DM-14985-00-00

$64.14

34

. PIPE

5YT-14197-00-00

Unavailable

35

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

36

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

37

WASHER(JF2)

92907-04600-00

$1.23

38

CLIP

5KM-14937-00-00

$25.75

39

JET, PILOT (# 22.5)

4KM-14142-22-00

$8.14

40

DIAPHRAGM SET 5

5YT-1490H-00-00

$66.00

41

GUIDE, CABLE

3GD-14155-00-00

$22.96

42

CLIP, PIPE

80N-14139-00-00

$2.57

43

PIPE

5YT-14197-20-00

$21.66

44

. PIPE

5YT-14197-10-00

Unavailable

45

PIPE

28V-14988-00-00

$51.55

46

SPRING, THROTTLE STOP

137-14133-00-00

$6.15

47

O-RING (493-CARB.)

354-14147-00-00

$13.06

48

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

49

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95
