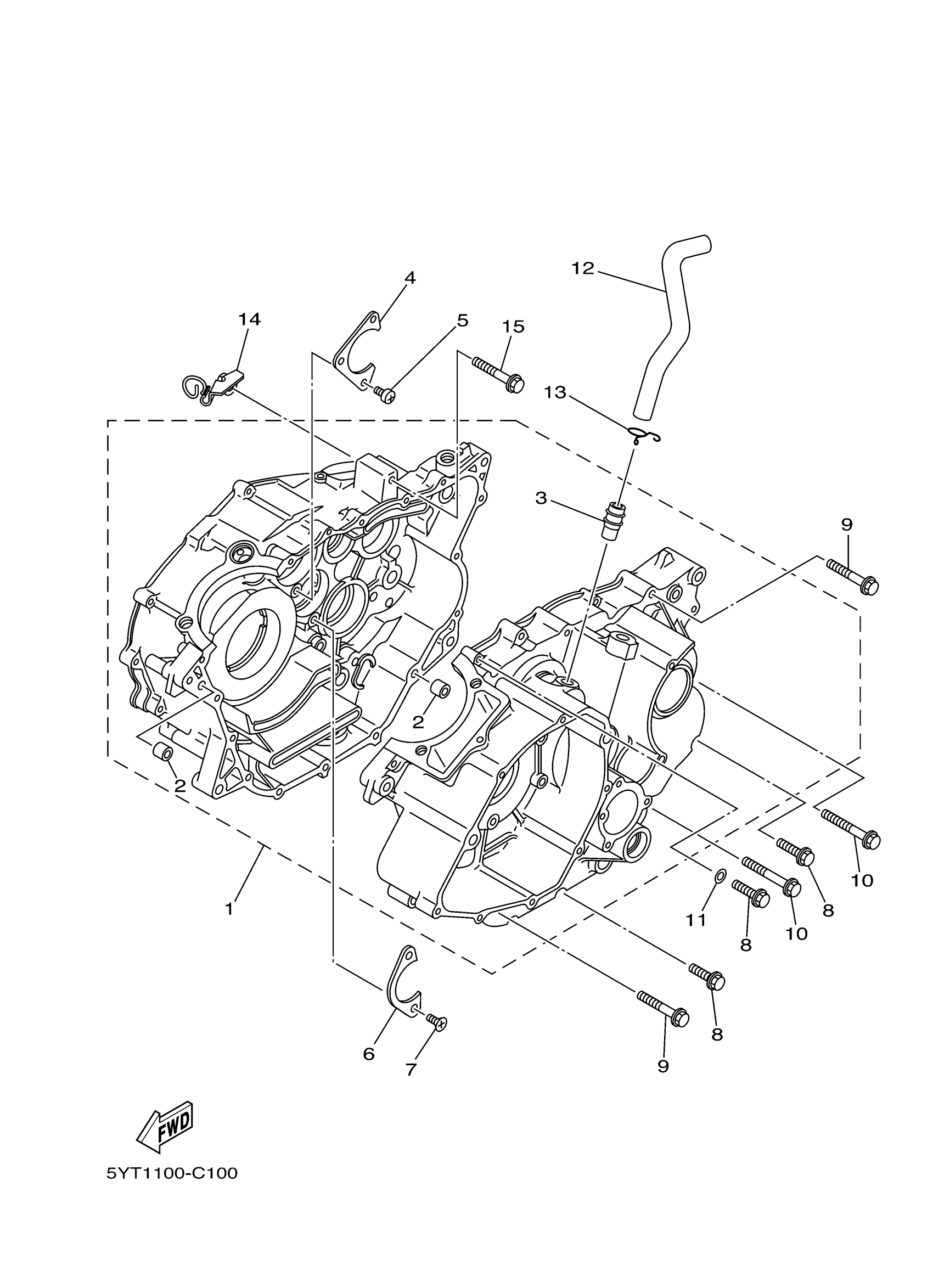

Yamaha YFM35RAL (RAPTOR 350) 1BS4 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3GD-15100-03-00

$1,258.18

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIPE, BREATHER 2

371-11167-01-00

$9.67

4

PLATE, BEARING COVER

3R4-15381-00-00

$4.21

5

SCREW, PAN

98517-06012-00

$2.93

6

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

7

SCREW, FLAT

98704-06016-00

Unavailable

8

BOLT, FLANGE

95022-06030-00

$1.31

9

BOLT, FLANGE

95022-06050-00

$1.36

10

BOLT, FLANGE

95022-06060-00

$5.84

11

GASKET 256113960000

90430-06014-00

Unavailable

12

PIPE, BREATHER 1

5YT-11166-00-00

Unavailable

13

CLIP

90467-140A4-00

$7.77

14

HOLDER, CLUTCH CABLE

5YT-15441-10-00

$19.06

15

BOLT, FLANGE

95814-08045-00

$3.68
