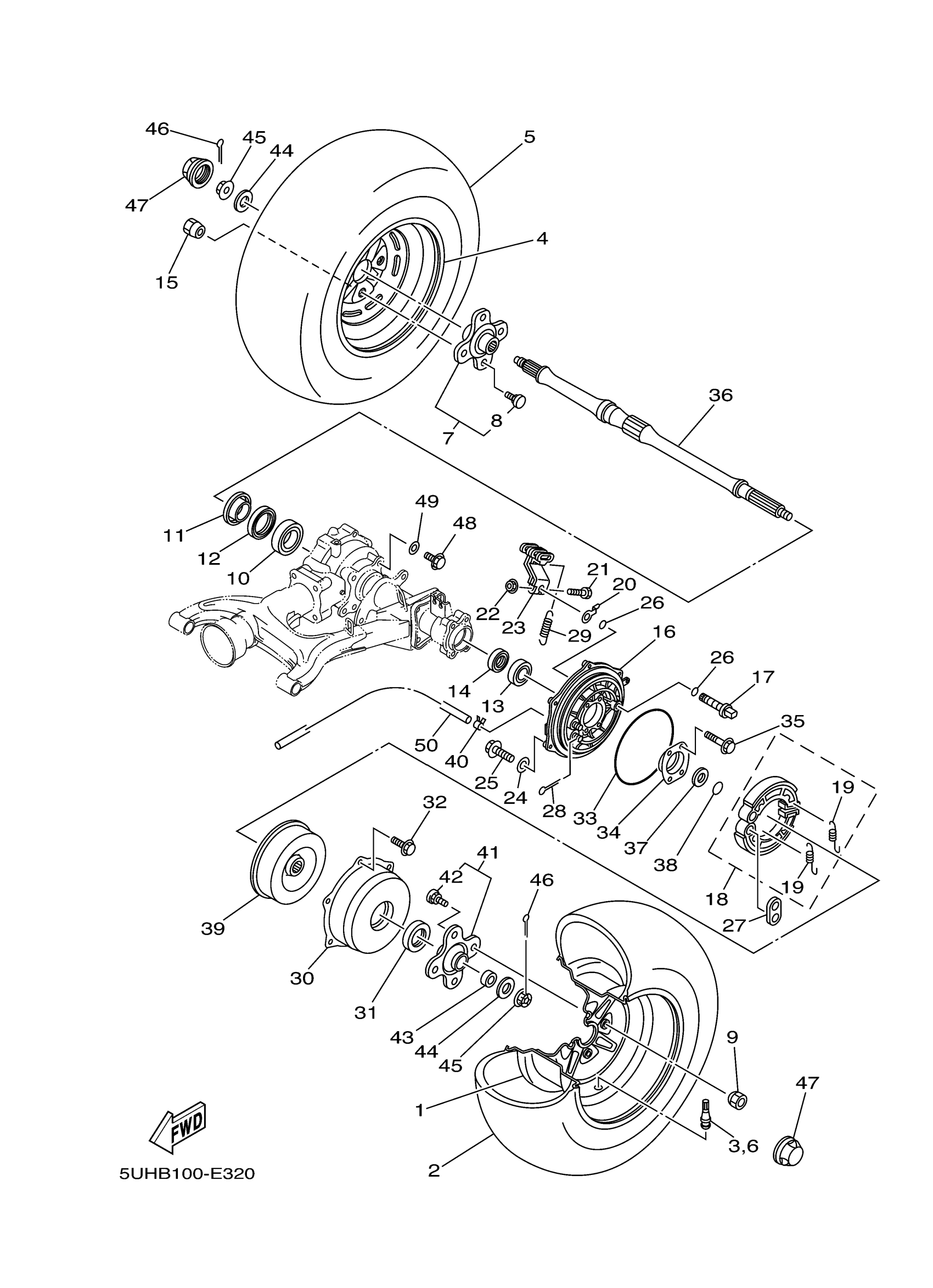

Yamaha YFM35GW (GRIZZLY 350 2WD) 5WHA 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

5ND-F5390-21-00

Unavailable

2

TIRE (AT25X10-12 M980)

94110-12809-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

REAR WHEEL COMP.

5ND-F5390-21-00

Unavailable

5

TIRE (AT25X10-12 M980)

94110-12809-00

Unavailable

6

VALVE, RIM

93900-00812-00

$7.49

7

COLLAR, WHEEL

5ND-F5383-11-00

$57.53

8

BOLT

1P0-F5411-00-00

$1.77

9

NUT(2HR)

90179-10540-00

$3.92

10

BEARING

93306-008Y1-00

$28.08

11

COVER, HUB DUST

4SH-25367-01-00

$40.55

12

OIL SEAL

93106-47040-00

$16.62

13

BEARING

93306-278Y0-00

$42.76

14

OIL SEAL (4H7)

93101-35097-00

$17.78

15

NUT(2HR)

90179-10540-00

$3.92

16

PLATE, BRAKE SHOE

5VH-F5321-01-00

$74.57

17

CAMSHAFT

5VH-F5351-01-00

$11.09

18

BRAKE SHOE SET

5VH-WF536-00-00

$38.80

19

SPRING, RETURN

5VH-F5333-01-00

$1.83

20

PLATE, INDICATOR

5VH-F533A-01-00

$9.45

21

BOLT

90101-06824-00

$1.22

22

NUT, U FLANGE

95604-06200-00

$2.35

23

LEVER, CAMSHAFT

5VH-F5355-01-00

$13.06

24

GASKET

5VH-F5898-00-00

$6.37

25

BOLT, CALIPER

5VH-F5818-00-00

$1.72

26

SEAL, CAMSHAFT

5VH-F5359-00-00

$3.94

27

PLATE 1

5VH-F539F-01-00

$3.28

28

PIN, COTTER

91490-25020-00

$2.94

29

SPRING, TENSION(4GB)

90506-16482-00

$5.94

30

COVER, PLATE

5FU-F5327-01-00

$25.91

31

SEAL, HUB DUST

5FU-F5319-10-00

$11.06

32

BOLT, FLANGE

95817-06012-00

$1.49

33

SEAL, DUST

5FU-F537Y-00-00

$35.73

34

RETAINER

4XE-G6513-00-00

$7.51

35

BOLT, FLANGE

90105-088A4-00

$3.52

36

AXLE, WHEEL RR.

5TE-F5381-20-00

Unavailable

37

COLLAR(2NL)

90387-284T0-00

$14.37

38

O-RING(22F)

93210-26662-00

$5.86

39

DRUM ASSY WITH RING

5FU-F5310-10-00

Unavailable

40

CLIP(42X)

90467-07093-00

$1.72

41

COLLAR, WHEEL

5FU-F5377-11-00

$55.19

42

BOLT

1P0-F5411-00-00

$1.77

43

WASHER, WHEEL

5FU-F5384-00-00

Unavailable

44

WASHER, PLATE

90201-16804-00

$9.78

45

NUT, CASTLE

90171-16001-00

$19.52

46

PIN, COTTER

91490-30030-00

$7.15

47

CAP, WHEEL

5GT-2512A-00-00

$8.70

48

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

49

WASHER, PLATE(47X)

90201-101J1-00

$6.17

50

HOSE

90445-07807-00

$5.28
