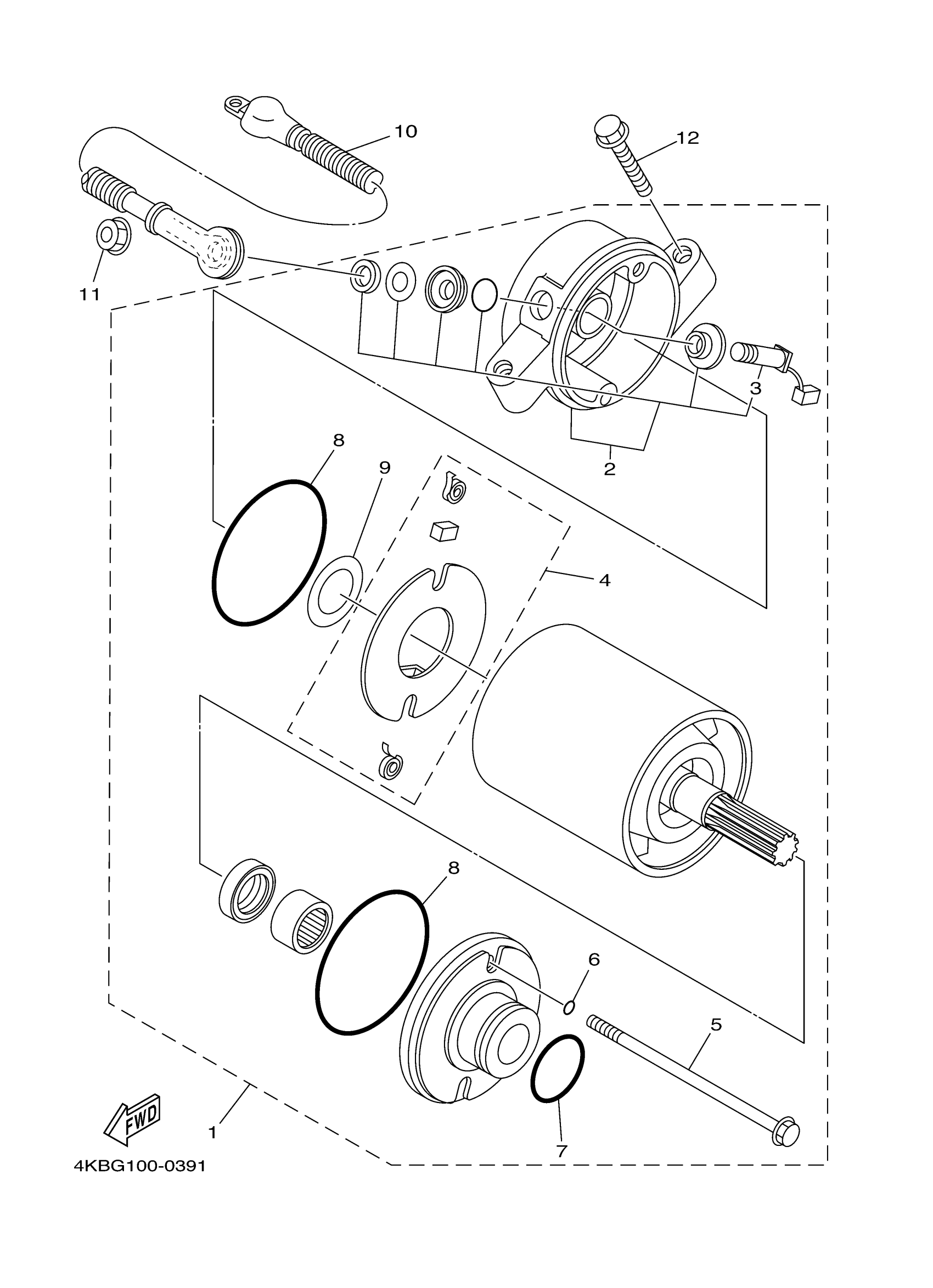

Yamaha YFM35FXT (WOLVERINE) 2D41 2005 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

4KB-81890-00-00

$504.48

2

REAR BRACKET ASSY

4KB-81820-00-00

$99.56

3

BLUSH AND BOLT

4KB-81818-00-00

Unavailable

4

BRUSH HOLDER ASSY

4H7-81840-01-00

$75.44

5

BOLT

3GD-81826-00-00

$14.45

6

O-RING

8L6-81847-50-00

$3.00

7

O-RING (437)

93210-24235-00

$5.34

8

O-RING

4H7-81844-00-00

Unavailable

9

WASHER 1

4H7-81843-50-00

$3.68

10

. CORD, STARTER MOTOR

4KB-81815-00-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

$4.11

12

BOLT, SMALL FLANGE

95027-06030-00

$3.40
