Description

Price

1

SHIFT SHAFT COMP.

5UH-18103-00-00

$32.29

2

OIL SEAL (3X3)

93102-15212-00

$7.34

3

WASHER (566)

90201-15701-00

$6.17

4

CIRCLIP

93440-15012-00

$6.17

5

FORK, SHIFT 1

5UH-18511-00-00

$67.25

6

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

$29.34

7

BALL

93503-08007-00

$2.35

8

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

9

BOLT, FLANGE

90105-14003-00

$6.63

10

GASKET(59V)

90430-14194-00

$6.17

11

LEVER

4SH-18198-00-00

$19.46

12

COLLAR

90387-0613B-00

$7.26

13

WASHER, PLATE

90201-13013-00

$6.29

14

SPRING, TORSION(1YW)

90508-35764-00

$4.20

15

LEVER

5UH-18191-00-00

Unavailable

16

WASHER, PLATE

90201-06M02-00

$2.23

17

BOLT, FLANGE

95817-06035-00

$5.37

18

ROD, SHIFT

5UH-18115-01-00

Unavailable

19

NUT(1KT)

90170-08358-00

$6.68

20

NUT, HEXAGON SMALL

95317-08700-00

$7.05

21

SHIFTER ASSY

5UH-18300-02-00

Unavailable

22

KNOB, SHIFT LEVER

5TE-18174-00-00

$24.86

23

RIVET(81E)

90269-05055-00

$7.02

24

BOOTS, SEALING

5GH-18131-00-00

$77.86

25

STOPPER, RUBBER

5GH-18617-00-00

$12.27

26

HOSE

90446-16001-00

Unavailable

27

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

28

CLIP (806-24358-00)

90467-15012-00

$4.71

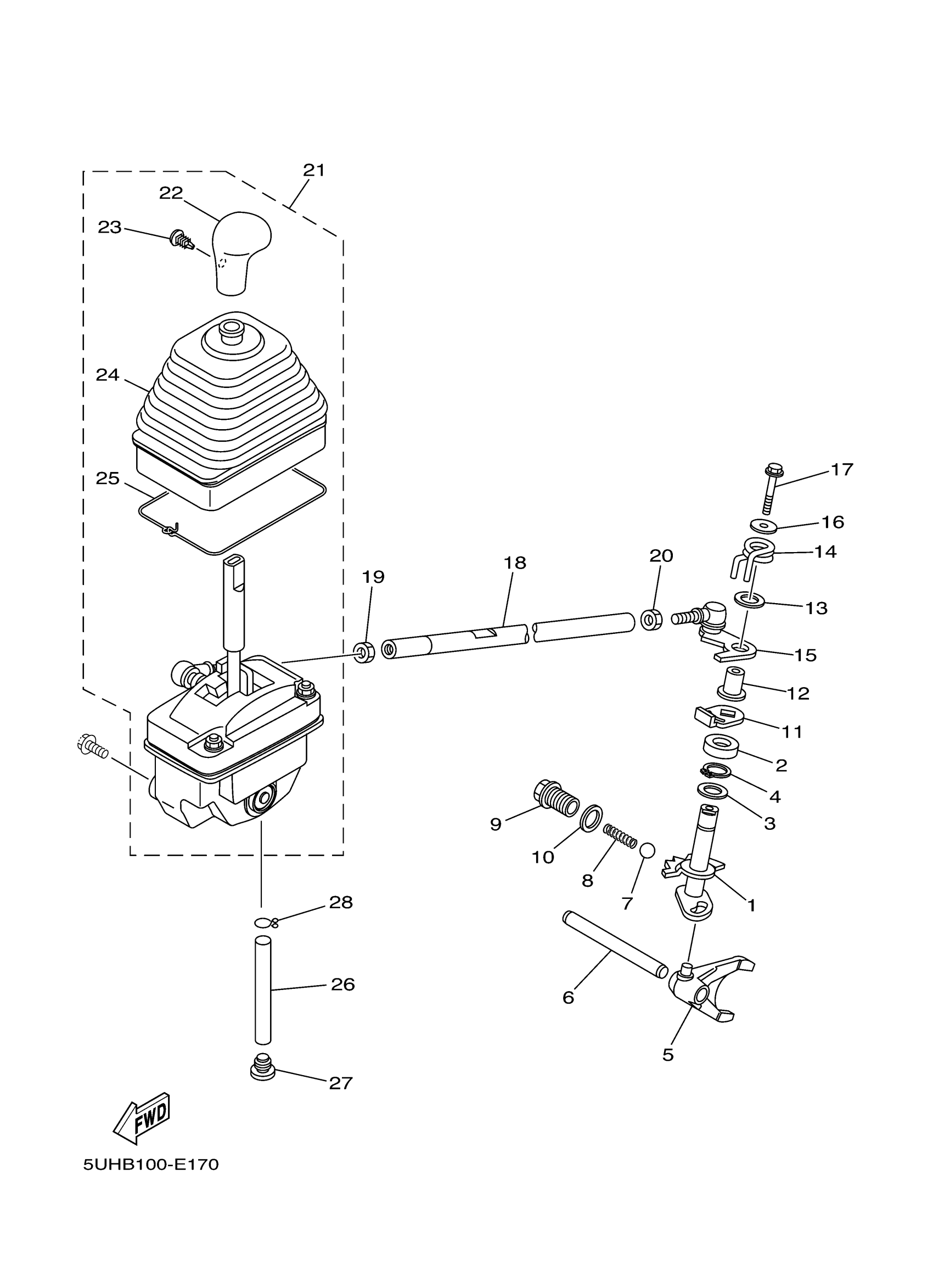

Yamaha YFM35FGW (GRIZZLY 350 4WD) 5UHG 2007 SHIFT SHAFT Diagram

LEVER

ROD, SHIFT

SHIFTER ASSY

HOSE

PLUG, DRAIN
