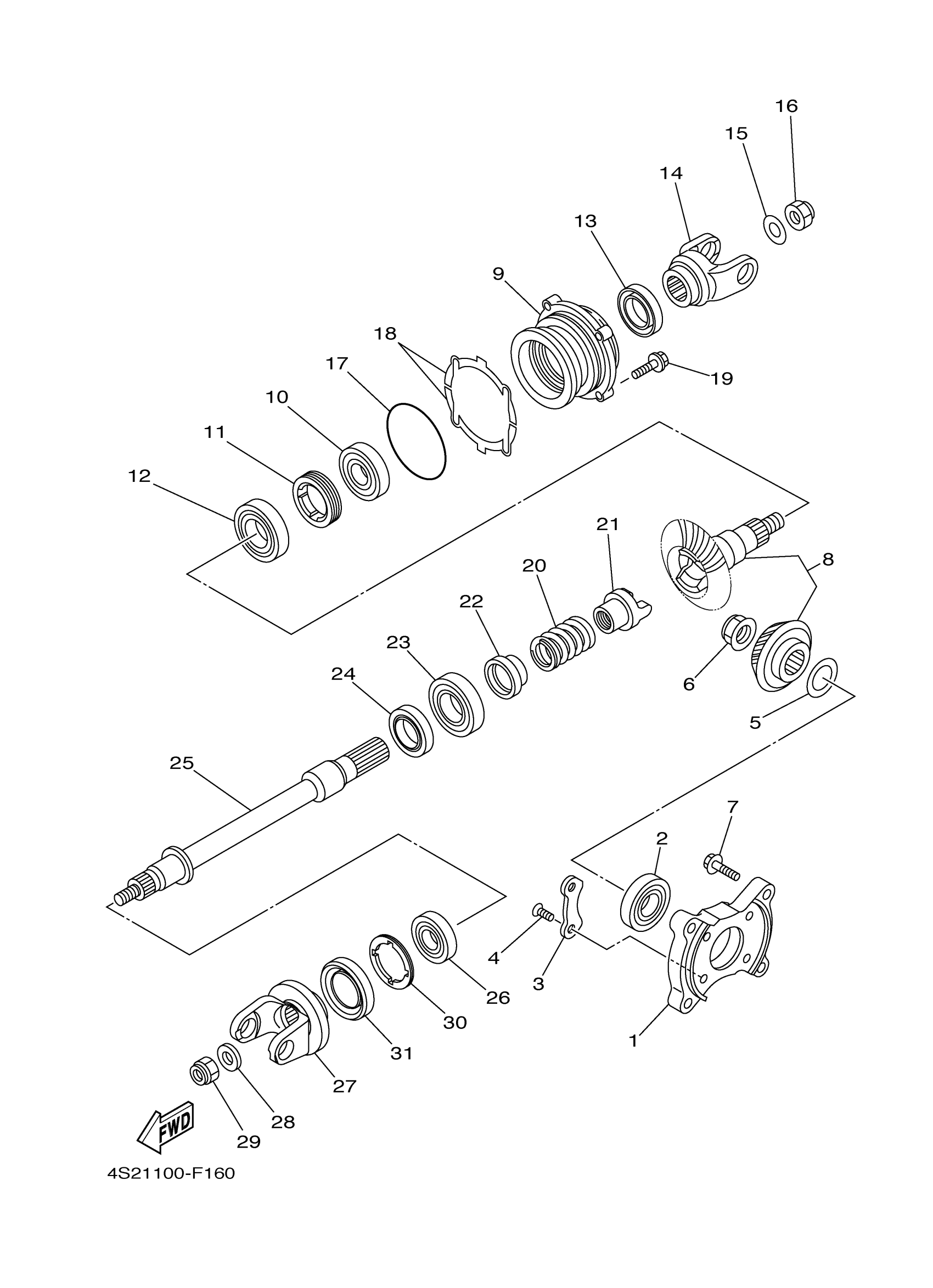

Yamaha YFM35FGIW (GRIZZLY 350 IRS) 4S21 2007 MIDDLE DRIVE GEAR Diagram
#
Description
Price
2
BEARING
93306-20532-00
Unavailable
3
PLATE, BEARING COVER
11H-15383-02-00
Unavailable
4
SCREW
90149-08013-00
Unavailable
5
SHIM, PINION (0.5T)
5KM-17531-50-00
Unavailable
5
SHIM, PINION (0.55T)
5KM-17531-60-00
Unavailable
5
SHIM, PINION (0.6T)
5KM-17531-70-00
Unavailable
6
NUT
90179-22015-00
Unavailable
8
PINION SET
5UH-17530-00-00
Unavailable
11
NUT(59V)
90179-65305-00
Unavailable
13
OIL SEAL
93102-35012-00
Unavailable
14
YOKE, JOINT
1D9-17556-00-00
Unavailable
15
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
18
SHIM, PINION (0.1T)
5GH-17531-00-00
Unavailable
18
SHIM, PINION (0.15T)
5GH-17531-10-00
Unavailable
18
SHIM, PINION (0.2T)
5GH-17531-20-00
Unavailable
18
SHIM, PINION (0.3T)
5GH-17531-30-00
Unavailable
18
SHIM, PINION (0.4T)
5GH-17531-40-00
Unavailable
18
SHIM, PINION (0.5T)
5GH-17531-50-00
Unavailable
18
SHIM, PINION (0.6T)
5GH-17531-60-00
Unavailable
20
SPRING, COMPRESSION
90501-650L5-00
Unavailable
21
CAM, DRIVEN
4VR-17527-00-00
Unavailable
22
COLLAR, GEAR
5UH-17585-00-00
Unavailable
23
BEARING(2HR)
93306-00612-00
Unavailable
25
SHAFT, 1
1D9-1761A-00-00
Unavailable
26
BEARING(83R)
93306-20582-00
Unavailable
28
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
30
NUT(4KB)
90179-55660-00
Unavailable
