Description

Price

1

CYLINDER HEAD ASSY

5YT-11101-20-00

$926.69

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$24.50

3

CIRCLIP (1L9)

93440-12052-00

$1.75

4

BOLT, FLANGE(4DU)

95027-06014-00

$0.74

5

GASKET (4V2)

90430-06166-00

$3.45

6

BOLT, STUD(2NL)

90116-06503-00

$7.51

7

ABSORBER

583-11127-00-00

$6.72

8

PLATE

3Y1-1111F-00-00

$6.72

9

BOLT (661)

97013-06012-00

$4.71

10

WASHER, LOCK (3Y1)

90215-06162-00

$7.43

11

GASKET, CYLINDER HEAD 1

1UY-11181-01-00

$40.97

12

PIN, DOWEL

99530-14016-00

$3.20

13

GASKET

90430-14240-00

$6.91

14

BOLT, FLANGE

90105-10137-00

$10.65

15

BOLT, FLANGE

90105-10136-00

$9.83

16

WASHER PLATE 341839090000

90201-10128-00

$3.42

17

BOLT, SOCKET

91317-08050-00

$6.17

18

BREATHER ASSY

4WU-11160-01-00

$64.60

19

PLATE, BREATHER

4KB-11165-00-00

$23.92

20

BOLT, FLANGE

95022-06012-00

$3.00

21

PIPE, BREATHER 1

3C2-E1166-00-00

$10.23

22

CLIP

90467-140A4-00

$8.31

23

CLAMP

90464-39800-00

$2.09

24

O-RING (15A)

93211-06635-00

$12.42

25

BOLT,SOCKET

91317-06025-00

$2.05

26

COVER, CYLINDER HEAD SIDE 2

2NL-11186-12-00

$10.95

27

COVER, CYLINDER HEAD SIDE 3

2NL-11187-11-00

$11.29

28

O-RING

93210-57634-00

$12.58

29

BOLT,SOCKET

91317-06020-00

$2.11

30

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

$4.06

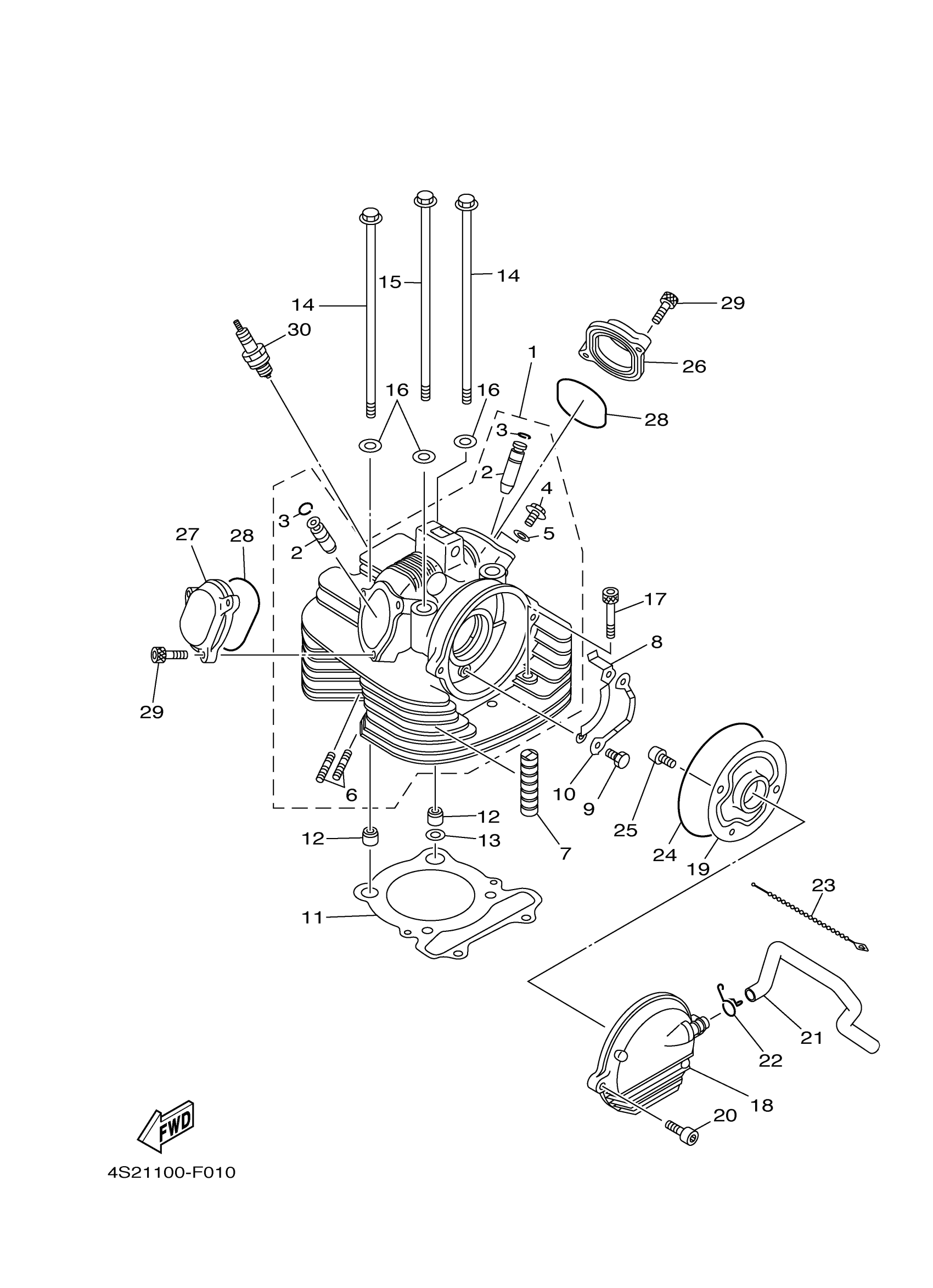

Yamaha YFM35FGIW (GRIZZLY 350 IRS) 4S21 2007 CYLINDER HEAD Diagram
