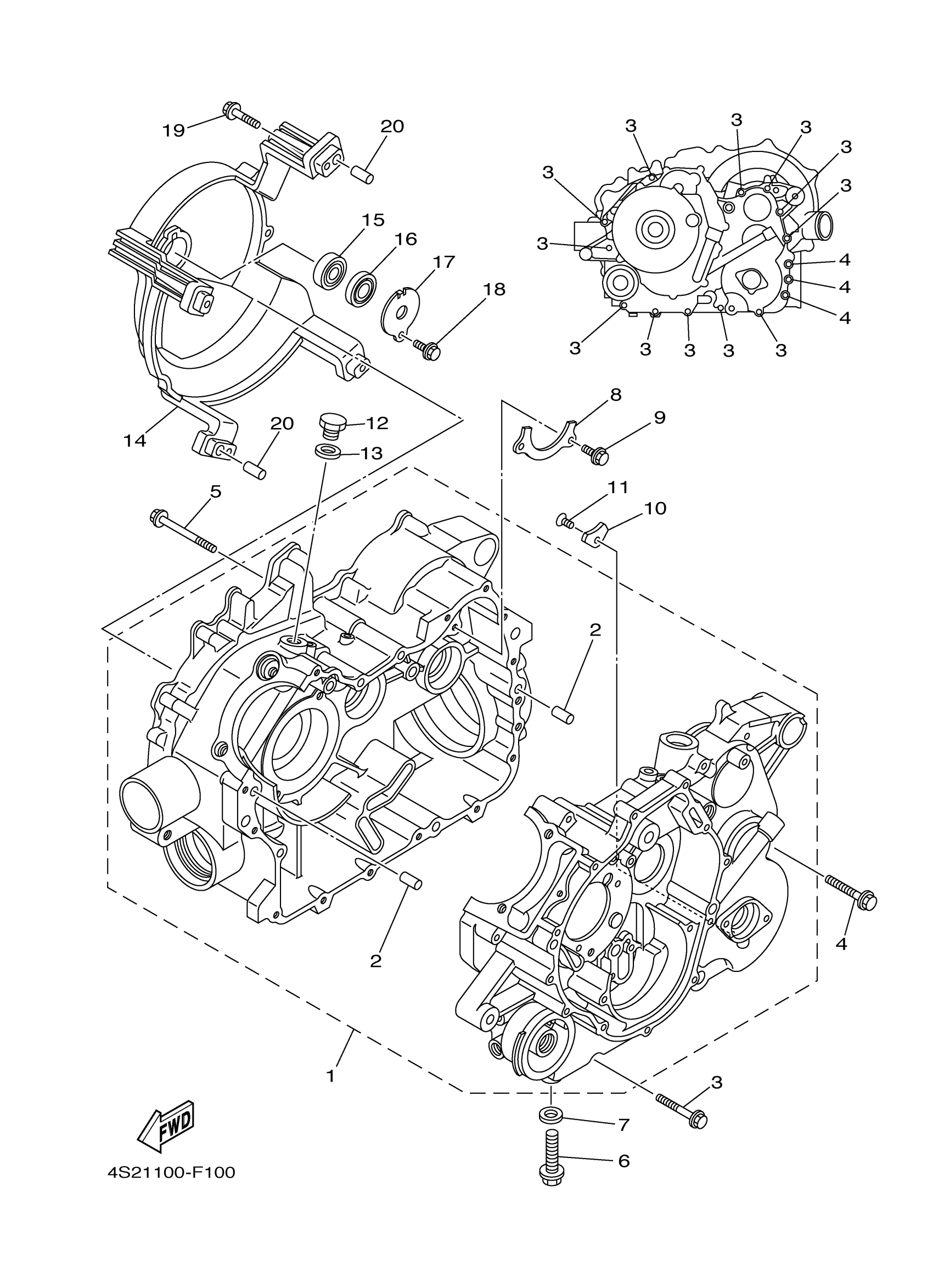

Yamaha YFM35FGIW (GRIZZLY 350 IRS) 4S21 2007 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5UH-15100-09-00

Unavailable

2

PIN, DOWEL(2VG)

99530-10116-00

$3.37

3

BOLT, SMALL FLANGE

95027-06050-00

$1.82

4

BOLT, SMALL FLANGE

95027-08045-00

$6.28

5

BOLT, SMALL FLANGE

95027-06070-00

$1.88

6

BOLT, FLANGE

95027-12040-00

Unavailable

7

WASHER, PLATE 3412175700

90201-12172-00

$2.91

8

PLATE, BEARING COVER

5GH-15388-00-00

$4.48

9

BOLT, FLANGE

95817-06012-00

$1.49

10

PLATE, BEARING COVER

4XM-15383-00-00

$11.03

11

SCREW, COUNTERSUNK (4H7)

90151-06014-00

$6.88

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

13

GASKET

214-11198-01-00

$2.66

14

HOUSING, BEARING

5UH-15442-00-00

$145.00

15

BEARING(82M)

93306-20117-00

$29.07

16

OIL SEAL

93101-12168-00

$4.34

17

PLATE, BEARING COVER

4WV-15381-00-00

$7.32

18

BOLT, FLANGE

95022-06012-00

$3.00

19

BOLT, FLANGE

95817-06030-00

$3.91

20

PIN, DOWEL(2VG)

99530-10116-00

$3.37
