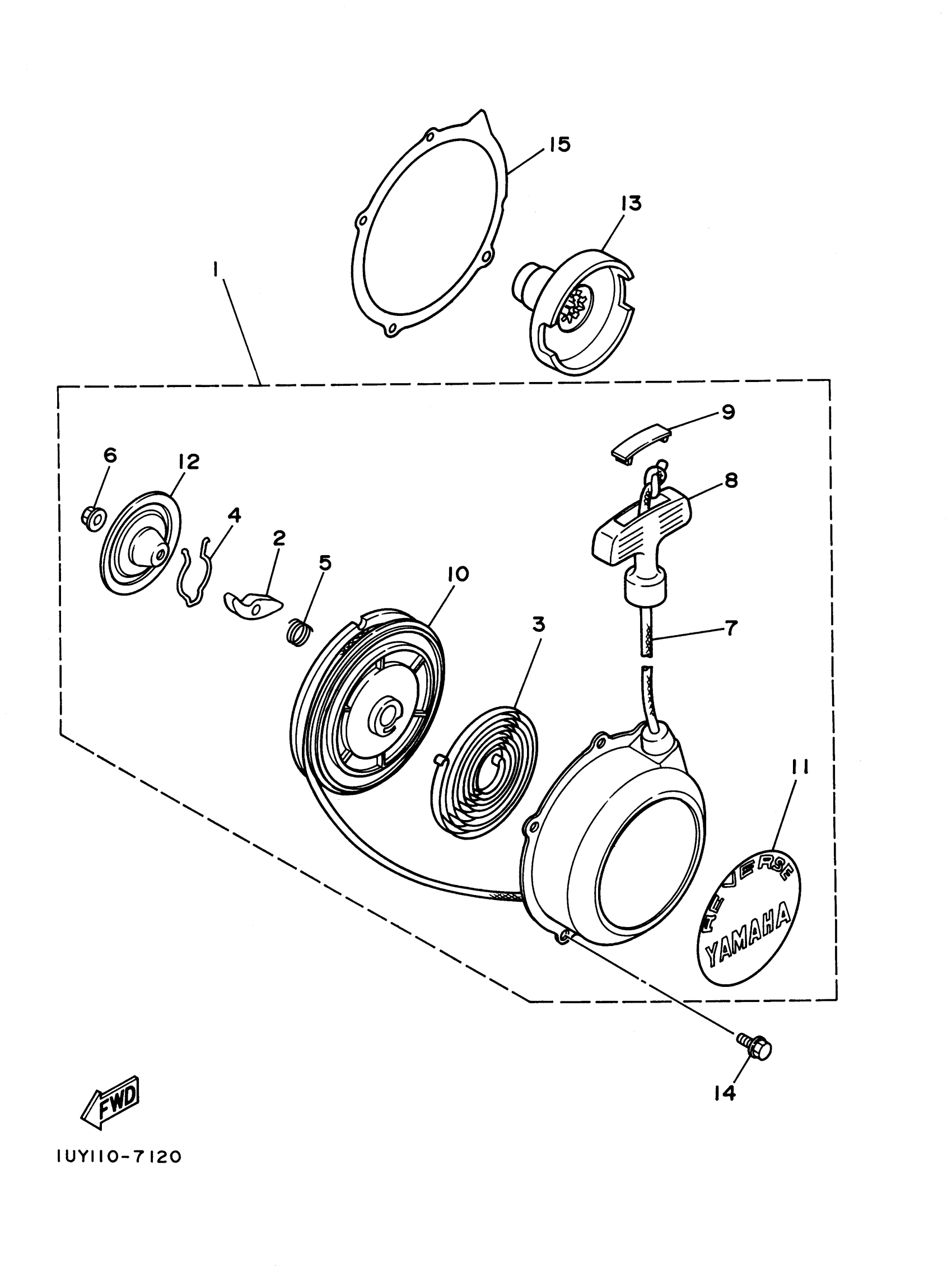

Yamaha YFM350XPC (WARRIOR) 5NF5 2002 ALTERNATE ENGINE Diagram

#

Description
Price

1

STARTER ASSY

1UY-15710-20-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$17.98

3

SPRING, STARTER

21V-15713-00-00

$18.80

4

SPRING, DRIVE PLATE

21V-15715-00-00

$24.01

5

SPRING

21V-15767-00-00

$5.90

6

NUT, FLANGE

95702-06500-00

$1.95

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

8

HANDLE, STARTER

3X3-15755-00-00

$23.09

9

CAP, KNOB

21V-15779-00-00

$6.03

10

DRUM, SHEAVE

24W-15714-00-00

$46.67

11

EMBLEM

5GH-15443-01-00

Unavailable

12

PLATE, DRIVE

21V-15716-00-00

$23.14

13

PULLEY, STARTER

1UY-15723-00-00

Unavailable

14

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

15

GASKET

3GD-15699-00-00

$20.99
