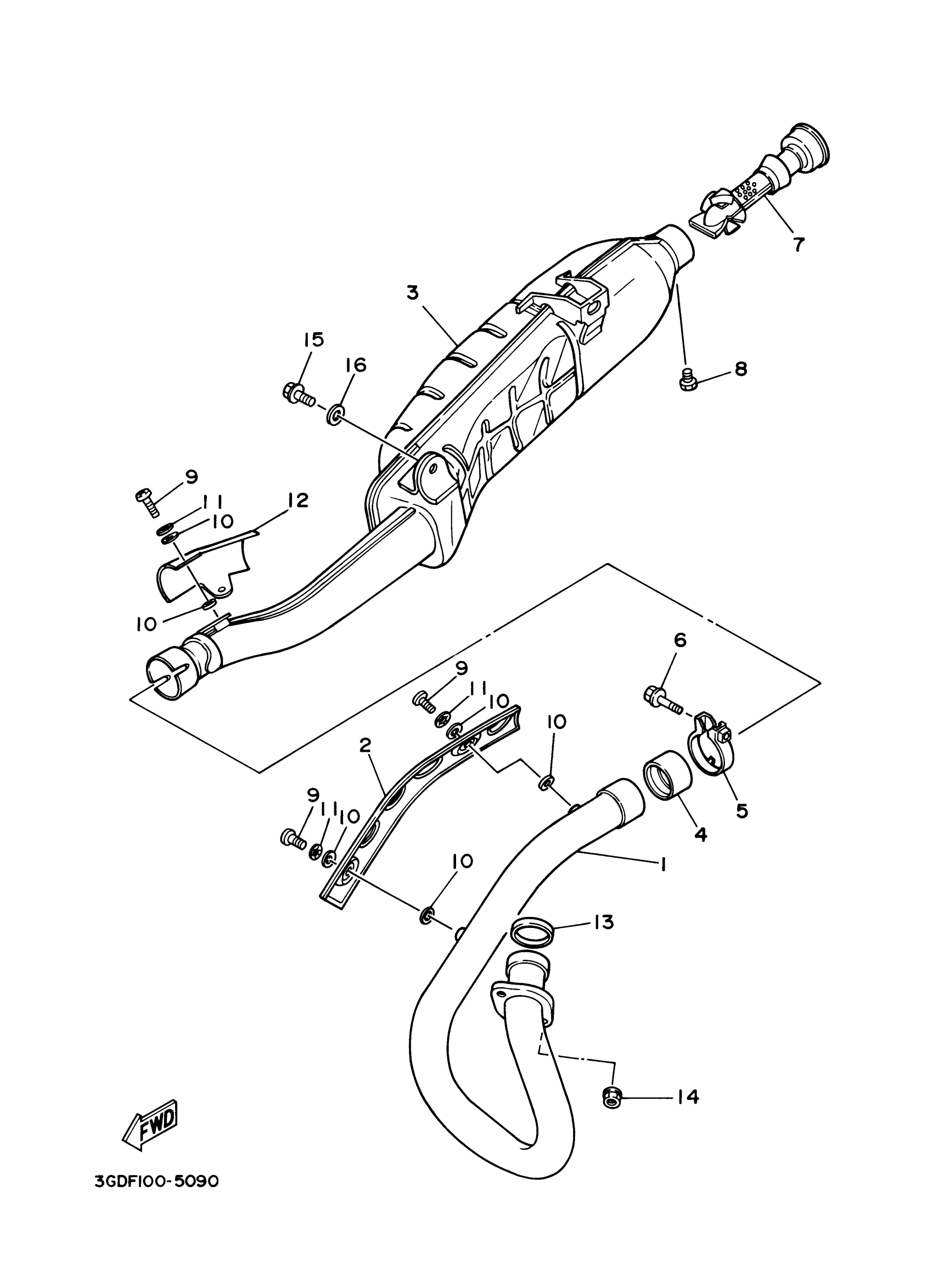

Yamaha YFM350XMC (WARRIOR) 3GDU2 2000 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1UY-14611-03-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

3

MUFFLER 1

1UY-14711-05-00

Unavailable

4

GASKET, SILENCER

3YF-14755-00-00

$27.92

5

BAND, MUFFLER

1UY-14715-00-00

Unavailable

6

BOLT, FLANGE(JN5)

95817-08045-00

$2.19

7

PIPE, OUTLET

21V-14752-00-00

Unavailable

8

BOLT,HEXAGON

97017-06008-00

$2.52

9

SCREW, BINDING

98907-06010-00

$1.40

10

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

11

WASHER, WAVE(3RW)

90206-06090-00

$4.89

12

PROTECTOR, MUFFLER 1

1UY-14718-00-00

Unavailable

13

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

14

NUT(2UJ)

90179-06668-00

$5.75

15

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

16

WASHER (853)

90201-08326-00

Unavailable
