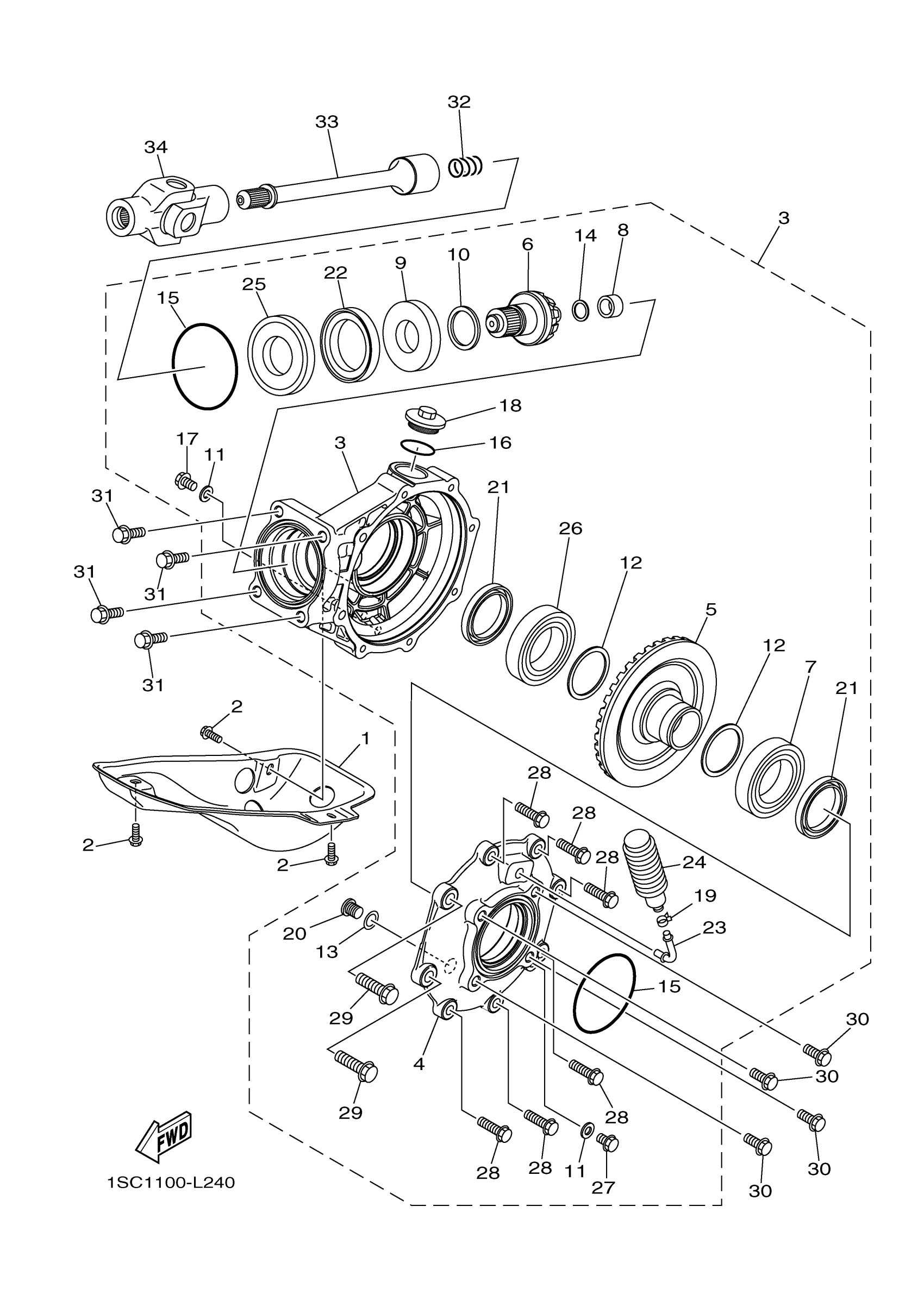

Yamaha YFM30GDL (GRIZZLY 300) 1SC50 2013 DRIVE SHAFT Diagram

#

Description
Price

1

GUARD 1

1SC-F2361-00-00

$72.23

2

BOLT, FLANGE

95817-06016-00

$1.49

3

REAR AXLE GEAR CASE ASSY

1SC-G6101-00-00

$1,248.99

4

HOUSING, BEARING

1SC-G6152-00-00

$231.00

5

RING GEAR COMP.

1SC-G6110-00-00

Unavailable

6

GEAR, DRIVE PINION

1SC-G6121-00-00

Unavailable

7

BEARING 1

1SC-G6164-00-00

$64.43

8

BEARING ASSY

1SC-G6102-00-00

$50.46

9

BEARING ASSY

1SC-G6106-00-00

$57.69

10

SHIM, PINION

1SC-G621E-00-00

$13.35

11

WASHER

1SC-G7359-00-00

Unavailable

12

SHIM, RING GEAR

1SC-G6117-00-00

$13.35

13

SHIM, STOPPER

1SC-G6157-00-00

$11.12

14

STOPPER

1SC-G6239-00-00

$3.78

15

O-RING 1

1SC-G6134-00-00

$13.35

16

O-RING 2

1SC-G6135-00-00

$8.66

17

BOLT 2

1SC-G6158-00-00

$41.74

18

PLUG

1SC-G7339-00-00

$1.83

19

CLIP

1SC-G5319-00-00

$10.38

20

STOPPER, RING GEAR

1SC-G6156-00-00

$10.38

21

OIL SEAL 1

1SC-G624A-00-00

$31.55

22

NUT 1

1SC-G6145-00-00

$46.08

23

PIPE

1SC-G5135-00-00

$19.14

24

BREATHER COMP.

1SC-G6190-00-00

$28.97

25

OIL SEAL 2

1SC-G624B-00-00

$34.74

26

BEARING 2

1SC-G6165-00-00

$49.14

27

BOLT 3

1SC-G6159-00-00

$8.97

28

BOLT 1

1SC-G5386-00-00

$8.25

29

BOLT 2

1SC-G5387-00-00

$8.62

30

BOLT 1

1SC-G6155-00-00

$4.15

31

BOLT 1

1SC-G6155-00-00

$4.15

32

SPRING SET

1SC-G6376-00-00

$2.83

33

SHAFT, DRIVE

1SC-G6172-00-00

$103.15

34

CROSS JOINT COMP. 3

1SC-G6108-00-00

$242.48
