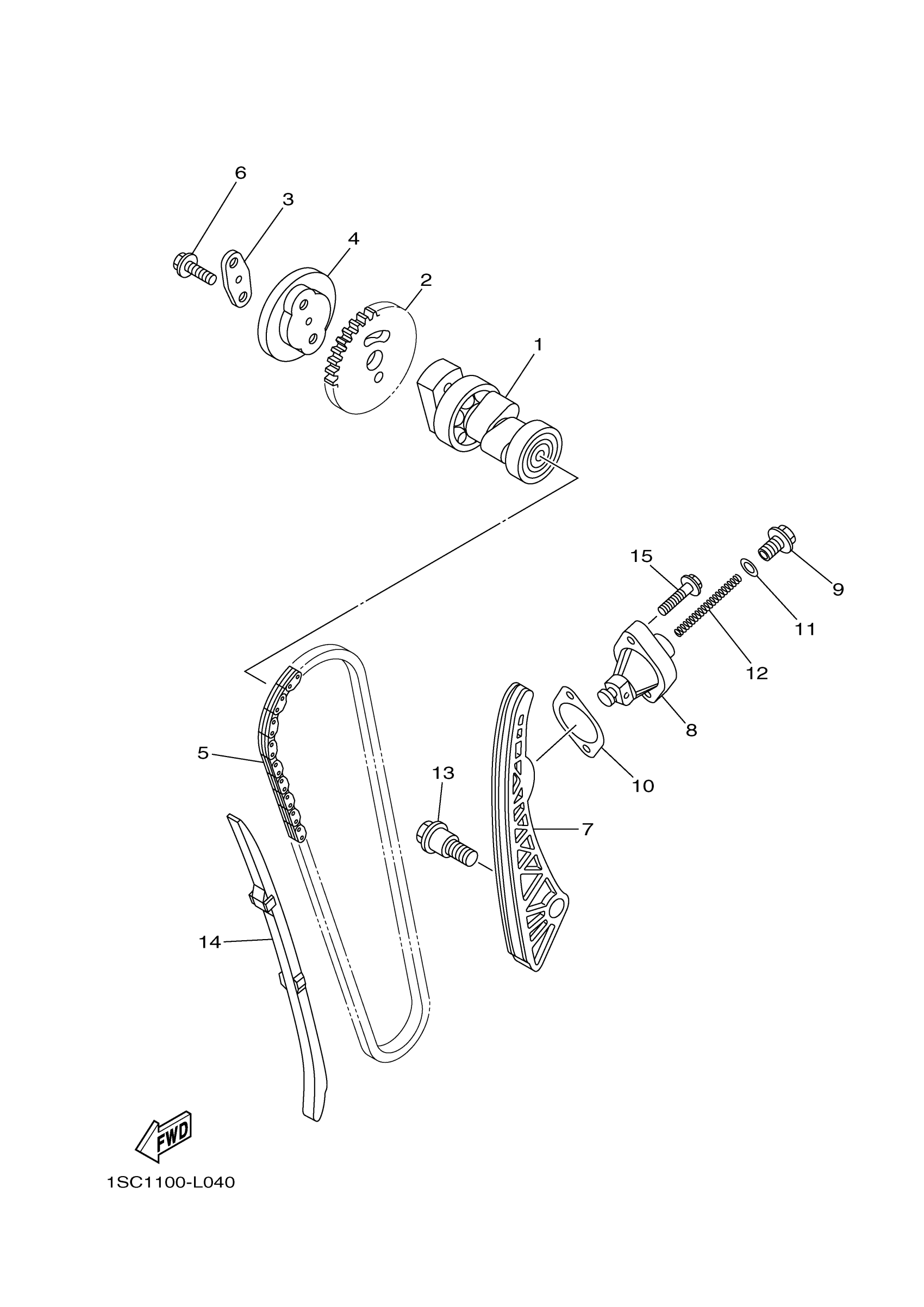

Yamaha YFM30GBGR (GRIZZLY 300) 1SC1 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1SC-E2170-00-00

$173.59

2

SPROCKET, CAM CHAIN

1SC-E2176-00-00

$39.29

3

PLATE, BOLT STOPPER

1SC-E2238-00-00

$4.44

4

PLATE, BREATHER 2

1SC-E1145-00-00

$3.80

5

CHAIN ASSY

1SC-E2190-00-00

Unavailable

6

BOLT, STOPPER

1SC-E2299-00-00

$3.03

7

GUIDE, STOPPER 2

1SC-E2241-00-00

Unavailable

8

TENSIONER ASSY

1SC-E2260-00-00

Unavailable

9

PLUG

1SC-E2222-00-00

Unavailable

10

GASKET, TENSIONER CASE

1SC-E2213-00-00

$6.42

11

O-RING (1J7)

93210-09350-00

$5.53

12

SPRING

1SC-E2216-00-00

Unavailable

13

BOLT

1SC-E2228-00-00

Unavailable

14

GUIDE, STOPPER 1

1SC-E2231-00-00

Unavailable

15

BOLT 2

1SC-E22A1-00-00

$2.17
