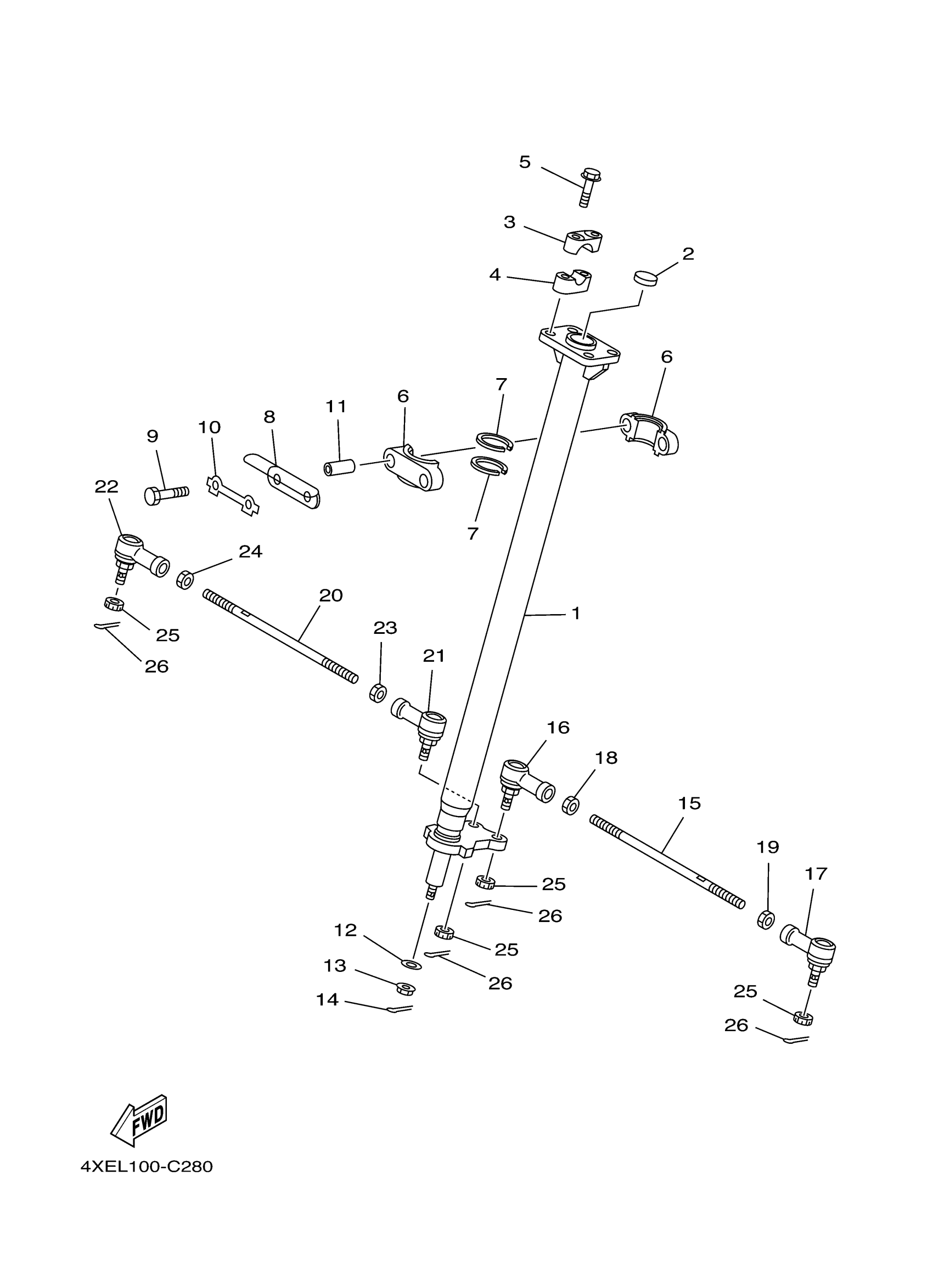

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

4XE-F3813-00-00

Unavailable

2

PLUG, TAPER(2HR)

90336-28053-00

$8.74

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HANDLE, HOLDER

164-23441-01-98

$25.75

5

BOLT, FLANGE

9502P-08050-00

Unavailable

6

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

7

OIL SEAL(1UY)

93112-31011-00

$7.52

8

BRACKET, STEERING

4XE-F3868-10-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

$7.72

10

WASHER, LOCK 1

1UY-23894-01-00

$6.86

11

COLLAR(85G)

90387-106T4-00

$11.29

12

WASHER, PLATE

90201-10036-00

$6.28

13

NUT, SELF-LOCKING (8U7)

90185-10115-00

$6.82

14

PIN, COTTER

91490-20025-00

$1.31

15

ROD, TIE

1P0-23831-00-00

$48.82

16

JOINT, UNIVERSAL 1

37S-23841-00-00

$78.58

17

JOINT, UNIVERSAL 2

4S2-23845-00-00

$76.97

18

NUT 1

1P0-F3833-00-00

$0.92

19

NUT 2

37S-23834-00-00

$5.31

20

ROD, TIE

1P0-23831-00-00

$48.82

21

JOINT, UNIVERSAL 1

37S-23841-00-00

$78.58

22

JOINT, UNIVERSAL 2

4S2-23845-00-00

$76.97

23

NUT 1

1P0-F3833-00-00

$0.92

24

NUT 2

37S-23834-00-00

$5.31

25

NUT, CASTLE

90171-12001-00

$2.85

26

PIN, COTTER

91490-25020-00

$2.94
