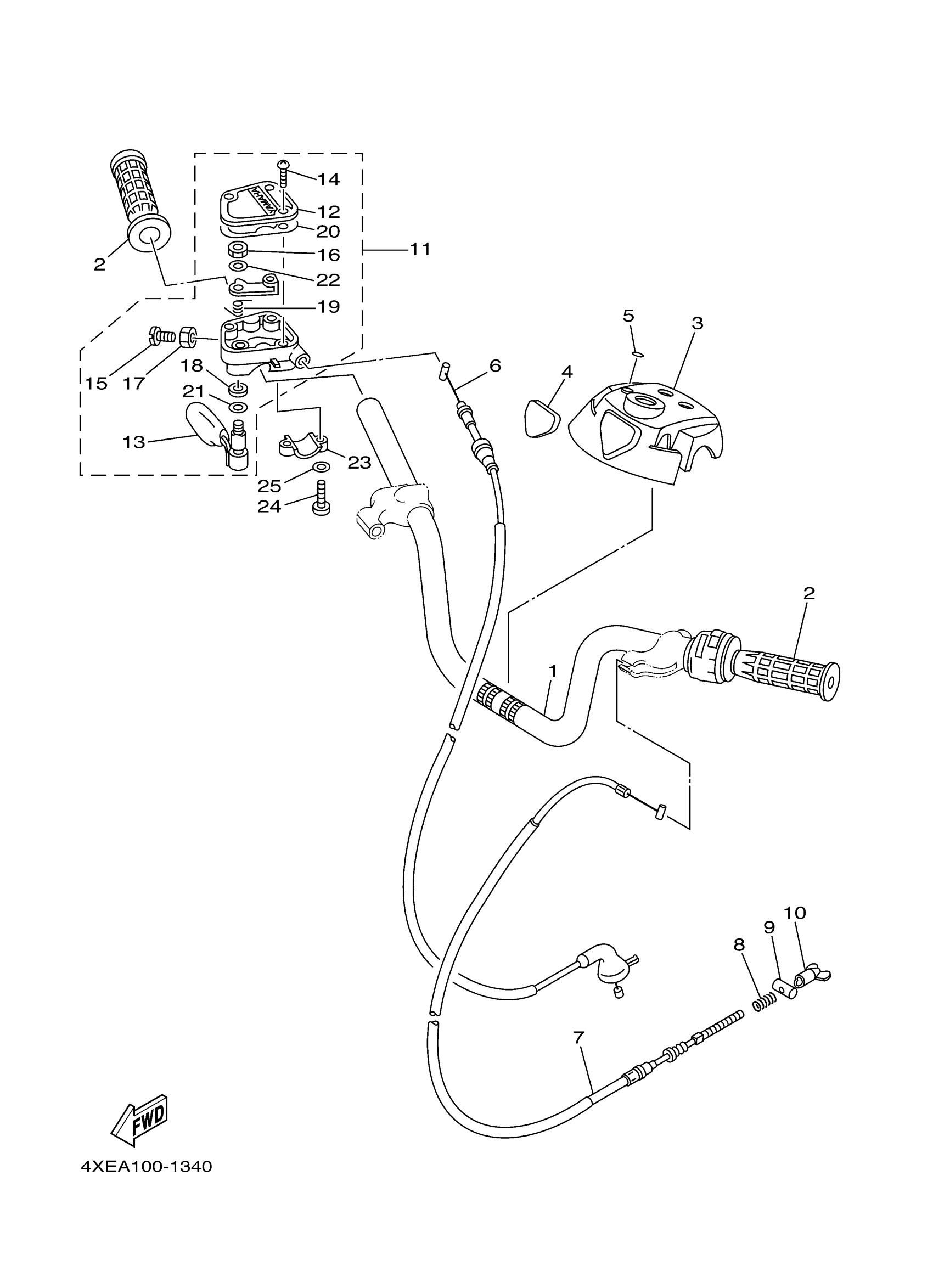

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

4XE-F6111-10-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR,HANDLEBAR

4XE-F6124-10-00

Unavailable

4

EMBLEM 3D

5FU-F6232-00-00

Unavailable

5

TUNING FORK MARK

5FU-F836B-00-00

Unavailable

6

CABLE, THROTTLE 1

4KB-26311-11-00

$51.60

7

CABLE, BRAKE

4XE-26341-00-00

$35.63

8

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

9

PIN 1562723700

90249-12008-00

$4.70

10

NUT, AJUSTING

20E-26343-00-00

$22.28

11

THROTTLE LEVER ASSY

4KB-26250-12-00

Unavailable

12

CAP, GEAR

4KB-2628F-10-00

$24.74

13

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

14

SCREW(3HE)

90149-04278-00

$0.74

15

SCREW, PAN HEAD

98517-05020-00

$1.35

16

NUT, U

95617-05100-00

$6.68

17

NUT, HEXAGON SMALL

95317-05700-00

$6.18

18

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

19

SPRING

1NV-26304-00-00

$11.17

20

GASKET

4KB-2628G-00-00

$10.63

21

WASHER

1NV-26129-00-00

$6.43

22

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

23

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

24

SCREW, PAN HEAD

98517-05020-00

$1.35

25

WASHER(1RW)

92907-05600-00

$0.78
