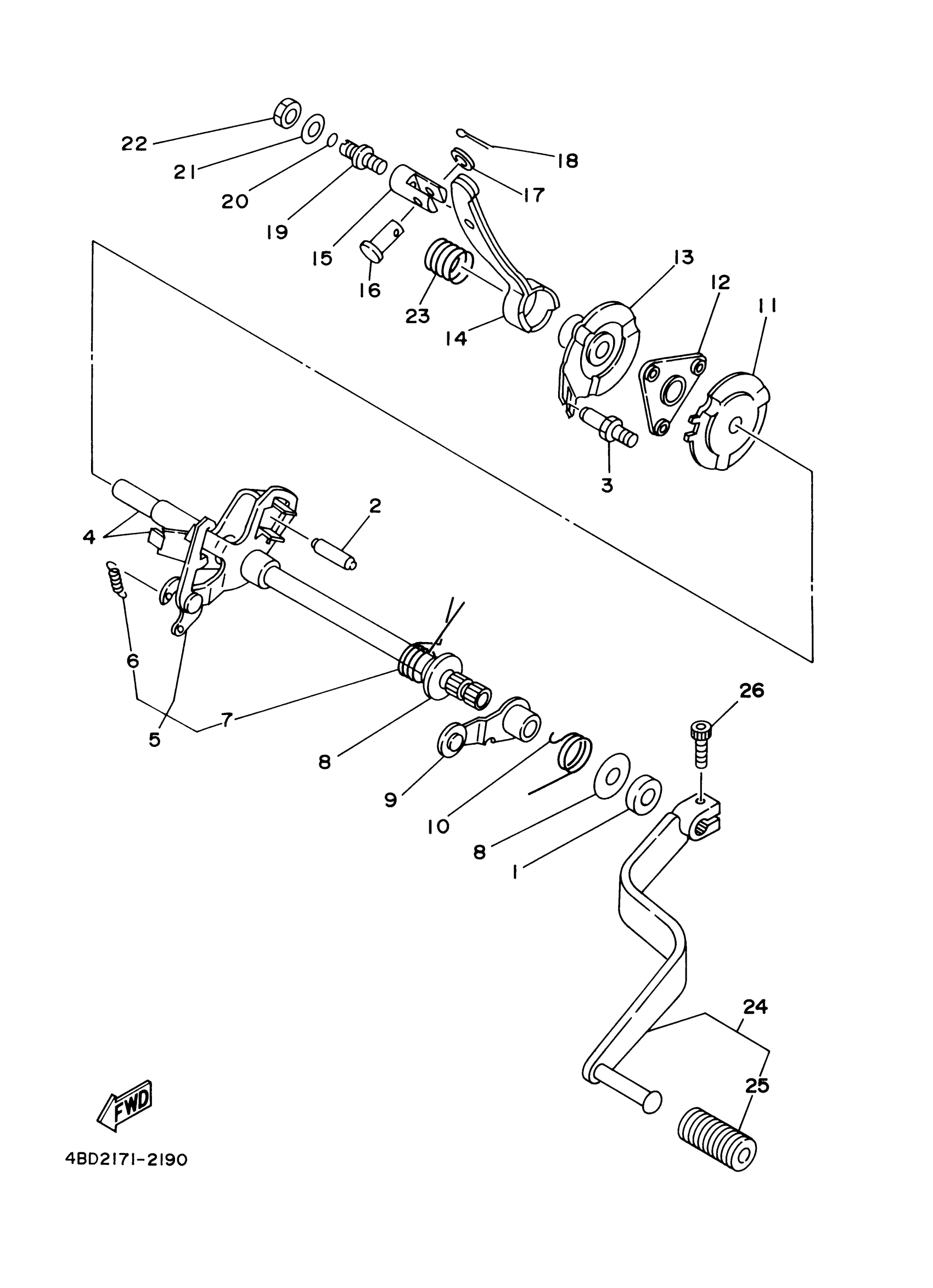

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 SHIFT SHAFT Diagram

#

Description
Price

1

OIL SEAL (12X22X5-371)

93102-12106-00

$10.14

2

PIN, DOWEL

93608-30152-00

Unavailable

3

BOLT, STOPPER

21V-18177-00-00

Unavailable

4

SHAFT,SHIFT

3GH-18103-01-00

Unavailable

5

SHIFT LEVER ASSY

21V-18120-00-00

$94.20

6

SPRING, TENSION (4H7)

90506-08227-00

$2.85

7

. SPRING, TORSION

90508-29570-00

Unavailable

8

WASHER

90201-12588-00

$6.37

9

STOPPER LEVER ASSY

4G0-18140-00-00

$36.06

10

SPRING, TORSION (15A)

90508-26539-00

$7.45

11

GUIDE

24W-18179-00-00

Unavailable

12

HOLDER, PAWL

21V-18181-00-00

$20.34

13

GUIDE SHIFT COMP.

24W-18104-00-00

Unavailable

14

ARM, SHIFT 3

2HT-1817A-00-00

Unavailable

15

PIN, LEVER

21V-18126-00-00

Unavailable

16

PIN, JOINT

21V-18118-00-00

Unavailable

17

WASHER(6TA)

92907-08600-00

$2.52

18

PIN, COTTER

91490-16020-00

$6.23

19

STOPPER, SCREW

21V-18127-00-00

$15.28

20

O-RING (21V)

93210-07590-00

$5.69

21

WASHER (1T1)

90201-08649-00

$6.29

22

NUT, HEXAGON SMALL

95317-08700-00

$7.05

23

SPRING, COMPRESSION

90501-16768-00

Unavailable

24

SHIFT PEDAL ASSY

4BD-18110-11-00

Unavailable

25

COVER, SHIFT PEDAL

22N-18113-00-00

$6.46

26

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.00
