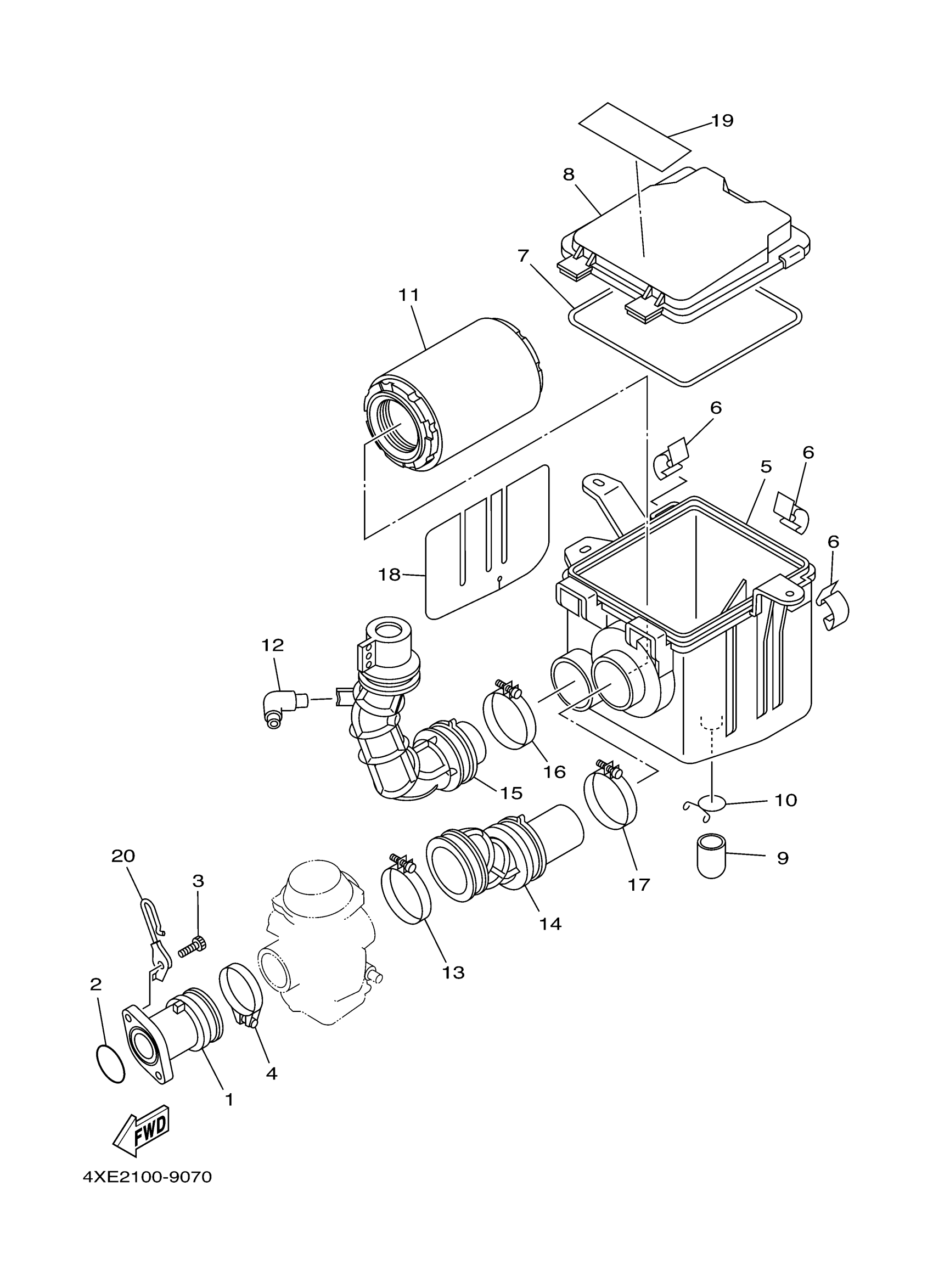

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

4XE-13586-00-00

$73.65

2

O-RING (16G)

93210-35537-00

$11.32

3

BOLT,SOCKET

91317-06020-00

$2.11

4

HOSE CLAMP ASSY

90450-49001-00

$12.43

5

CASE, AIR CLEANER

1P0-E4411-10-00

$40.23

6

CLIP, CAP FITTING

5ND-E4424-00-00

Unavailable

7

SEAL

1P0-E4462-00-00

$13.32

8

CAP, CLEANER CASE

1P0-E4412-10-00

Unavailable

9

PIPE, DRAIN

1P0-E4769-00-00

$4.42

10

CLIP, DRAIN CLEANE

1P0-E4438-00-00

Unavailable

11

ELEMENT ASSY, AIR

1P0-E4450-00-00

$34.05

12

PIPE

31A-14419-00-00

$6.62

13

HOSE CLAMP ASSY

90450-56001-00

$14.77

14

JOINT, AIR CLEANER 1

4XE-E4453-00-00

Unavailable

15

DUCT

4XE-E4437-00-00

Unavailable

16

HOSE CLAMP ASSY

90450-58002-00

$15.11

17

HOSE CLAMP ASSY

90450-56001-00

$14.77

18

PROTECTOR

4XE-E442F-10-00

Unavailable

19

PLATE, EPA 3 (CALIFORNIA)

4XE-2179T-20-00

Unavailable

20

GUIDE

4BD-2631F-00-00

Unavailable
