Description

Price

1

DISC, BRAKE (LEFT)

4XE-F582T-11-00

Unavailable

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$255.81

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

5

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

6

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

7

BRAKE PAD KIT

3GD-W0045-01-00

$33.19

8

SHIM, CALIPER

3GD-25827-00-00

$9.49

9

PIN, PAD

3GD-25933-00-00

$22.89

10

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$255.81

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$57.05

12

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

13

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

14

BRAKE PAD KIT

3GD-W0045-01-00

$33.19

15

SHIM, CALIPER

3GD-25828-00-00

$3.80

16

PIN, PAD

3GD-25933-00-00

$22.89

17

BOLT, FLANGE

90105-08161-00

$5.86

18

RING, WHEEL 1

4XE-F514A-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

$1.49

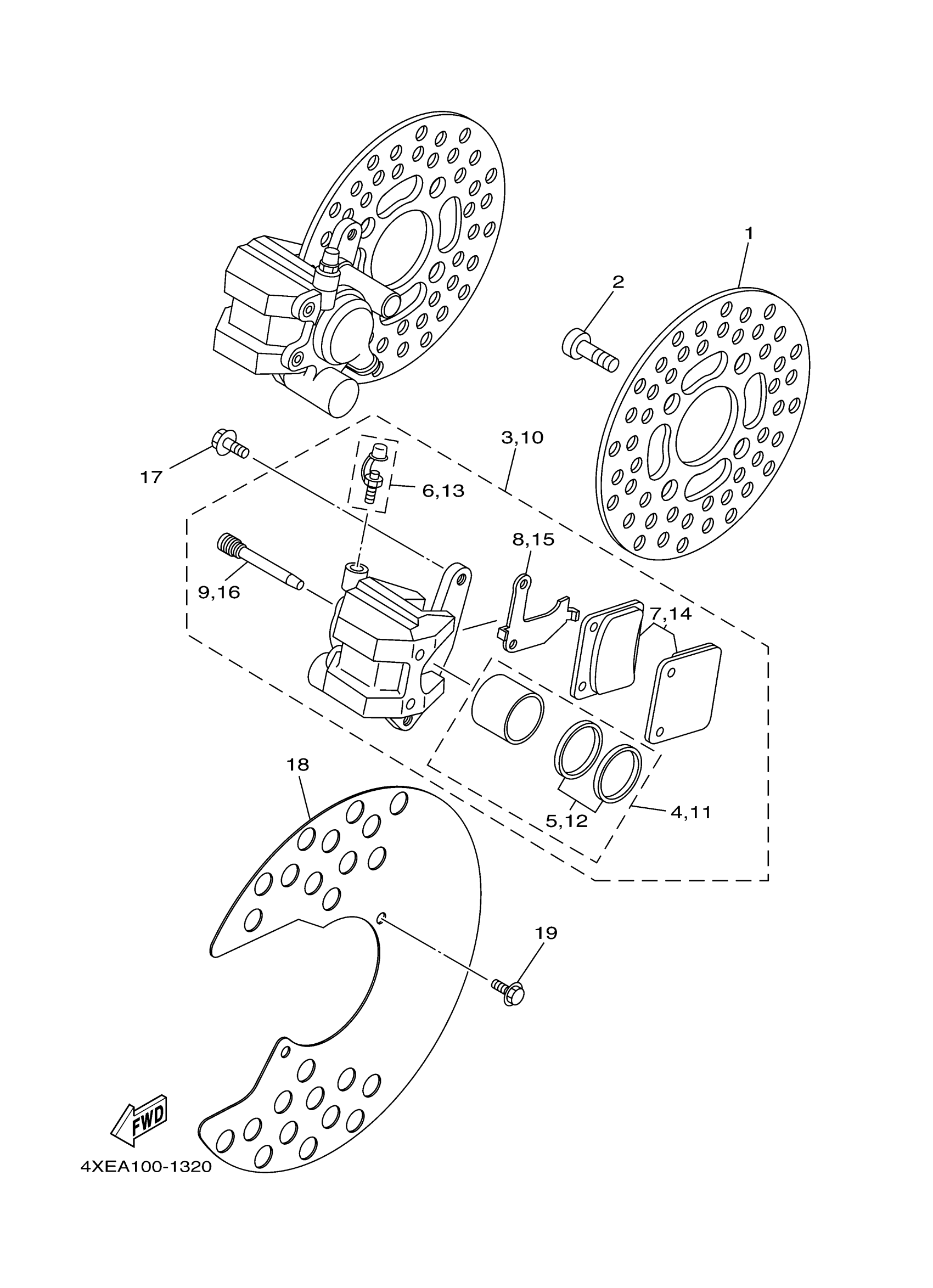

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (LEFT)

RING, WHEEL 1
