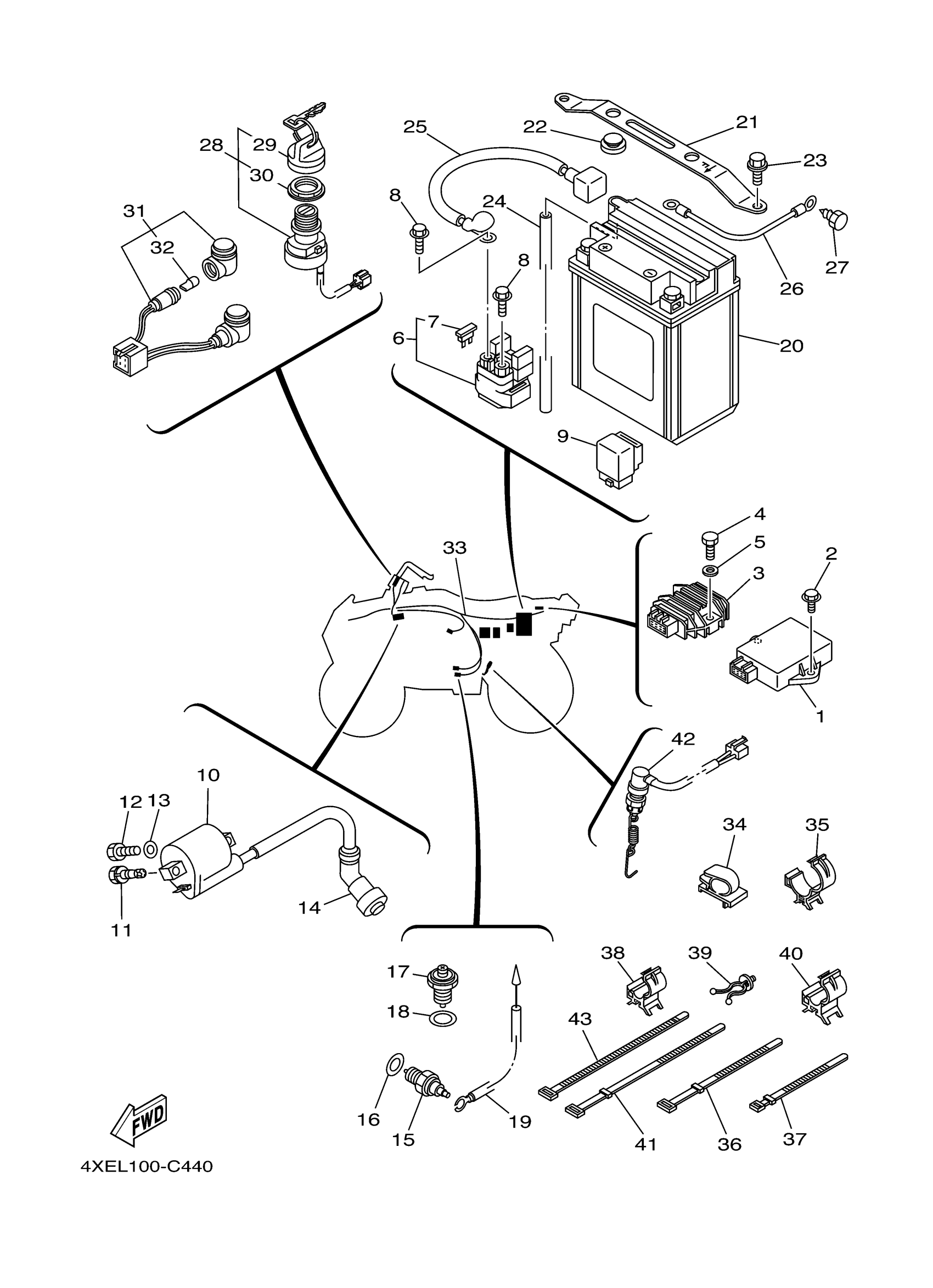

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4XE-85540-00-00

$299.53

2

BOLT, FLANGE

95817-06016-00

$1.49

3

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

4

BOLT, HEXAGON

97017-06020-00

$2.55

5

WASHER(6TA)

92907-06600-00

$0.78

6

STARTER RELAY ASSY (RC19-026)

4XE-81940-12-00

$111.45

7

FUSE (20A)

2GV-82151-00-00

$4.21

8

BOLT, FLANGE

95022-06008-00

$6.26

9

RELAY ASSY

12R-81950-02-00

Unavailable

10

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

11

BOLT

90109-06865-00

$0.74

12

BOLT, HEXAGON

97017-06020-00

$2.55

13

WASHER(6TA)

92907-06600-00

$0.78

14

PLUG CAP ASSY

3NS-82370-00-00

$31.58

15

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

16

GASKET (1KH,1.0T)

90430-10148-00

$4.74

17

NEUTRAL SWITCH ASSY

4KD-82540-00-00

$52.15

18

WASHER, PLATE

90201-12790-00

$6.85

19

WIRE, LEAD

4BD-82507-00-00

Unavailable

20

CB14A-A2 GS BATTERY

CB1-4AA20-00-00

Unavailable

21

BRACKET, BATTERY

4XE-H2128-00-00

Unavailable

22

STOPPER, MAIN STAND

128-27114-00-00

$6.62

23

BOLT, FLANGE

95817-06020-00

$2.69

24

PIPE, BREATHER

4XE-H2112-00-00

Unavailable

25

WIRE, PLUS LEAD

4XE-82115-00-00

Unavailable

26

WIRE, MINUS LEAD

29U-82116-00-00

Unavailable

27

SCREW, TAPPING

97702-60416-00

$3.00

28

MAIN SWITCH ASSY

4XE-82510-01-00

Unavailable

29

CAP, KEY

3HN-82579-00-00

$12.27

30

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

31

PILOT LIGHT ASSY

4XE-83530-00-00

$31.67

32

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

33

WIRE HARNESS ASSY

4XE-82590-50-00

Unavailable

34

CLAMP

90464-13831-00

Unavailable

35

CLAMP

90464-20835-00

Unavailable

36

CLAMP

90464-48800-00

$3.54

37

BAND, SWITCH CORD

437-83936-11-00

$3.20

38

CLAMP

90464-08834-00

Unavailable

39

CLAMP

90464-12815-00

Unavailable

40

CLAMP

90464-10842-00

Unavailable

41

CLAMP(JN6)

90464-40825-00

$1.77

42

STOP SWITCH ASSY

4XE-82530-10-00

$53.31

43

CLAMP

90464-48800-00

$3.54
