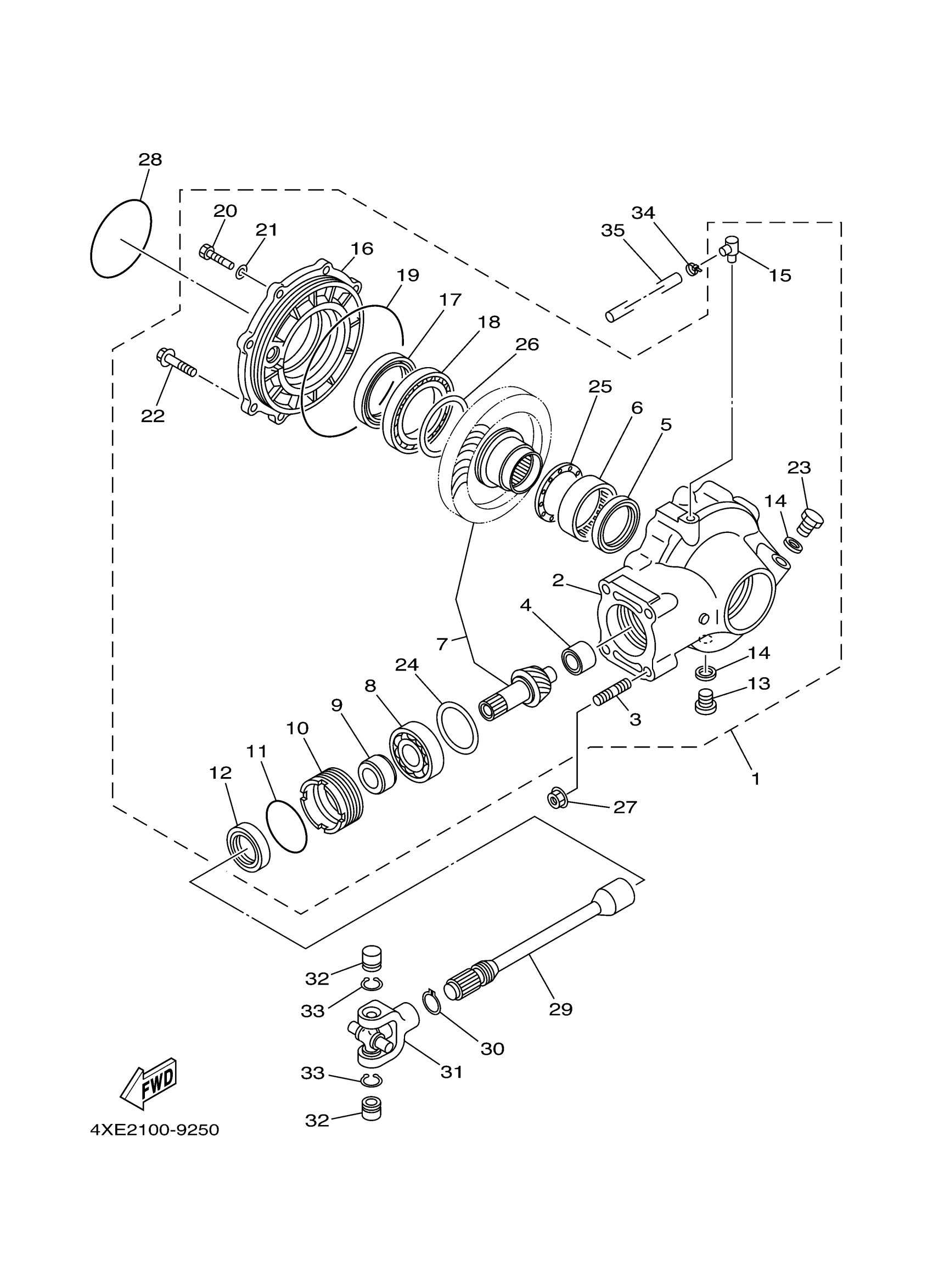

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

4XE-G6101-01-00

Unavailable

2

HOUSING, DRIVE SHAFT

4XE-G6151-01-00

Unavailable

3

BOLT,STUD

90116-10840-00

Unavailable

4

BEARING ASSY

4XE-G6102-00-00

$43.55

5

OIL SEAL (24W)

93101-52116-00

$14.22

6

BEARING

93317-855Y9-00

$37.68

7

RING GEAR SET

4XE-Y4612-00-00

Unavailable

8

BEARING

93306-305Y6-00

$38.80

9

COLLAR (24W)

90387-255H9-00

$26.89

10

RETAINER, BEARING

29U-46125-00-00

$86.69

11

O-RING (11H)

93210-59531-00

$13.54

12

OIL SEAL (4H7)

93101-38098-00

$15.43

13

PLUG, STRAIGHT SCREW

90340-14002-00

$16.95

14

GASKET

214-11198-01-00

$2.66

15

BREATHER

5UG-15371-00-00

$33.79

16

HOUSING, BEARING

4XE-G6152-01-00

Unavailable

17

OIL SEAL (22U)

93102-65277-00

$14.83

18

BEARING

93316-013Y0-00

$54.06

19

O-RING(59V)

93211-54698-00

$17.71

20

BOLT, WITH WASHER(72H)

97527-08525-00

Unavailable

21

WASHER(6TA)

92907-08600-00

$2.52

22

. BOLT, FLANGE

9581P-10045-00

Unavailable

23

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

24

SHIM, THRUST (.15MM)

4XE-E7537-15-00

Unavailable

24

. SHIM, THRUST(T=030MM)

4XE-E7537-30-00

Unavailable

24

. SHIM, THRUST(T=040MM)

4XE-E7537-40-00

Unavailable

24

SHIM, THRUST (.45MM)

4XE-E7537-45-00

Unavailable

24

SHIM, THRUST (.50MM)

4XE-E7537-50-00

Unavailable

24

SHIM, THRUST (.60MM)

4XE-E7537-60-00

$2.40

25

. SHIM, THRUST(T=10MM)

4XE-G6118-10-00

Unavailable

25

WASHER, THRUST (1.1MM)

4XE-G6118-11-00

$13.26

25

. SHIM, THRUST(T=12MM)

4XE-G6118-12-00

Unavailable

25

WASHER, THRUST (1.3MM)

4XE-G6118-13-00

Unavailable

25

WASHER, THRUST (1.4MM)

4XE-G6118-14-00

Unavailable

25

. SHIM, THRUST(T=15MM)

4XE-G6118-15-00

Unavailable

25

WASHER, THRUST (1.6MM)

4XE-G6118-16-00

$13.26

25

. SHIM, THRUST(T=17MM)

4XE-G6118-17-00

Unavailable

25

WASHER, THRUST (1.8MM)

4XE-G6118-18-00

$13.26

25

WASHER, THRUST (1.9MM)

4XE-G6118-19-00

Unavailable

25

. SHIM, THRUST(T=20MM)

4XE-G6118-20-00

Unavailable

25

. SHIM, THRUST(T=21MM)

4XE-G6118-21-00

Unavailable

25

. SHIM, THRUST(T=135MM)

4XE-G6118-A3-00

Unavailable

25

. SHIM, THRUST(T=145MM)

4XE-G6118-A4-00

Unavailable

25

. SHIM, THRUST(T=155MM)

4XE-G6118-A5-00

Unavailable

26

SHIM, RING GEAR (.25MM)

4XE-G6117-25-00

$4.23

26

SHIM, RING GEAR (.30MM)

4XE-G6117-30-00

$4.00

26

SHIM, RING GEAR (.35MM)

4XE-G6117-35-00

$4.23

26

. SHIM, RING GEAR(T=040MM)

4XE-G6117-40-00

Unavailable

26

SHIM, RING GEAR (.45MM)

4XE-G6117-45-00

$4.23

26

SHIM, RING GEAR (.50MM)

4XE-G6117-50-00

Unavailable

27

NUT, FLANGE(8AB)

95707-10500-00

$1.66

28

O-RING(59V)

93210-85706-00

$10.68

29

SHAFT, DRIVE

4XE-G6172-00-00

Unavailable

30

CIRCLIP (537)

93410-22039-00

$6.17

31

CROSS JOINT COMP.

4X7-46180-00-00

$198.98

32

BEARING(2HR)

93399-99926-00

$56.77

33

CIRCLIP (4X7)

93440-20088-00

$5.10

34

CLIP (1J7)

90467-07029-00

$1.92

35

HOSE (L900)

90445-078C4-00

Unavailable
