Description

Price

1

CYLINDER HEAD ASSY

4BD-11101-03-00

Unavailable

2

CIRCLIP (4G0)

93440-10085-00

$6.17

3

SCREW

90153-06029-00

$8.06

4

GASKET 256113960000

90430-06014-00

$7.23

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

$61.46

6

ABSORBER 2

15A-11162-00-00

$18.34

7

ABSORBER 2

15A-11162-00-00

$18.34

8

GASKET, CYLINDER HEAD 1

3GH-11181-00-00

$46.55

9

PIN, DOWEL

99530-14016-00

$3.20

10

PIN, DOWEL(4XL)

93612-16254-00

$4.37

11

GASKET (29U)

90430-12186-00

$13.06

12

BOLT, FLANGE

90105-08160-00

$6.38

13

WASHER, PLATE

90201-080L7-00

$3.42

14

BOLT, SOCKET

91317-08045-00

$6.82

15

WASHER, PLATE(3LN)

90201-086M0-00

$6.86

16

BREATHER ASSY

4BD-11160-01-00

Unavailable

17

PLATE, BREATHER

4KB-11165-00-00

$23.92

18

PIPE, BREATHER 1

4XE-11166-00-00

$20.78

19

CLIP (371)

90467-14015-00

$7.51

20

O-RING (4X7)

93210-92448-00

$8.91

21

BOLT, BUTTON HEAD

92017-06012-00

$2.05

22

O-RING (5H0)

93211-05471-00

$11.63

23

SCREW, PAN

98517-06020-00

$1.82

24

COVER, CYLINDER HEAD SIDE 2

3GC-11186-00-00

$20.46

25

COVER, CYLINDER HEAD SIDE 3

3GC-11187-00-00

$20.00

26

O-RING

93210-57634-00

$12.58

27

BOLT,SOCKET

91317-06018-00

$6.17

28

PLATE

5H0-1111F-00-00

$22.20

29

BOLT, HEXAGON

97017-06012-00

$2.62

30

WASHER, LOCK (5H0)

90215-06184-00

$9.10

31

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

$3.92

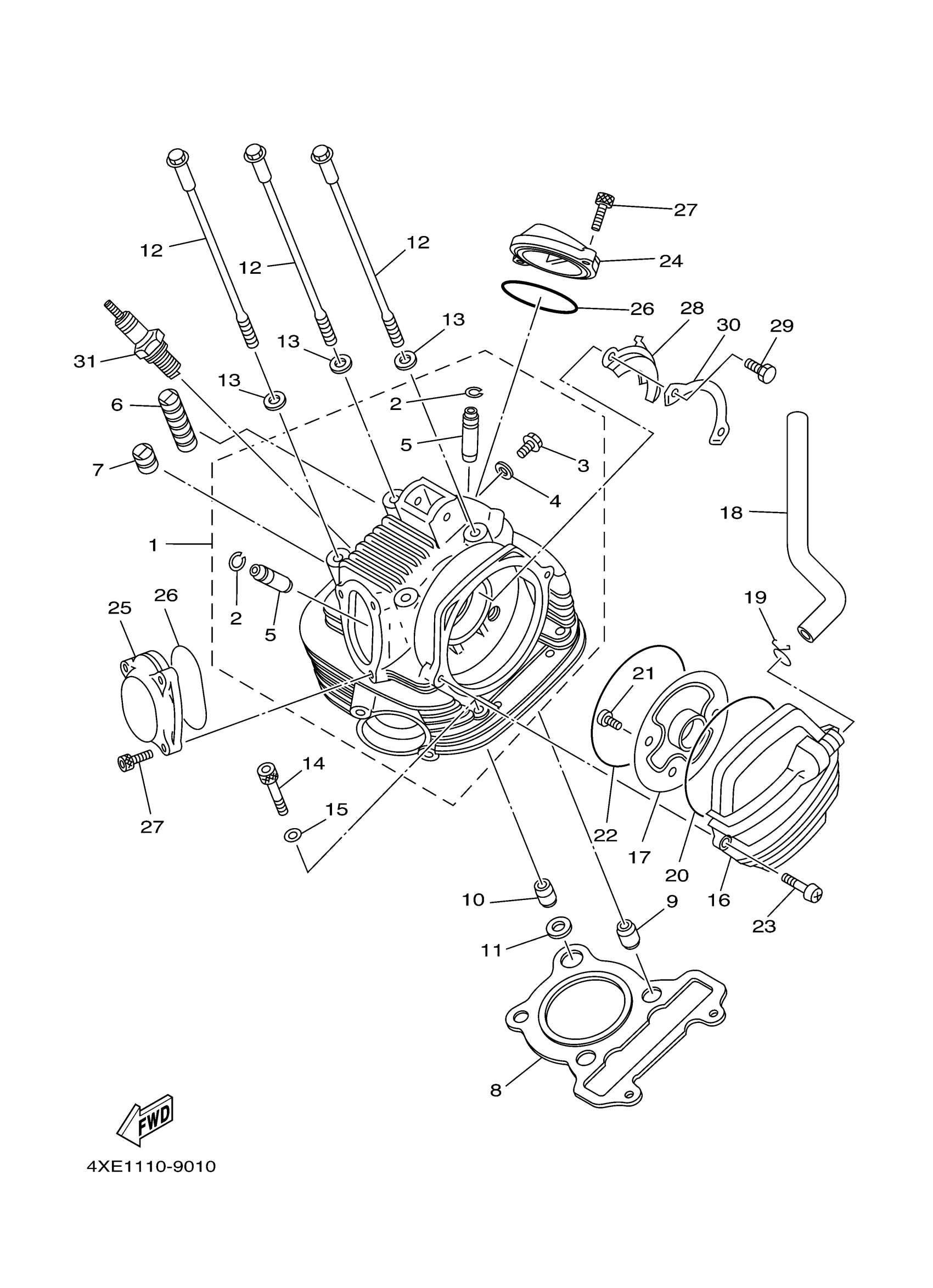

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

BREATHER ASSY
