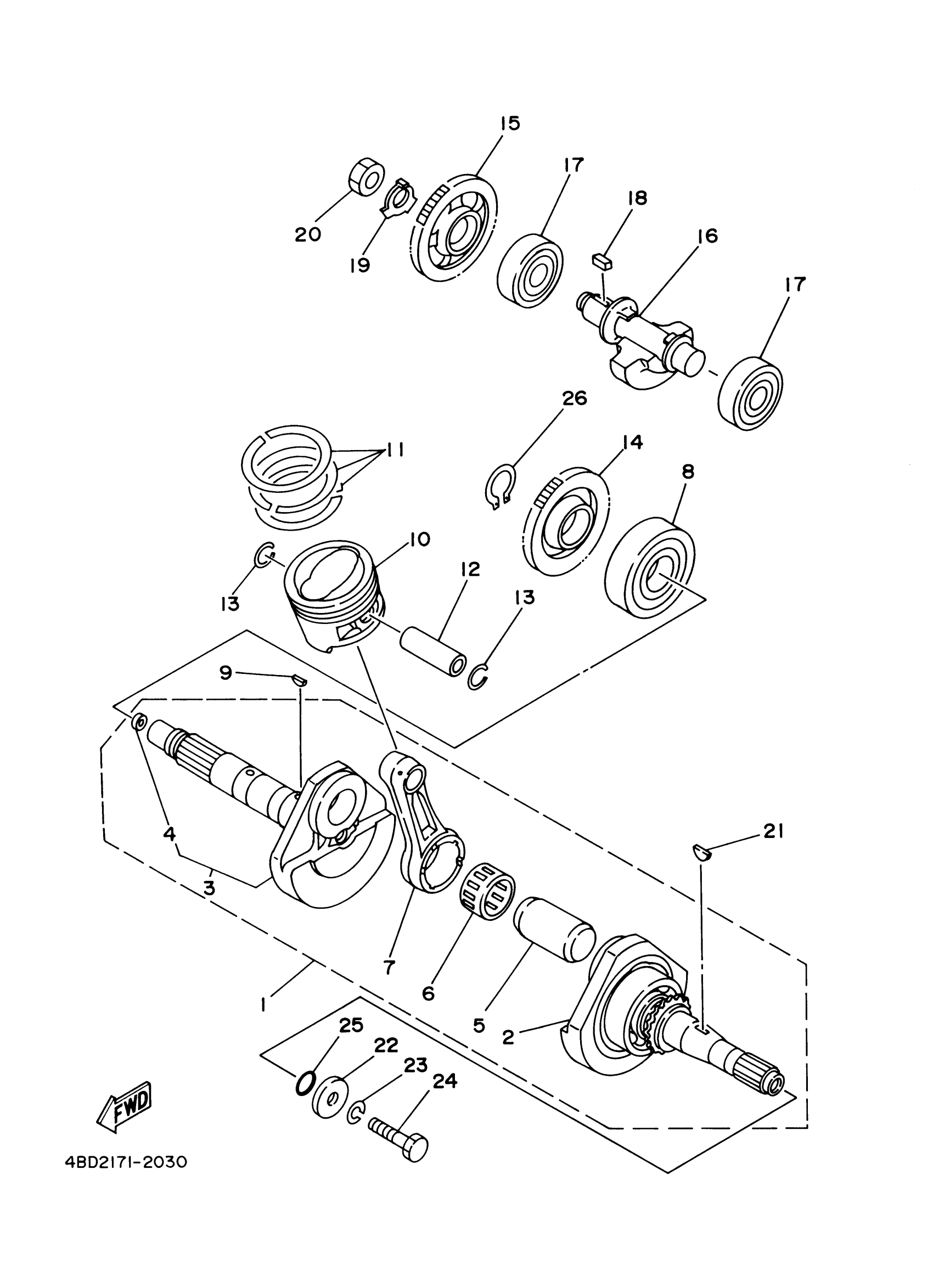

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5XG-E1400-00-00

Unavailable

2

CRANK SUB ASSY 1

29U-11401-09-00

Unavailable

3

. CRANK 2

29U-11422-01-00

Unavailable

4

.. PLUG

90331-09041-00

Unavailable

5

PIN, CRANK 1

5H0-11681-00-00

$41.20

6

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$57.35

7

ROD, CONNECTING

29U-11651-00-00

$111.80

8

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$72.96

9

KEY WOODRUFF 146115450000

90280-03017-00

$5.78

10

PISTON (STD)

4BD-11631-00-Y0

$114.77

10

PISTON (0.50MM O/S)

4BD-11636-00-00

$105.97

10

PISTON (1.00MM O/S)

4BD-11638-00-00

$87.98

11

PISTON RING SET (STD)

4BD-11610-00-00

$45.13

11

PISTON RING SET (0.50MM O/S)

4BD-11610-20-00

$60.43

11

PISTON RING SET (1.00MM O/S)

4BD-11610-40-00

$60.84

12

PIN, PISTON

29U-11633-00-00

Unavailable

13

CIRCLIP (1L9)

93450-17044-00

$5.10

14

GEAR, DRIVE

2HT-11536-00-00

Unavailable

15

GEAR, BALANCE WT

5H0-11531-00-00

$157.51

16

WEIGHT 1

4BD-11454-00-00

$160.69

17

BEARING

93306-30443-00

$56.87

18

KEY, STRAIGHT(34K)

90282-05065-00

$8.80

19

WASHER, LOCK (15Y)

90215-14205-00

$4.70

20

NUT (5H0)

90170-14284-00

$7.92

21

KEY, WOODRUFF

90280-05001-00

$10.68

22

WASHER, PLATE

90201-10058-00

$7.68

23

WASHER(6TA)

92907-10100-00

$6.18

24

BOLT (21V)

90101-10568-00

$4.35

25

O-RING (538)

93210-16290-00

$6.82

26

CIRCLIP

99009-26400-00

$6.94
