Description

Price

1

GASKET, CRANKCASE COVER 1

4BD-15451-01-00

$15.32

2

PIN, DOWEL

99530-12016-00

$4.12

3

ADAPTOR

4BD-15787-10-00

Unavailable

4

OIL SEAL (21V)

93103-28141-00

$19.09

5

BEARING(55X)

93306-07801-00

$51.93

6

WASHER, THRUST

21V-15719-00-00

$8.18

7

SCREW, FLAT

98707-05016-00

$5.60

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.12

9

SCREW, PAN

98507-06040-00

$2.25

10

SCREW, PAN

98507-06060-00

$5.60

11

GASKET, CRANKCASE COVER 3

4BD-15462-00-00

$26.78

12

PIN, DOWEL

99530-12016-00

$4.12

13

SCREW, PAN

98507-06040-00

$2.25

14

COVER, CRANKCASE 3

4BD-15431-02-00

Unavailable

15

SPACER, ENGINE MOUNT

4BD-15317-00-00

$168.38

16

PIN, DOWEL

99530-12016-00

$4.12

17

SCREW, PAN

98507-06040-00

$2.25

18

PROTECTOR, COVER

21V-15499-00-00

Unavailable

19

SCREW, BINDING

98907-06014-00

$5.60

20

GASKET, CARBURETOR COVER 2

4BD-15463-01-00

$28.48

21

SCREW, PAN HEAD

98507-06070-00

$6.91

22

SCREW, PAN

98507-06040-00

$2.25

23

SCREW, PAN

98507-06080-00

$5.23

24

PLUG, OIL LEVEL

1UY-15362-01-00

$15.45

25

O-RING (646)

93210-19123-00

$6.91

26

BEARING(37F)

93306-20335-00

$29.71

27

OIL SEAL (21V)

93101-17113-00

$10.51

28

PLATE, BEARING COVER

21V-15381-00-00

Unavailable

29

SCREW, FLAT

98707-06018-00

$5.09

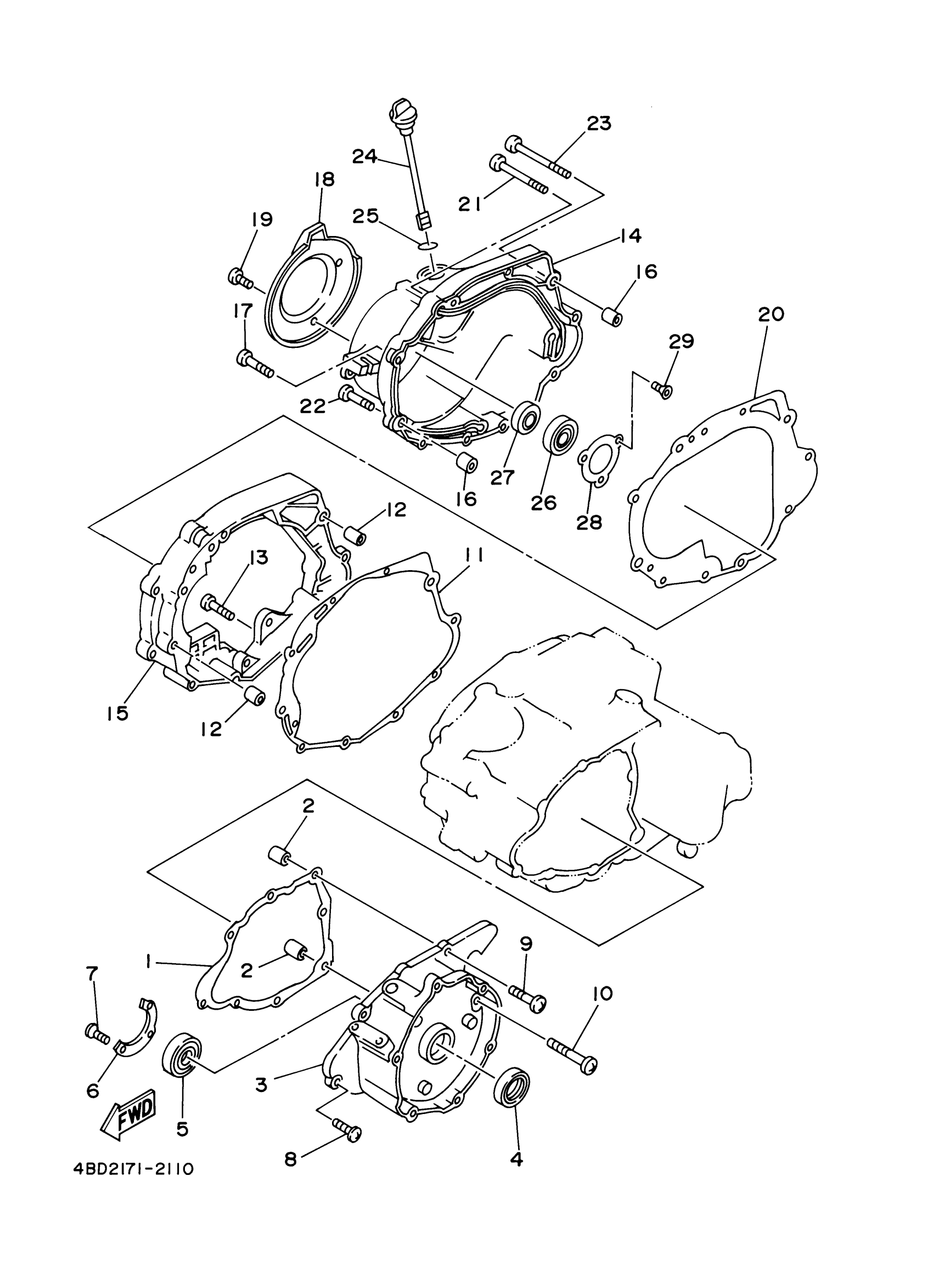

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 CRANKCASE COVER 1 Diagram

ADAPTOR

COVER, CRANKCASE 3

PROTECTOR, COVER

PLATE, BEARING COVER
