Description

Price

1

CARB. SUB ASSY

4XE-14140-13-00

$730.38

2

SPRING, DIAPHRAGM

4XE-14933-00-00

$7.62

3

DIAPHRAGM ASSY

4WU-14940-00-00

$261.46

4

NEEDLE SET

4XE-1490J-00-00

$25.32

5

NOZZLE, MAIN

4WU-14141-42-00

$40.68

6

SCREW, PAN HEAD

98517-04012-00

$3.28

7

PLUG, DRAIN

3FV-14191-00-00

$21.37

8

DIAPHRAGM SET, 5

26H-1490H-00-00

$69.90

9

PILOT SCREW SET

4RF-14105-00-00

$29.86

10

JET, PILOT (# 42.5)

4G0-14142-42-A0

$11.40

11

JET, MAIN (# 95)

620-14231-19-00

$10.29

12

WASHER,MAIN JET

137-14153-00-00

$6.45

13

FLOAT

2VA-14185-00-00

$84.99

14

PIN, FLOAT

537-14186-00-00

$7.28

15

NEEDLE VALVE SET

1UY-14107-20-00

$36.42

16

O-RING

2LN-14147-00-00

$6.72

17

NET, FILTER

1J7-14994-00-00

$21.52

18

SCREW, PAN HEAD

98517-04012-00

$3.28

19

SCREW

2LN-14565-00-00

$5.50

20

HOSE (L340)

90445-08684-00

$3.37

21

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.45

22

PLUNGER, STARTER

4KB-14993-00-00

$92.15

23

PILOT JET, AIR (1.6)

2A2-14172-16-00

$10.34

24

THROTTLE SCREW SET

2VA-14103-00-00

Unavailable

25

PIPE

4KB-14193-20-00

$39.88

26

CLIP

4XE-14937-00-00

$13.68

27

. WASHER

4KB-14285-00-00

Unavailable

28

WASHER

22U-14952-00-00

$3.03

29

NUT, CABLE ADJUSTING

522-14161-00-00

$8.49

30

COVER SUB ASSY

4XE-14480-00-00

Unavailable

31

O-RING

4KB-14147-00-00

$22.77

32

SCREW, PAN HEAD

98517-04012-00

$3.28

33

GUIDE, CABLE

1UY-14155-00-00

$15.83

34

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95

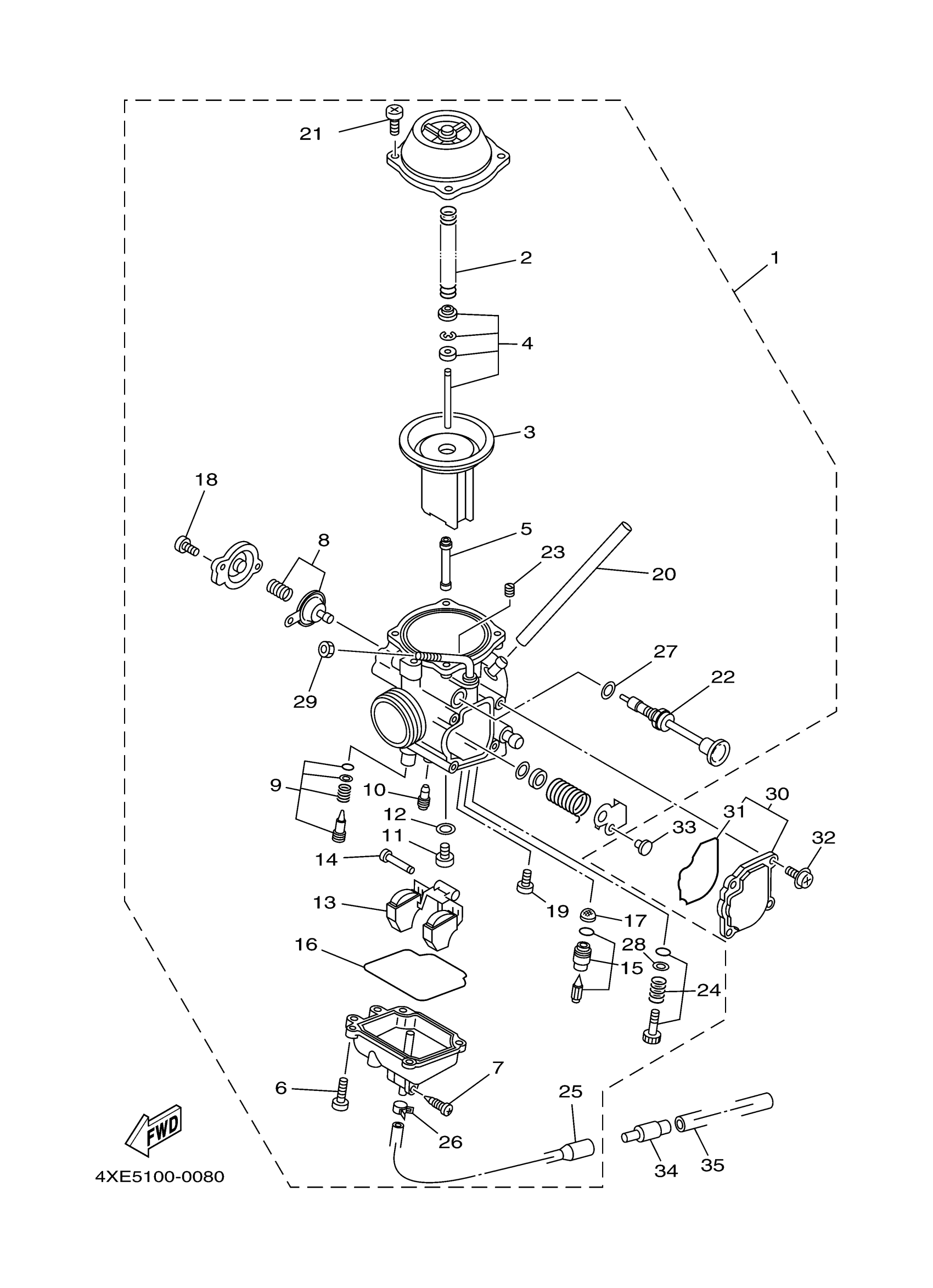

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 CARBURETOR Diagram
