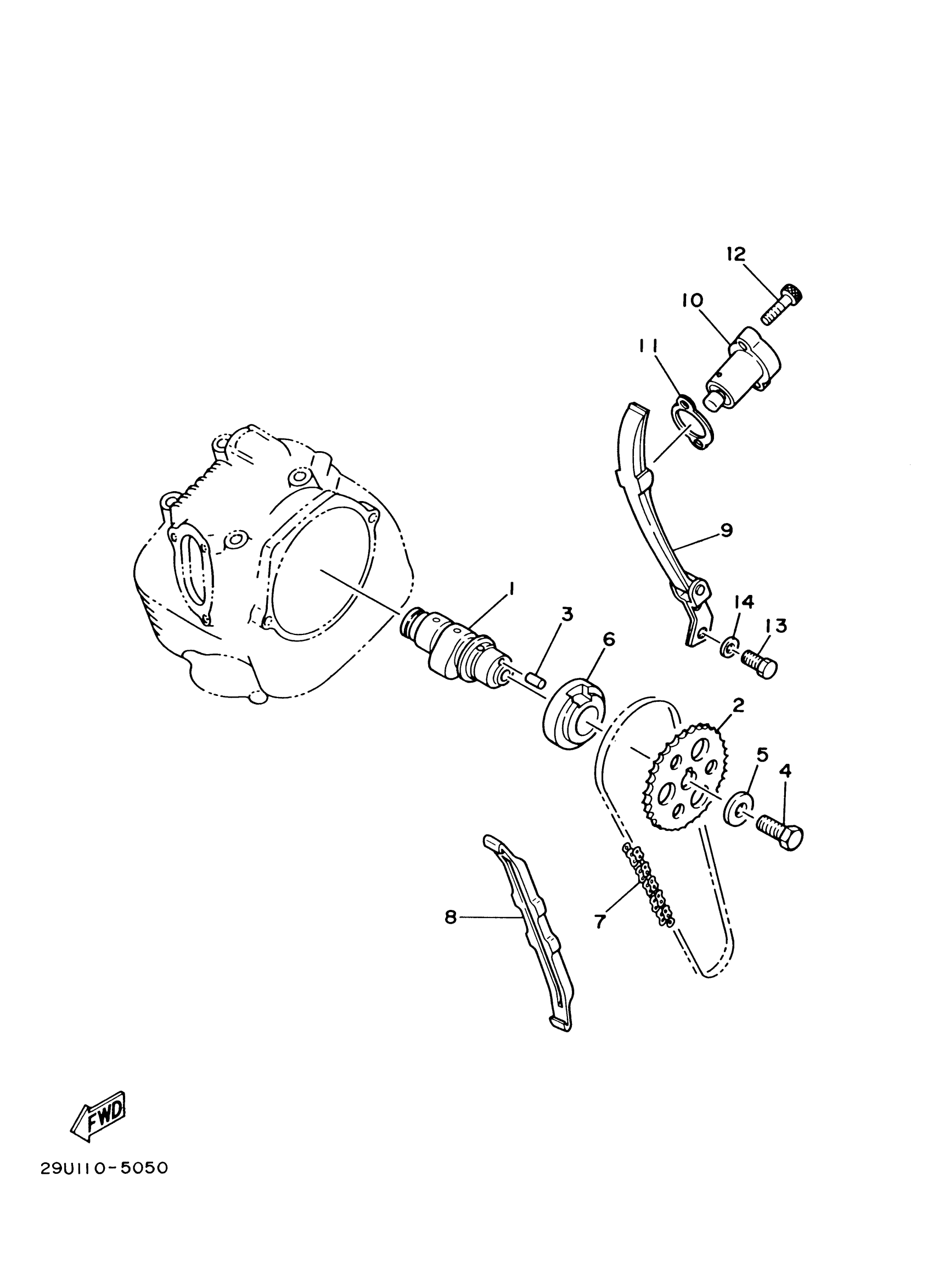

Yamaha YFM25XS (BEARTRACKER) 4XEL 2004 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5H0-12171-02-00

Unavailable

2

SPROCKET, CAM CHAIN

5H0-12176-00-00

$23.29

3

PIN,DOWEL (603)

93604-10011-00

$5.10

4

BOLT (583)

90101-10303-00

$6.25

5

WASHER, PLATE (3L6)

90201-10774-00

$6.25

6

COLLAR(2HT)

90387-251T0-00

$29.53

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$64.93

8

GUIDE, STOPPER 1

5H0-12231-01-00

$21.63

9

GUIDE, STOPPER 2

5N0-12241-01-00

$50.85

10

TENSIONER ASSY, CAM CHAIN

3GC-12210-10-00

$99.78

11

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.57

12

BOLT, SMALL FLANGE

95027-06025-00

$3.18

13

BOLT, HEXAGON

97017-06016-00

$6.18

14

WASHER(6TA)

92907-06600-00

$0.78
