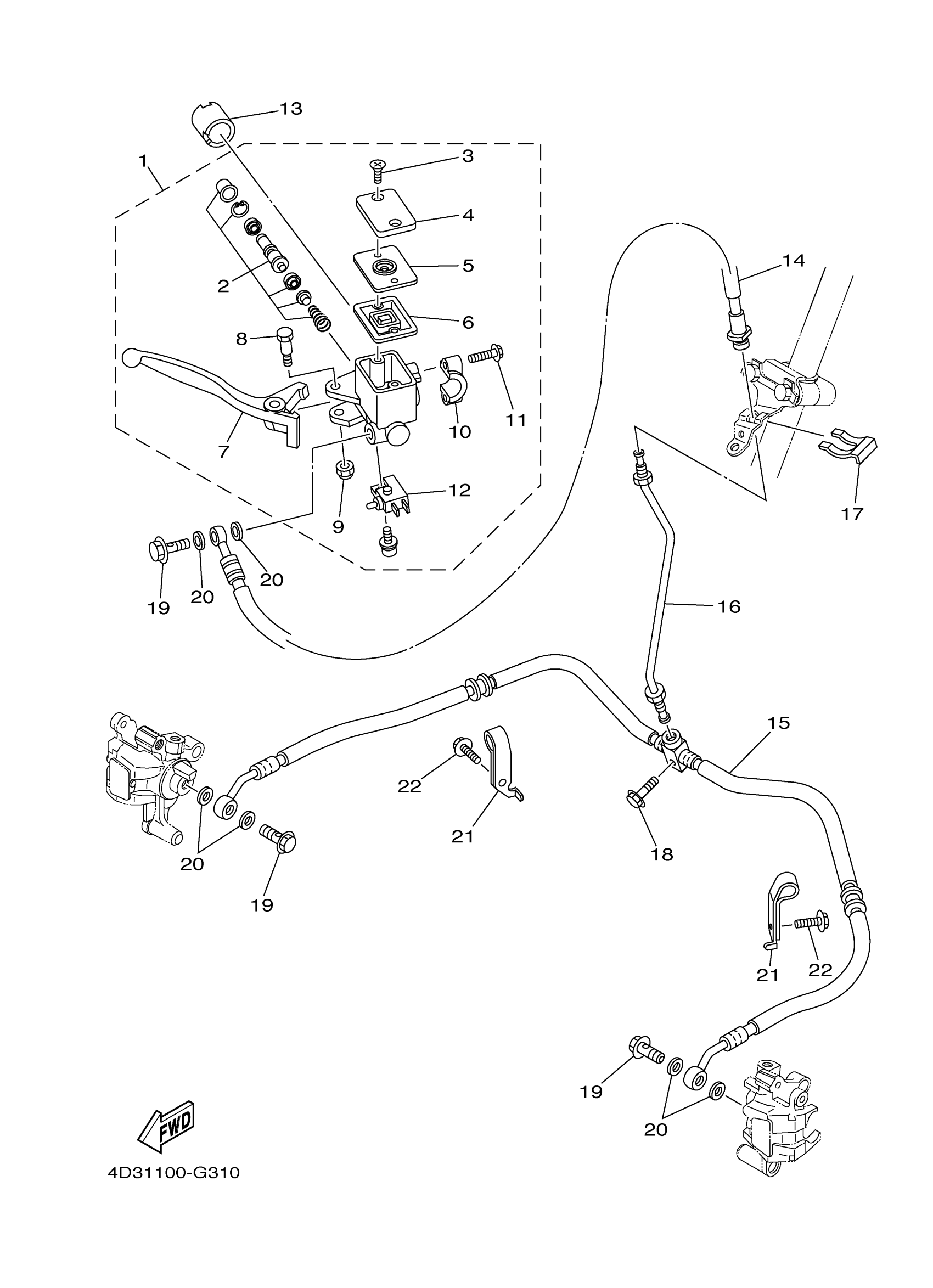

Yamaha YFM25RXGY (RAPTOR 250) 4D31 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

4D3-2583T-02-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$35.01

3

SCREW

3D8-2589H-10-00

$6.16

4

CAP, RESERVOIR

5YU-25852-00-00

$29.07

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$8.50

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$15.12

7

LEVER 2

4D3-83922-00-00

Unavailable

8

BOLT, LEVER

3B4-2589F-00-00

Unavailable

9

NUT, U(4NK)

95604-06100-00

$6.35

10

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$16.90

11

BOLT, FITTING

5MV-25833-00-00

$5.48

12

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

13

COLLAR

1UY-26259-00-00

$16.50

14

HOSE, BRAKE 1

4D3-25872-00-00

Unavailable

15

HOSE, BRAKE 2

4D3-25873-00-00

Unavailable

16

PIPE, BRAKE

4D3-25871-00-00

Unavailable

17

CIRCLIP

2GU-25866-00-00

Unavailable

18

BOLT, FLANGE

95822-06025-00

Unavailable

19

BOLT, UNION

90401-10015-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE

4D3-25886-00-00

Unavailable

22

BOLT, FLANGE

95817-06016-00

Unavailable
