Description

Price

1

JOINT, CARBURETOR 1

4D3-13586-00-00

$54.78

2

O-RING (16G)

93210-35537-00

$11.32

3

BOLT,SOCKET HEAD

91314-06020-00

$2.05

4

JOINT, CARBURETOR 2

4D3-13596-00-00

$50.68

5

HOSE CLAMP ASSY

90450-47002-00

$7.15

6

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

7

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95

8

HOSE CLAMP ASSY

90450-58003-00

$16.68

9

CASE, AIR CLEANER 1

4D3-14411-00-00

$68.71

10

JOINT, AIR CLEANER 1

4D3-14453-01-00

Unavailable

11

PIPE

31A-14419-00-00

$6.62

12

PLATE

2XJ-14477-00-00

$38.06

13

HOLDER, GUIDE

4D3-14459-00-00

$36.16

14

NUT, U

95617-05100-00

$6.68

15

ELEMENT, AIR CLEANER

2XJ-14451-01-00

Unavailable

16

GUIDE

2XJ-14458-00-00

$26.86

17

WASHER (4H7)

90209-06096-00

$6.57

18

BOLT, WING

90122-06005-00

$10.05

19

CAP, CLEANER CASE 1

4D3-14412-00-00

$23.63

20

SEAL

1VJ-14462-00-00

$16.08

21

HOOK

5TH-14436-00-00

$8.74

22

SEAL

59V-14457-00-00

$5.65

23

CLIP

90467-220A1-00

$5.14

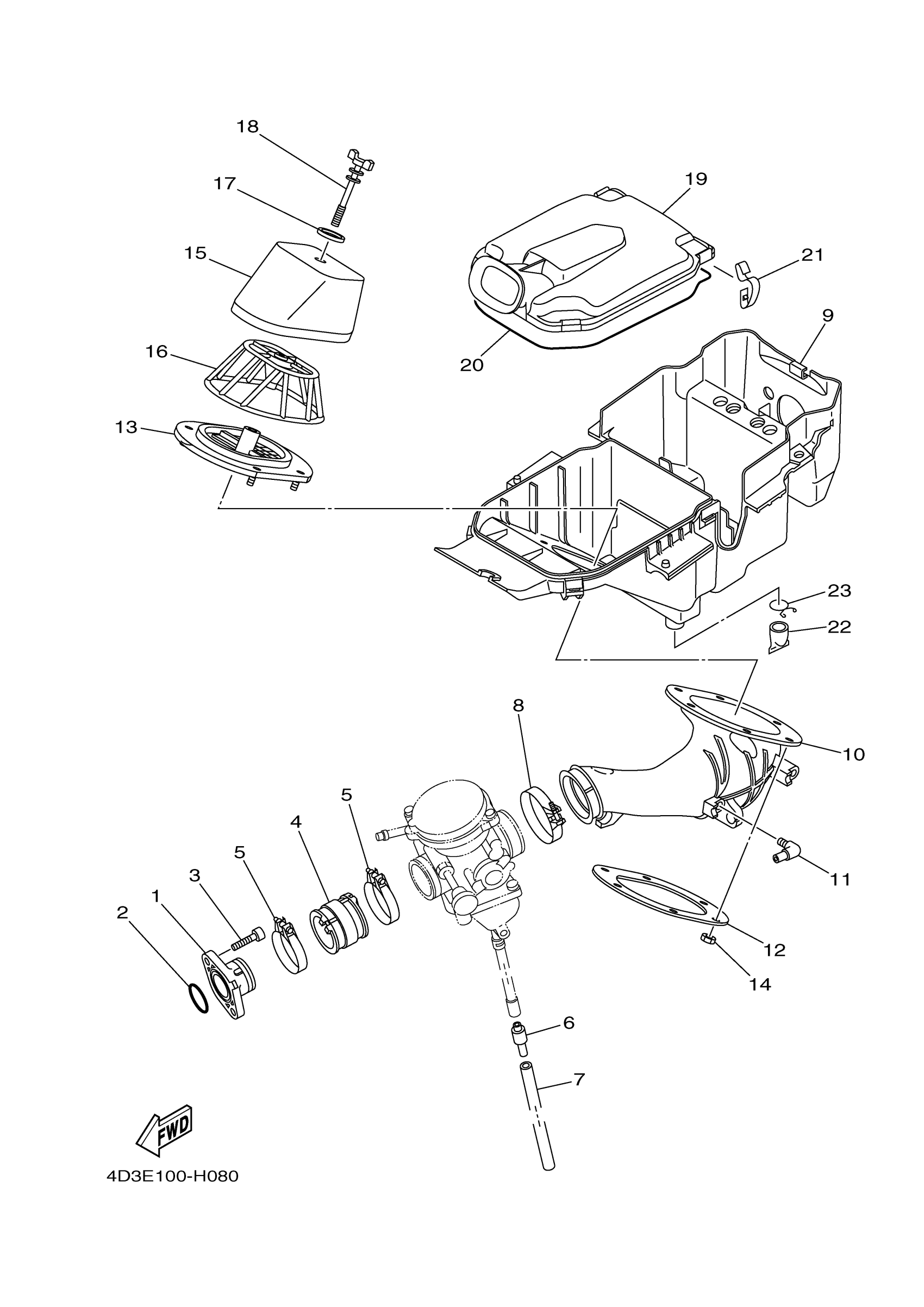

Yamaha YFM25RDL (RAPTOR 250) 1BTM 2013 INTAKE Diagram
