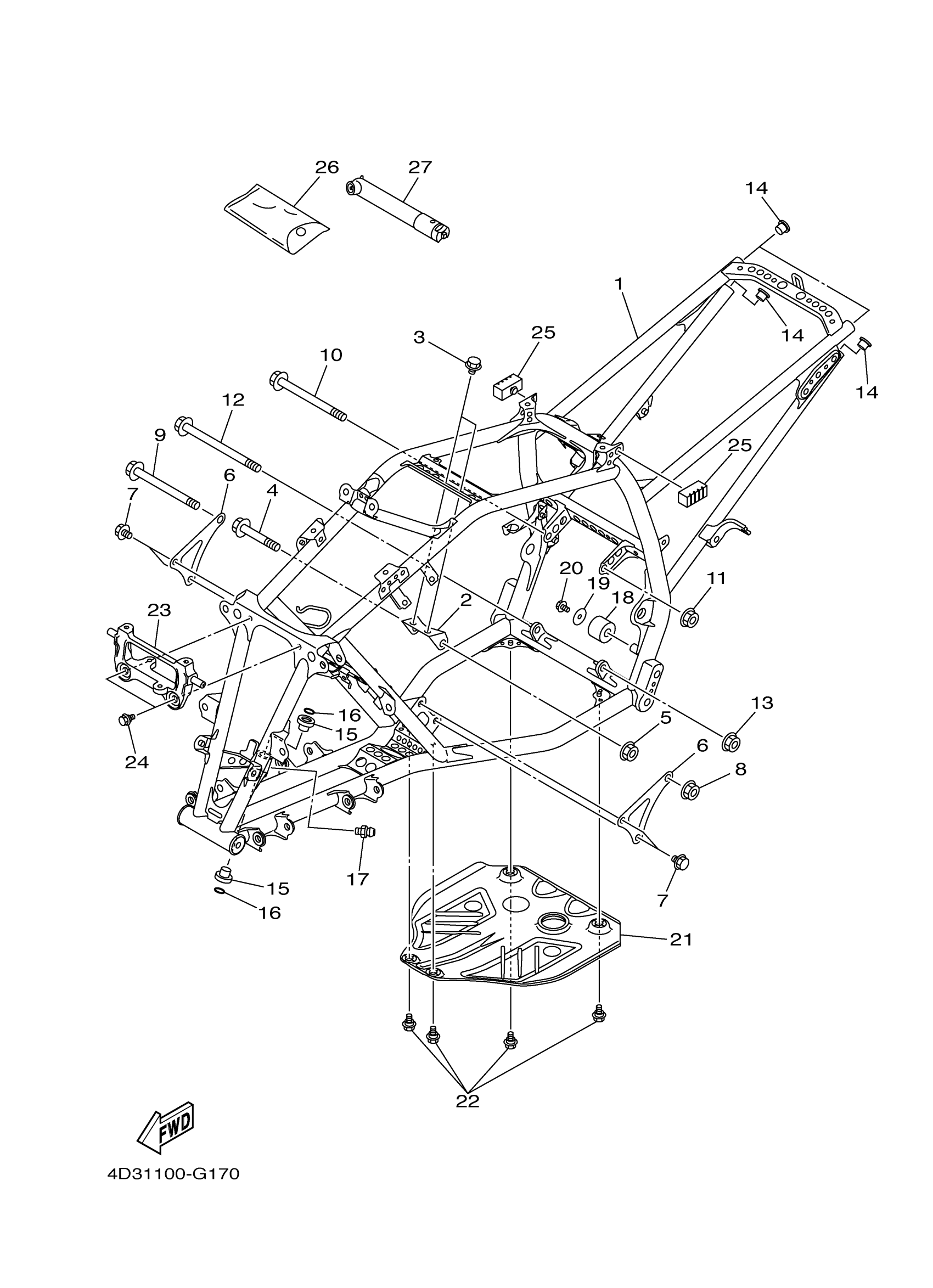

Yamaha YFM25RBW (RAPTOR 250) 1BTF0 2012 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4D3-21110-10-P0

Unavailable

2

STAY, ENGINE 2

4D3-21315-00-00

$17.23

3

BOLT, FLANGE

95817-08014-00

$1.81

4

BOLT, FLANGE

90105-10221-00

$5.15

5

NUT, S/L FLANGE

95602-10200-00

$2.14

6

STAY, ENGINE 3

4D3-21316-00-00

$12.21

7

BOLT, FLANGE

95817-08014-00

$1.81

8

BOLT, FLANGE

90105-10220-00

$8.68

9

NUT, S/L FLANGE

95602-10200-00

$2.14

10

BOLT, FLANGE

90105-10219-00

$5.36

11

NUT, S/L FLANGE

95602-10200-00

$2.14

12

BOLT, FLANGE

90105-10214-00

$8.65

13

NUT, S/L FLANGE

95602-10200-00

$2.14

14

PLUG(55K)

90338-16148-00

$9.25

15

BUSH, SOLID (J22)

90381-15040-00

$21.97

16

O-RING (22U)

93210-15566-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

$7.40

18

TENSIONER

4D3-22178-00-00

Unavailable

19

WASHER, PLATE

90201-08054-00

Unavailable

20

BOLT, FLANGE

95817-08012-00

Unavailable

21

PROTECTOR, ENGINE

4D3-21471-00-00

Unavailable

22

BOLT

90109-06172-00

Unavailable

23

STAY 2

4D3-2137G-00-00

Unavailable

24

BOLT

90109-06172-00

Unavailable

25

PAD, SEAT

3C3-24741-00-00

Unavailable

26

TOOL KIT

4D3-28100-01-00

Unavailable

27

GAUGE, AIR

1NV-2811A-01-00

Unavailable
