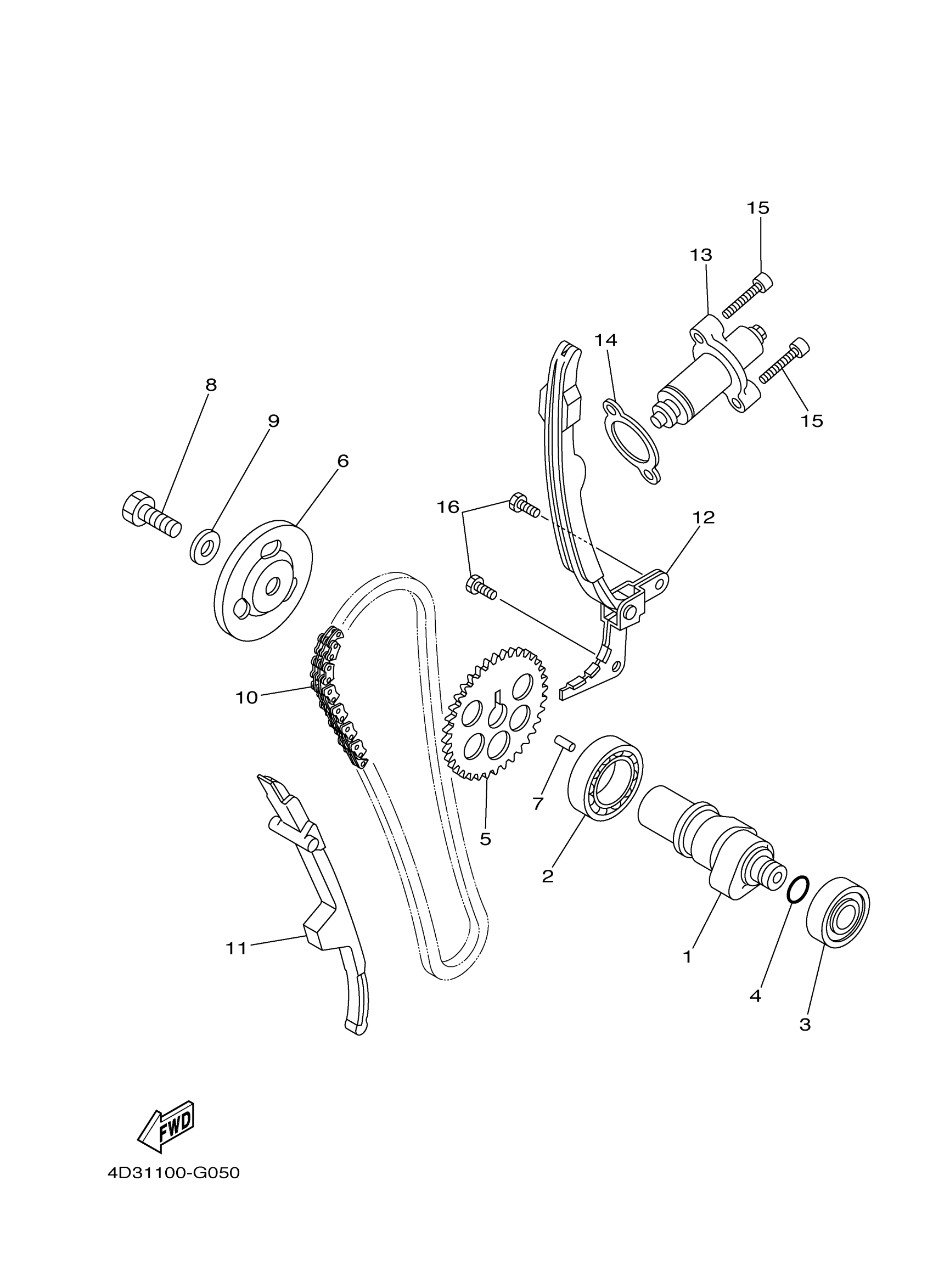

Yamaha YFM25RBL (RAPTOR 250) 1BTF 2012 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT 1

1S4-12171-00-00

$184.08

BEARING(1FF)

93306-00519-00

$31.24

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$21.28

O-RING (4G0)

93210-11453-00

$5.86

SPROCKET, CAM CHAIN

5XT-12176-00-00

$43.60

PLATE, BREATHER 2

4KB-11145-00-00

$10.18

PIN,DOWEL (603)

93604-10011-00

$5.10

BOLT

90101-10016-00

$3.58

WASHER, PLATE (3L6)

90201-10774-00

$6.25

CHAIN

94582-19104-00

$14.64

GUIDE, STOPPER 1

5BP-12231-01-00

$55.43

GUIDE, STOPPER 2

5XT-12241-02-00

$35.41

TENSIONER ASSY, CAM CHAIN

5XT-12210-00-00

$72.06

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.57

BOLT,SOCKET

91317-06025-00

$2.05

BOLT

97012-06014-00

$6.25
