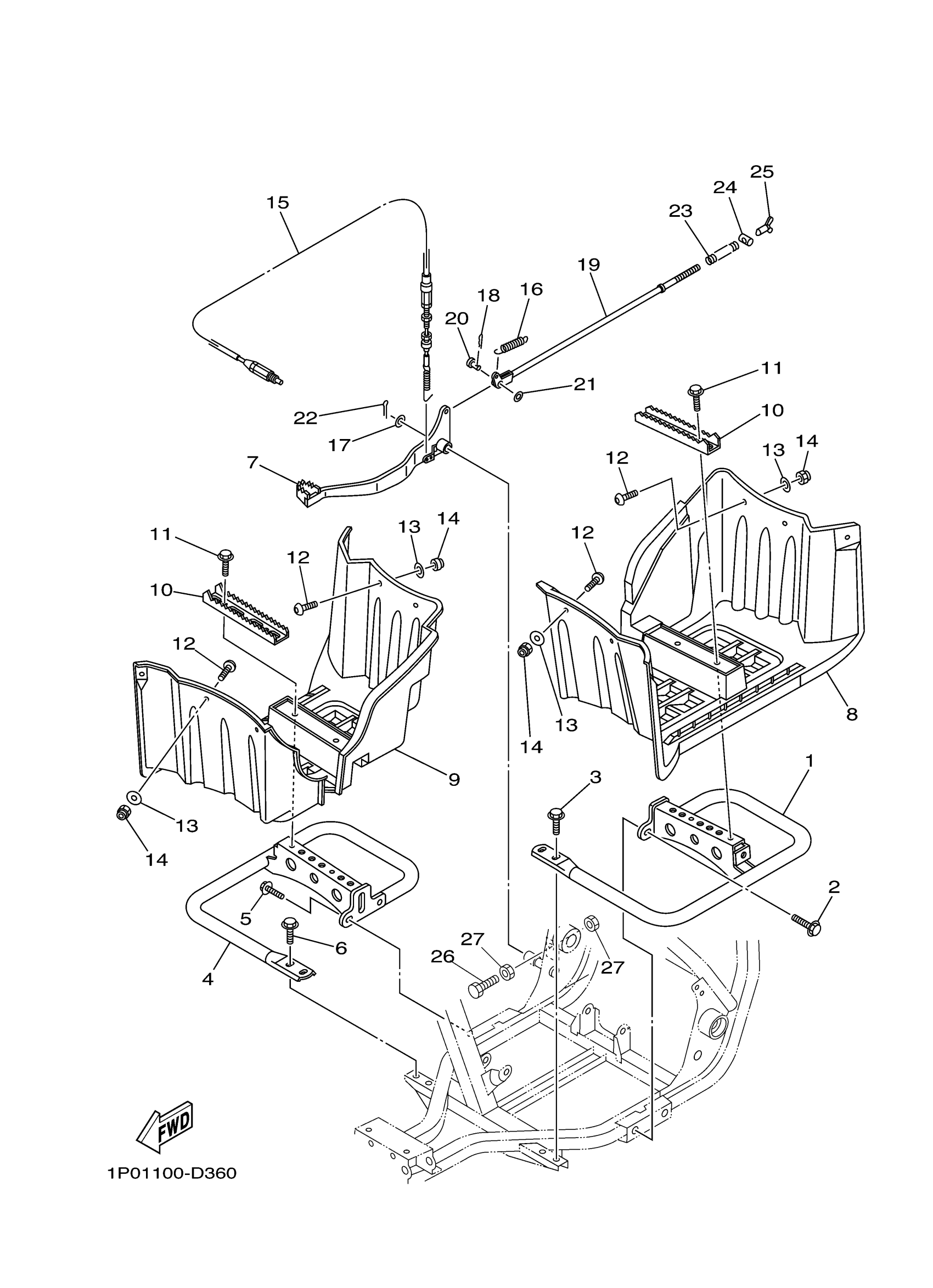

Yamaha YFM25BYB (BIG BEAR 250) 1P0H 2009 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST 1

1P0-F7452-00-00

Unavailable

2

BOLT, FLANGE

95817-10020-00

$5.10

3

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

4

BRACKET, FOOTREST 2

1P0-F7462-00-00

Unavailable

5

BOLT, FLANGE

95817-10020-00

$5.10

6

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

7

PEDAL, BRAKE

1P0-F7211-00-00

Unavailable

8

COVER 1

1P0-F7453-00-00

Unavailable

9

COVER 2

1P0-F7463-00-00

Unavailable

10

ARM 1

1P0-F741A-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$1.49

12

SCREW(3YF)

90149-05299-00

$3.52

13

WASHER, PLATE

90201-05042-00

$2.77

14

NUT, NYLON

95707-05300-00

$2.74

15

CABLE, CONTROL 2

1P0-2637F-11-00

Unavailable

16

SPRING, TENSION (4K0)

90506-18224-00

$4.20

17

WASHER, PLATE

90201-15018-00

$6.32

18

PIN, COTTER

91402-40030-00

$5.25

19

ROD, BRAKE

4XE-27231-00-00

$22.80

20

PIN, CLEVIS (3X3)

90240-06076-00

$6.17

21

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

22

PIN, COTTER (648)

91490-20015-00

$1.85

23

SPRING, (180-27236-00)

90501-10245-00

$6.17

24

PIN 1562723700

90249-12008-00

$4.70

25

NUT, AJUSTING

20E-26343-00-00

$22.28

26

BOLT, HEXAGON

97017-06020-00

$2.55

27

NUT(JN5)

95317-06700-00

$6.69
