Description

Price

1

10X8 STEEL RIM REAR BLACK

4XE-F5390-31-00

Unavailable

1

REAR WHEEL COMP.

4XE-F5390-50-00

Unavailable

2

TIRE (AT 22X10-10, M-906)

94110-10800-00

Unavailable

3

VALVE, RIM

93900-00810-00

$2.35

4

COLLAR, WHEEL

5ND-F5383-11-00

$57.53

5

BOLT

1P0-F5411-00-00

$1.77

6

10X8 STEEL RIM REAR BLACK

4XE-F5390-31-00

Unavailable

6

REAR WHEEL COMP.

4XE-F5390-50-00

Unavailable

7

TIRE (AT 22X10-10, M-906)

94110-10800-00

Unavailable

8

VALVE, RIM

93900-00810-00

$2.35

9

BEARING

93306-008Y1-00

$28.08

10

OIL SEAL

93106-47040-00

$16.62

11

COVER, HUB DUST

4SH-25367-01-00

$40.55

12

OIL SEAL (4H7)

93101-35097-00

$17.78

13

BEARING

93306-278Y0-00

$42.76

14

PLATE, BRAKE SHOE

5VH-F5321-11-00

$80.66

15

CAMSHAFT

5VH-F5351-01-00

$11.09

16

BRAKE SHOE SET

5VH-WF536-00-00

$38.80

17

SPRING, RETURN

5VH-F5333-01-00

$1.83

18

PLATE, INDICATOR

5FU-F533A-11-00

Unavailable

19

BOLT

90101-06824-00

$1.22

20

NUT, U FLANGE

95604-06200-00

$2.35

21

LEVER, CAMSHAFT

1P0-F5355-01-00

Unavailable

22

GASKET

5VH-F5898-00-00

$6.37

23

BOLT, CALIPER

5VH-F5818-00-00

$1.72

24

SEAL, CAMSHAFT

5VH-F5359-00-00

$3.94

25

PLATE 1

5VH-F539F-01-00

$3.28

26

PIN, COTTER

91490-25020-00

$2.94

27

SPRING, TENSION(4GB)

90506-16482-00

$5.94

28

RETAINER

4XE-G6513-00-00

$7.51

29

BOLT, FLANGE

90105-088A4-00

$3.52

30

AXLE, WHEEL

1P0-F5381-01-00

Unavailable

31

COLLAR(2NL)

90387-284T0-00

$14.37

32

O-RING(22F)

93210-26662-00

$5.86

33

DRUM ASSY WITH RING

5FU-F5310-10-00

Unavailable

34

DRUM ASSY WITH RING

5FU-F5310-10-00

Unavailable

35

COVER, PLATE

5FU-F5327-01-00

$25.91

36

SEAL, HUB DUST

5FU-F5319-10-00

$11.06

37

BOLT, FLANGE

95817-06012-00

$1.49

38

SEAL, DUST

5FU-F537Y-00-00

$35.73

39

COLLAR, WHEEL

5FU-F5377-11-00

$55.19

40

BOLT

1P0-F5411-00-00

$1.77

41

NUT

90179-10022-00

$3.25

42

WASHER, WHEEL

5FU-F5384-00-00

Unavailable

43

WASHER, PLATE

90201-16804-00

$9.78

44

CAP, WHEEL

52H-2512A-00-00

$19.86

45

NUT, CASTLE

90171-16002-00

$17.60

46

PIN, COTTER

91490-30030-00

$7.15

47

HOSE

90445-07810-00

$6.94

48

CLIP

90467-070A0-00

$6.25

49

CLIP (867)

90468-15020-00

$5.68

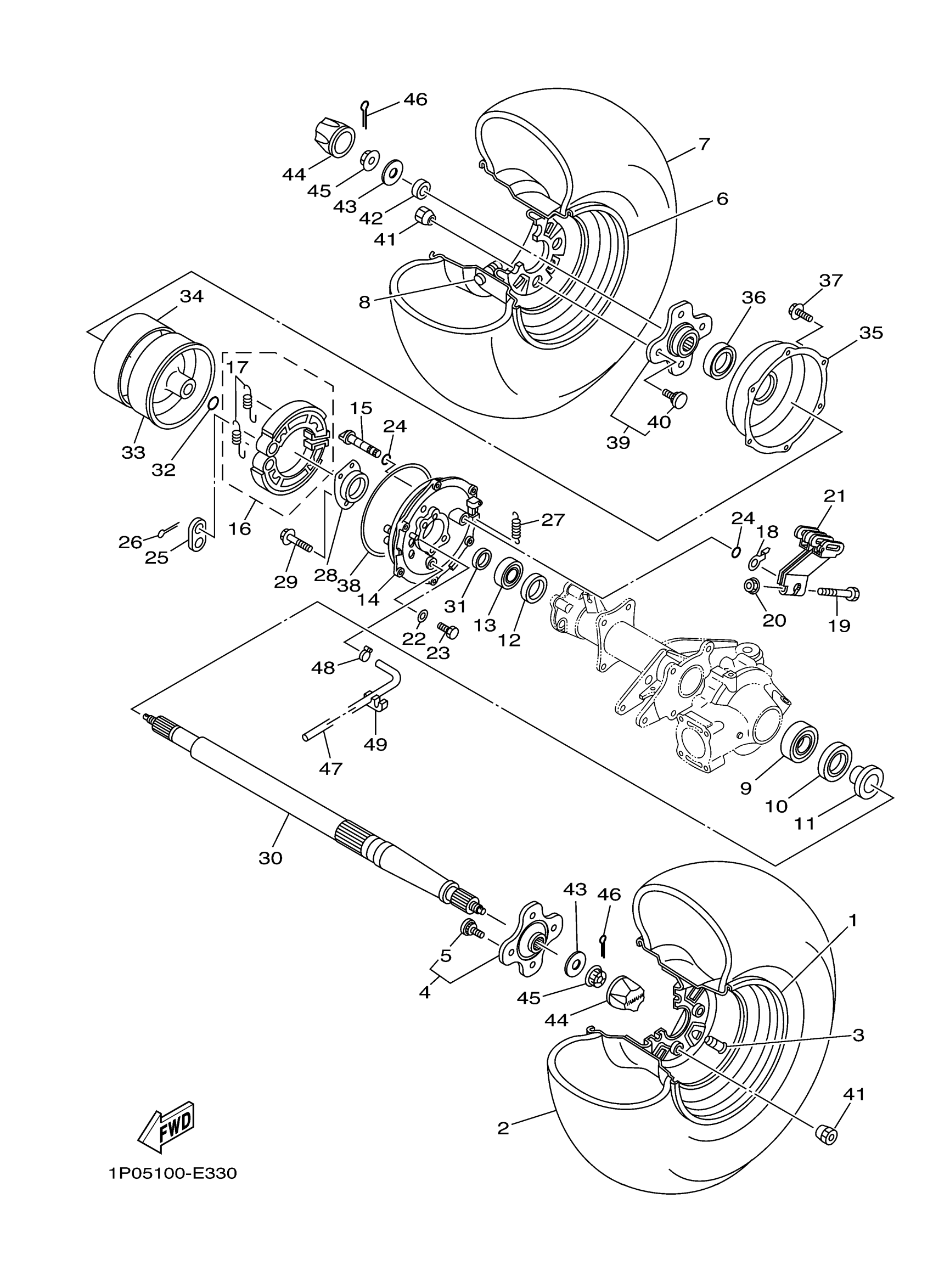

Yamaha YFM25BYB (BIG BEAR 250) 1P0H 2009 REAR WHEEL Diagram

10X8 STEEL RIM REAR BLACK

REAR WHEEL COMP.

TIRE (AT 22X10-10, M-906)

10X8 STEEL RIM REAR BLACK

REAR WHEEL COMP.

TIRE (AT 22X10-10, M-906)

PLATE, INDICATOR

LEVER, CAMSHAFT

AXLE, WHEEL

DRUM ASSY WITH RING

DRUM ASSY WITH RING

WASHER, WHEEL
