Description

Price

1

FUEL TANK COMP.

4XE-F4110-10-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$53.05

3

FUEL COCK ASSY 1

3JN-24500-10-00

$41.55

4

SEAL, COCK

3AJ-24534-01-00

$9.32

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

6

O-RING

4X8-24512-00-00

$7.51

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

SCREW

90149-06108-00

$0.95

9

GROMMET (4V1)

90480-18290-00

$7.02

10

COLLAR (36R)

90387-066J1-00

$6.86

11

BOLT, WITH WASHER

90119-06883-00

$1.20

12

GROMMET(38W)

90480-01400-00

$10.06

13

WASHER, PLATE

90201-06090-00

$5.17

14

COLLAR (1T2)

90387-07598-00

$4.83

15

BOLT, WITH WASHER

90119-06883-00

$1.20

16

PIPE, FUEL 1

1P0-24311-10-00

$22.29

17

CLIP

90467-100A1-00

$6.38

18

HOSE

90445-08809-00

$5.14

19

GROMMET

4BD-24339-00-00

$19.46

20

DAMPER, LOCATING 1

4XE-F4181-00-00

Unavailable

21

DAMPER, PLATE 1

4XE-F414H-00-00

Unavailable

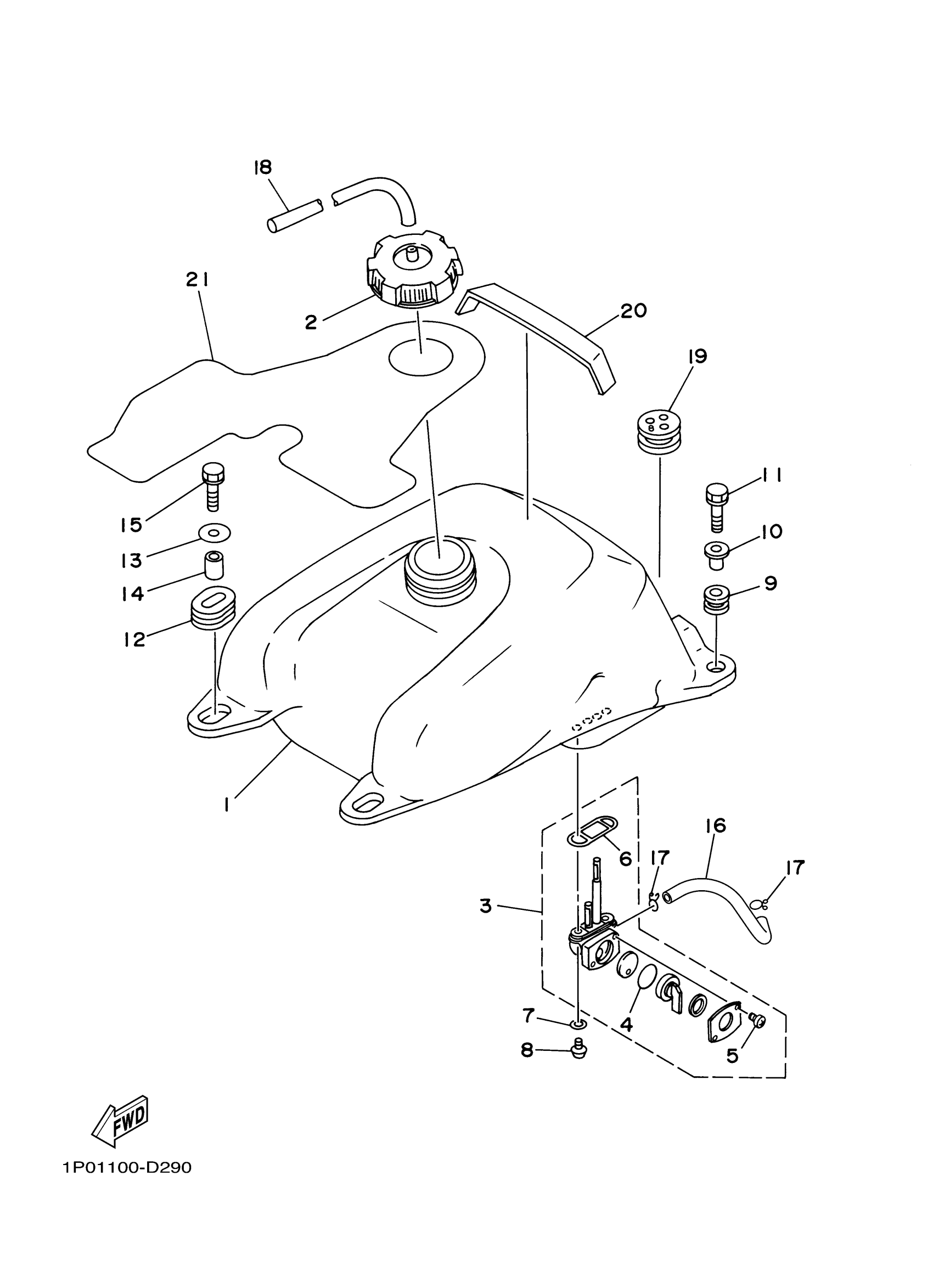

Yamaha YFM25BYB (BIG BEAR 250) 1P0H 2009 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER, LOCATING 1

DAMPER, PLATE 1
